TRACK SUSPENSION 2

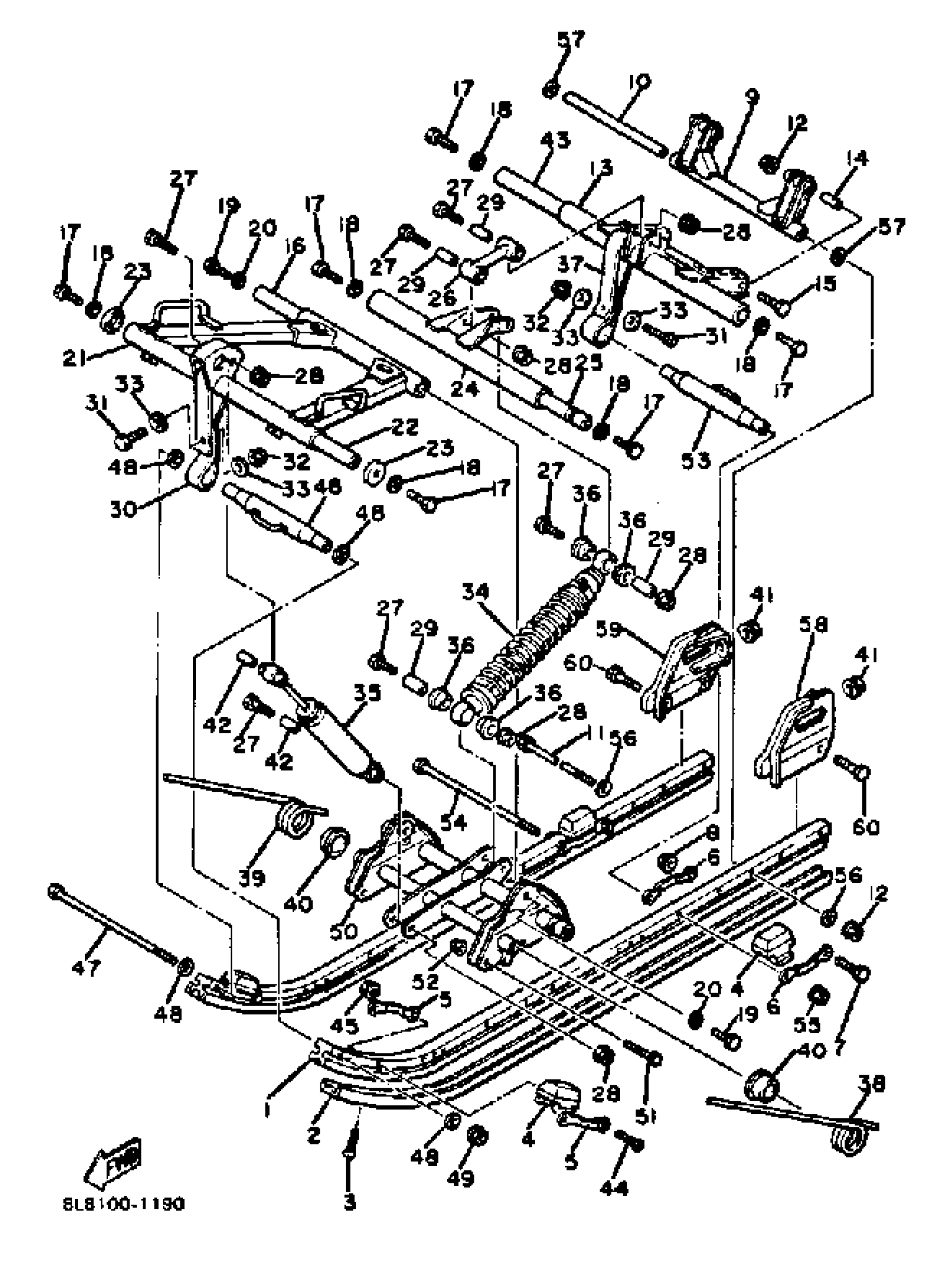

1982 Yamaha SS440F Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME, SLIDING 1
8L8-47411-01-00
2
RUNNER, SLIDING 1
8N8-47421-00-XX
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
4
DAMPER 1
8L8-47456-00-00
5
PLATE, DAMPER
885-47458-01-00
6
PLATE, DAMPER
8H8-47458-00-00
9
BRACKET 3
8L8-47417-00-00
11
BOLT (8M8)
90101-08374-00
13
ARM, PIVOT 2
8K2-47332-01-00
15
. BOLT
90101-08557-00
16
SHAFT 3
8K2-47485-00-00
18
WASHER, TTH
92907-10400-00
21
ARM, PIVOT 1
8K2-47331-00-00
23
SPACER
885-47341-00-00
24
BRACKET 5
8K2-47463-00-00
25
SHAFT 2
8K2-47475-00-00
26
BRACKET 6
8K2-47464-00-00
27
. BOLT
90101-08557-00
30
STOPPER 1
8E3-47495-00-00
34
SHOCK ABSORBER
8L8-47480-00-00
35
SHOCK ABSORBER 2
8K4-47481-00-00
36
COLLAR
90387-13758-00
38
SPRING, TORSION
90508-85471-00
39
SPRING, TORSION
90508-85472-00
40
COLLAR
90387-30759-00
42
COLLAR
90387-08775-00
43
SHAFT 2
88T-47475-00-00
46
BRACKET 1
899-47415-00-00
47
BOLT (8M8)
90101-08374-00
50
BRACKET 2
(8L8-47416-01-00)
53
COLLAR 1
8L8-47469-00-00
54
BOLT (8M8)
90101-08374-00
57
WASHER (1T1)
90201-08649-00
58
FRAME, SLIDING 2
8L8-47412-00-00
59
FRAME, SLIDING 3
8L8-47413-00-00
60
BOLT, WITH WASHER
90119-08008-00
