1982 Yamaha SS440F Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

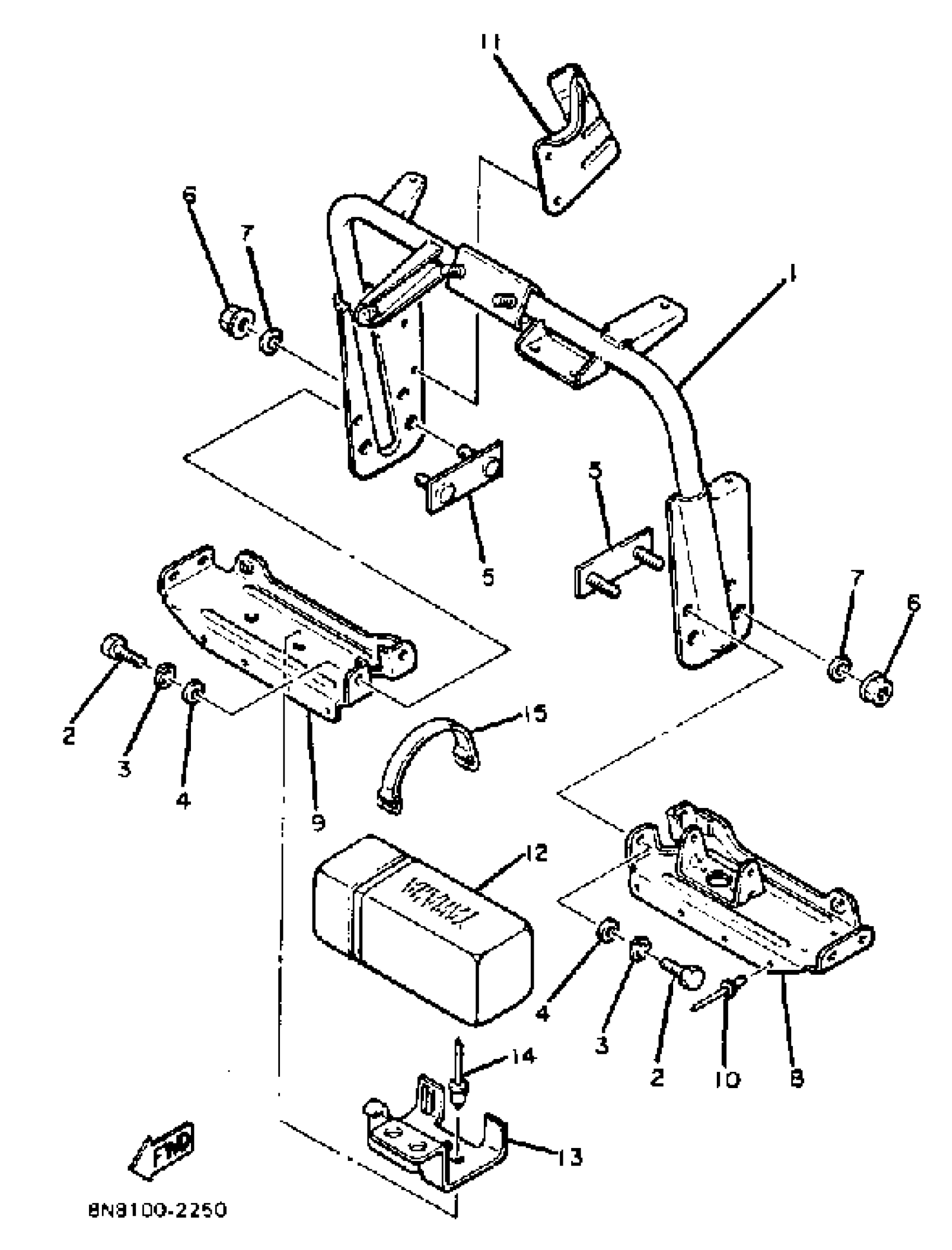

1982 Yamaha SS440F Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8K4-23871-00-00

1
Out of stock

2

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

4

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

5

BRACKET 10

(8K4-23878-00-00)

1
Out of stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER(6TC)

92907-08200-00

1
Out of stock

8

BRACKET 3

8K4-23883-00-00

1
Out of stock

9

BRACKET 4

8L8-23884-00-00

—

$4.28

In stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

BRACKET 6

8K4-23886-00-00

1
Out of stock

12

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

1
Out of stock

13

BRACKET, TL BX FTNG

(8N8-21945-00-00)

1
Out of stock

13

BRACKET, TL BX FTNG (8N8-21945-01)

8U5-21945-00-00

1
Out of stock

14

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

15

BAND, BATTERY

4J2-82131-01-00

—

$24.15

In stock
← Steering C - D - I - Magneto →
