1982 Yamaha SS440F Fuel Tank Diagram

← All diagrams

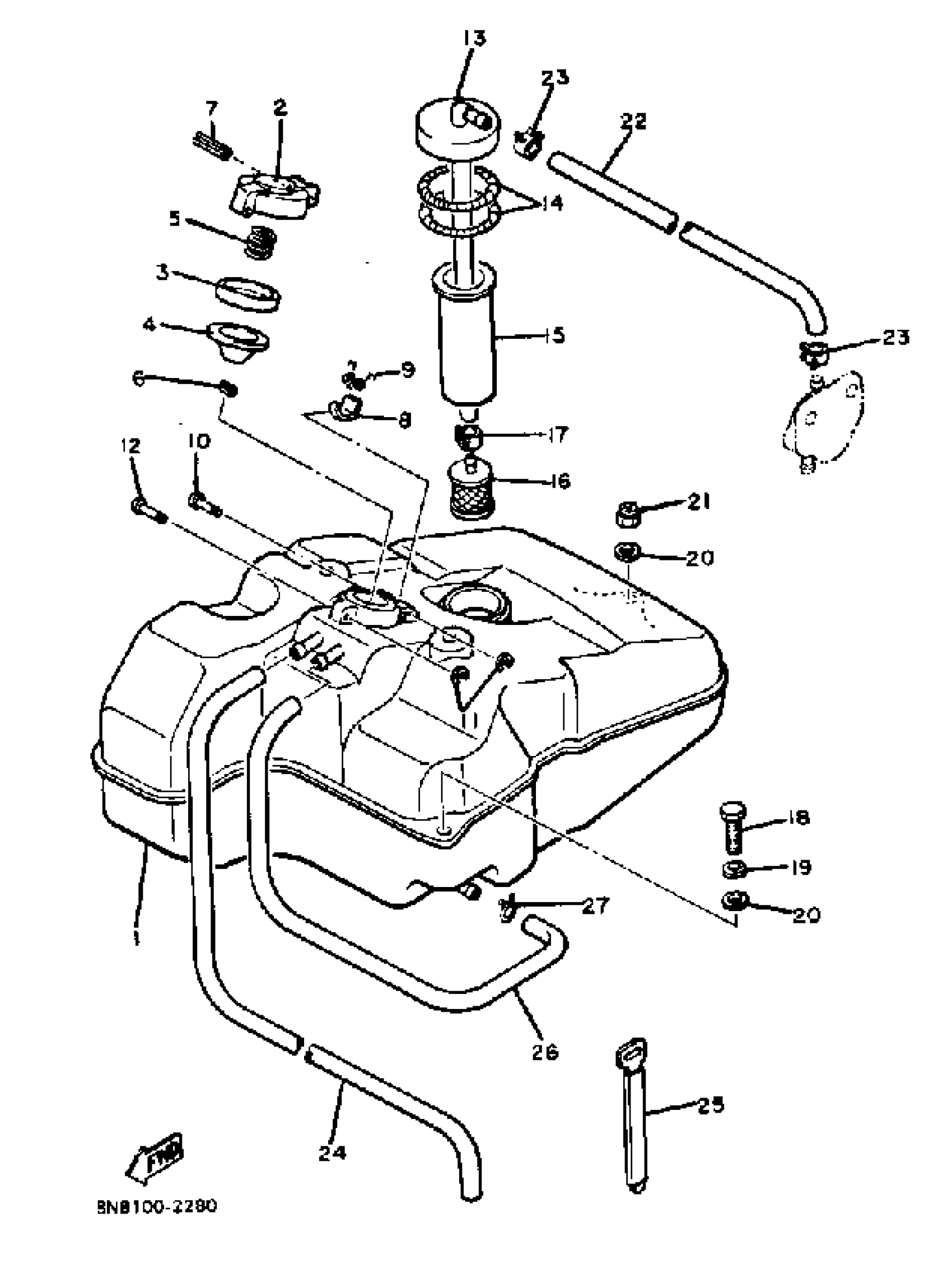

Find the part on the Fuel Tank diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha SS440F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK (8K4-24111-01)

86P-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

PIPE, SUCTION 1

83R-24335-00-00

1

$24.65

In stock

14

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

15

PIPE, SUCTION 2

8K4-24336-00-00

1
Out of stock

16

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

17

CLIP

90467-11028-00

1

$5.14

In stock

18

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

WASHER, PLATE (8L8)

90201-087A9-00

—

$3.74

In stock

21

NUT, NYLON

95717-08300-00

—

$2.57

In stock

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

23

CLIP

90467-11028-00

1

$5.14

In stock

24

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

25

BAND

341-26397-01-00

1
Out of stock

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

27

CLIP (8L2)

90467-08017-00

—

$7.51

In stock
