1982 Yamaha SS440F Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

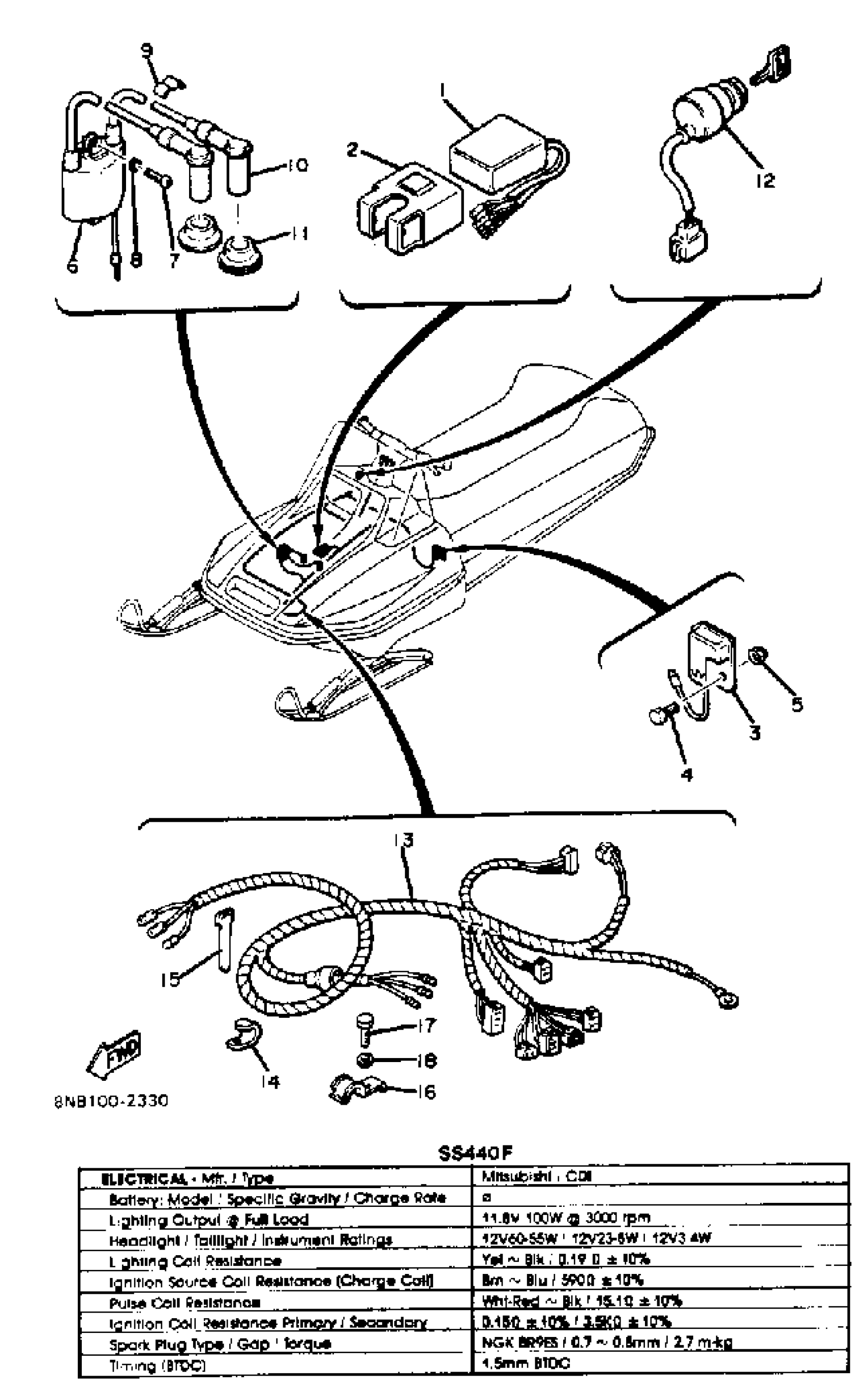

1982 Yamaha SS440F Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8N4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

IGNITION COIL ASSEMBLY

8K4-82310-11-00

1
Out of stock

7

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

11

SEAL

8G5-82372-00-00

1

$4.66

In stock

12

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

13

WIRE HARNESS ASSEMBLY

8L8-82590-20-00

1
Out of stock

14

CLAMP

90465-08028-00

1

$4.62

In stock

15

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

16

CLAMP

90462-06079-00

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
