1982 Yamaha SS440F Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

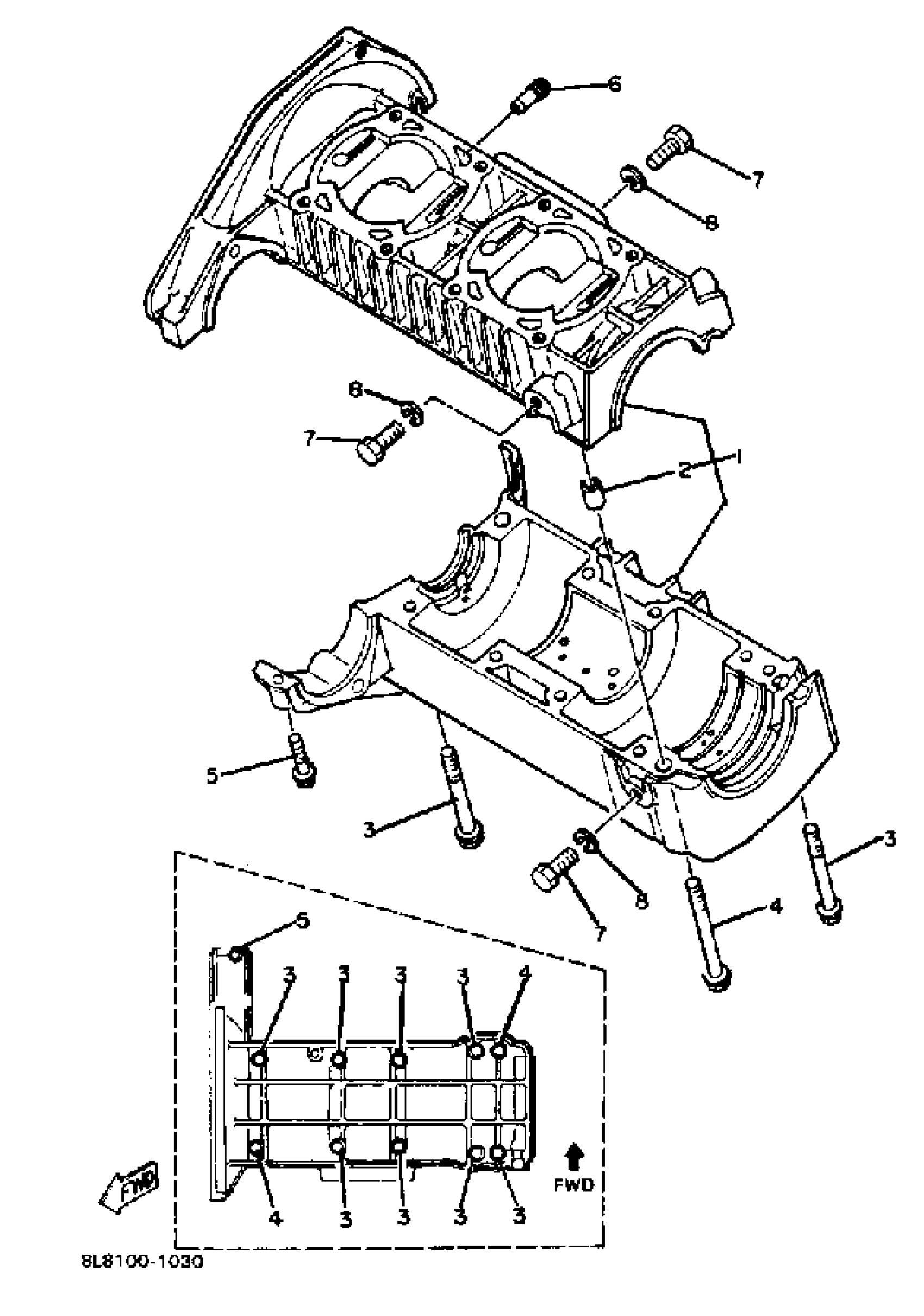

1982 Yamaha SS440F Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8H8-15109-08-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

4

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

5

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

6

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

7

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
