1982 Yamaha SS440F Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1982 Yamaha SS440F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

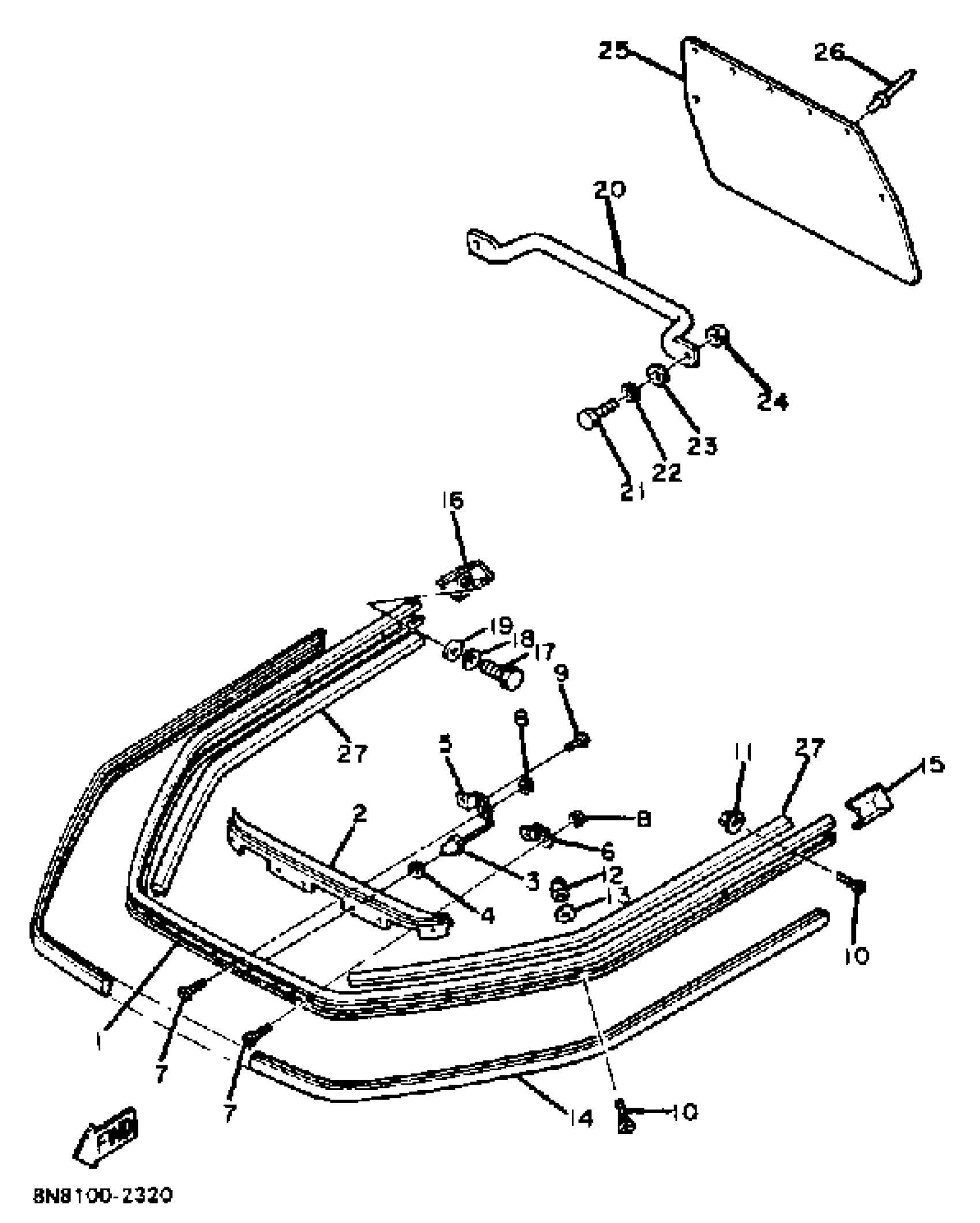

1982 Yamaha SS440F Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8N8-77511-00-00

1
Out of stock

2

BUMPER, FRONT 2

8N8-77512-00-00

1
Out of stock

3

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BRACKET, FRONT L (L.H)

8N8-77531-00-00

1
Out of stock

6

BRACKET, FRONT R (R.H)

8N8-77532-00-00

1
Out of stock

7

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

8

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

9

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

10

SCREW, FLAT

98707-06014-00

1
Out of stock

11

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

12

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

BUSH, RUBBER 2

8N8-77516-00-00

1
Out of stock

15

END, BUMPER

8N8-77523-00-00

1
Out of stock

16

END, BUMPER

8N8-77524-00-00

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

BUMPER, REAR 1

8E7-77541-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-08020-00

—
Out of stock

22

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

23

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

FLAP

8V8-77595-00-00

1
Out of stock

26

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

27

BUSH, RUBBER 1

8K4-77515-01-00

1
Out of stock
