1981 Yamaha SS440E SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

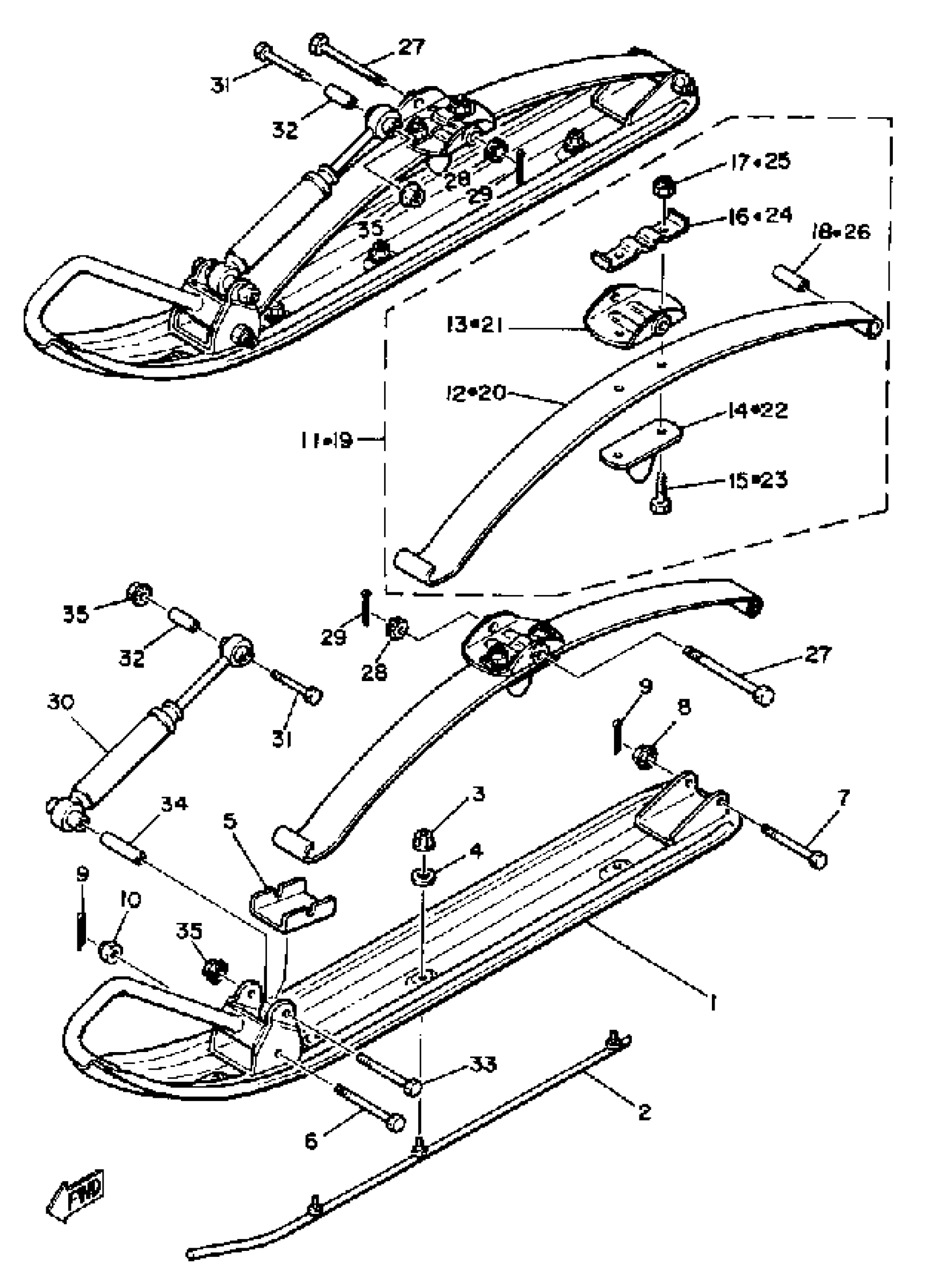

1981 Yamaha SS440E SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8K4-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

8K4-23731-00-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER(6TC)

92907-08200-00

1
Out of stock

5

PLATE, WEAR 1

8K4-23735-00-00

1
Out of stock

6

1

$8.14

In stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

8

NUT, NYLON

95717-08300-00

1

$2.57

In stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

NUT, U

95617-08100-00

1

$6.78

In stock

11

SPRING ASSEMBLY 1

8K4-23760-01-00

1
Out of stock

12

. LEAF 1

8K4-23761-00-00

1
Out of stock

13

. SADDLE 1

8K4-23766-00-00

1
Out of stock

14

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

15

. BOLT

90109-105E7-00

1
Out of stock

16

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

18

COLLAR

90387-08478-00

1
Out of stock

19

SPRING ASSEMBLY 2

8K4-23770-01-00

1
Out of stock

20

. LEAF 1

8K4-23761-00-00

1
Out of stock

21

. SADDLE 1

8K4-23766-00-00

1
Out of stock

22

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

23

. BOLT

90109-105E7-00

1
Out of stock

24

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

25

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

26

COLLAR

90387-08478-00

1
Out of stock

27

BOLT, WITH HOLE

90102-12036-00

1
Out of stock

28

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

29

PIN, COTTER

91490-30030-00

—

$7.15

In stock

30

SHOCK ABSORBER ASSEMBLY

8V8-23350-00-00

1
Out of stock

31

BOLT, HEXAGON

97017-08055-00

—

$6.88

In stock

32

COLLAR (878)

90387-08262-00

—

$9.02

In stock

33

BOLT, HEXAGON

97017-08075-00

—
Out of stock

34

COLLAR (864)

90387-08224-00

—

$7.52

In stock

35

NUT, NYLON

95717-08300-00

1

$2.57

In stock
