1980 Yamaha SS440D Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

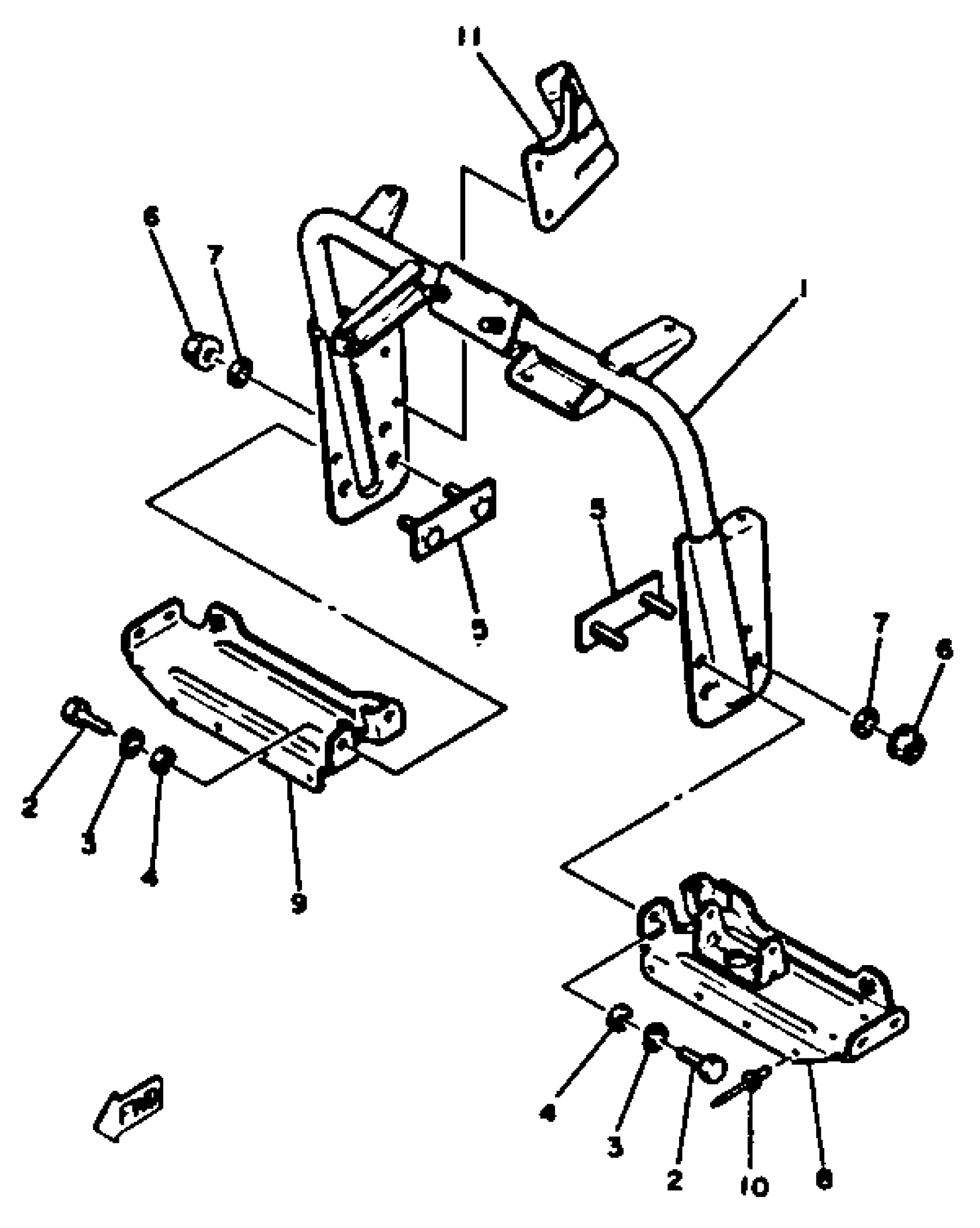

1980 Yamaha SS440D Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8K4-23871-00-00

1
Out of stock

2

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

4

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

5

BRACKET 10

8K-42387-80-00

1
Out of stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER(6TC)

92907-08200-00

1
Out of stock

8

BRACKET 3

8K-42388-30-00

1
Out of stock

9

BRACKET 4

8K-42388-40-00

1
Out of stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

BRACKET 6

8K4-23886-00-00

1
Out of stock
