1971 Yamaha SS433 Tail Lamp Diagram

← All diagrams

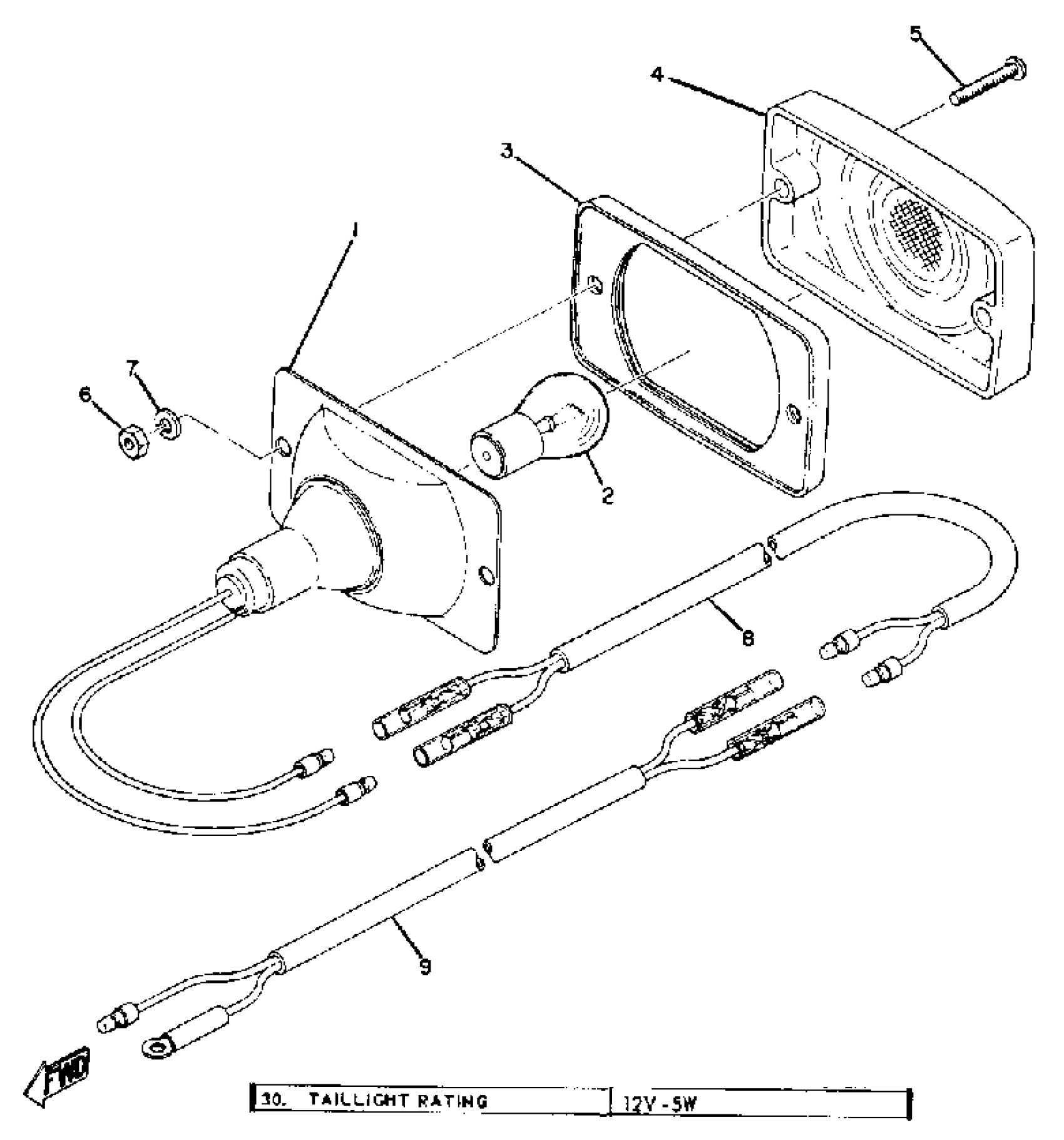

Find the part on the Tail Lamp diagram for your 1971 Yamaha SS433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SS433 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(809-84710-00-00)

1
Out of stock

1

BASE, TAILLIGHT

(809-84711-00-00)

1
Out of stock

2

. BULB

809-84714-00-00

1
Out of stock

3

. SEAT, BASE

806-84712-00-00

1
Out of stock

4

LENS, TAILLIGHT

(806-84721-00-00)

1
Out of stock

5

. SCREW, LENS FITTING

806-84724-00-00

1
Out of stock

6

NUT(6TA)

95307-04600-00

1

$6.69

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

CORD, TAILLIGHT

(809-84717-00-00)

1
Out of stock

9

CORD, TAILLIGHT

(809-84727-00-00)

1
Out of stock
