1971 Yamaha SS433 Steering Diagram

← All diagrams

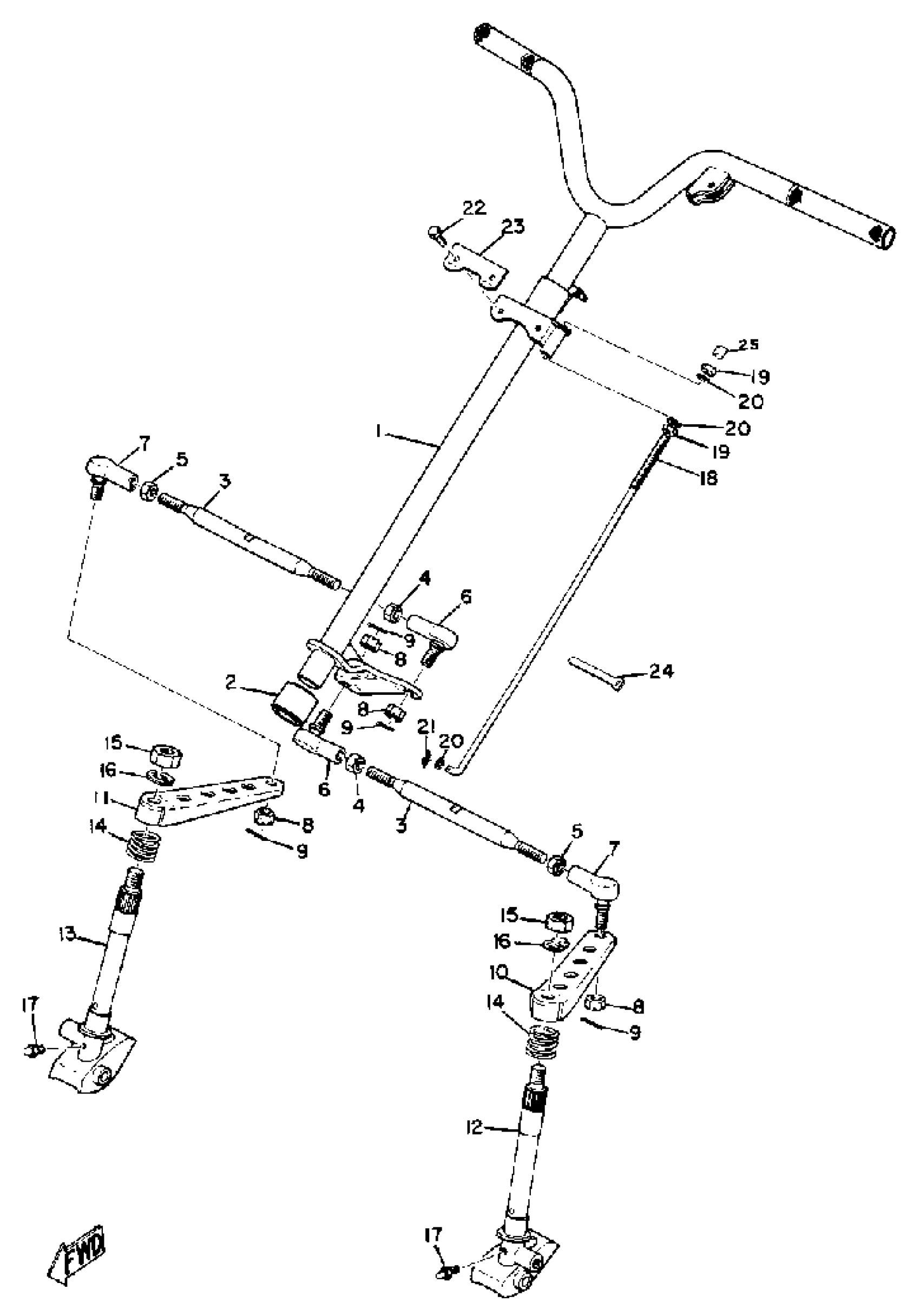

Find the part on the Steering diagram for your 1971 Yamaha SS433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SS433 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

813-23811-00-00

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

ROD, STEERING RELAY

810-23821-01-00

1
Out of stock

4

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

5

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

6

JOINT, UNIVERSAL 1

(806-23841-91-00)

1
Out of stock

7

JOINT, UNIVERSAL 2

806-23845-00-00

1
Out of stock

8

NUT, CASTLE

90171-10002-00

1
Out of stock

9

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

10

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

11

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

12

COLUMN, SKI 1

818-23853-00-00

1
Out of stock

13

COLUMN, SKI 2

818-23854-00-00

1
Out of stock

14

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

15

NUT, HEXAGON

95337-12600-00

1
Out of stock

16

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

17

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

18

BAR, TENSION

813-23861-00-00

1
Out of stock

19

NUT(650)

95380-06700-00

—

$6.17

In stock

20

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

21

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

22

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

23

NO LONGER AVAILABLE

810-23894-00-00

1
Out of stock

24

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

25

CAP, TENSION BAR

(818-23862-00-00)

1
Out of stock
