1971 Yamaha SS433 Seat & Bumper Diagram

← All diagrams

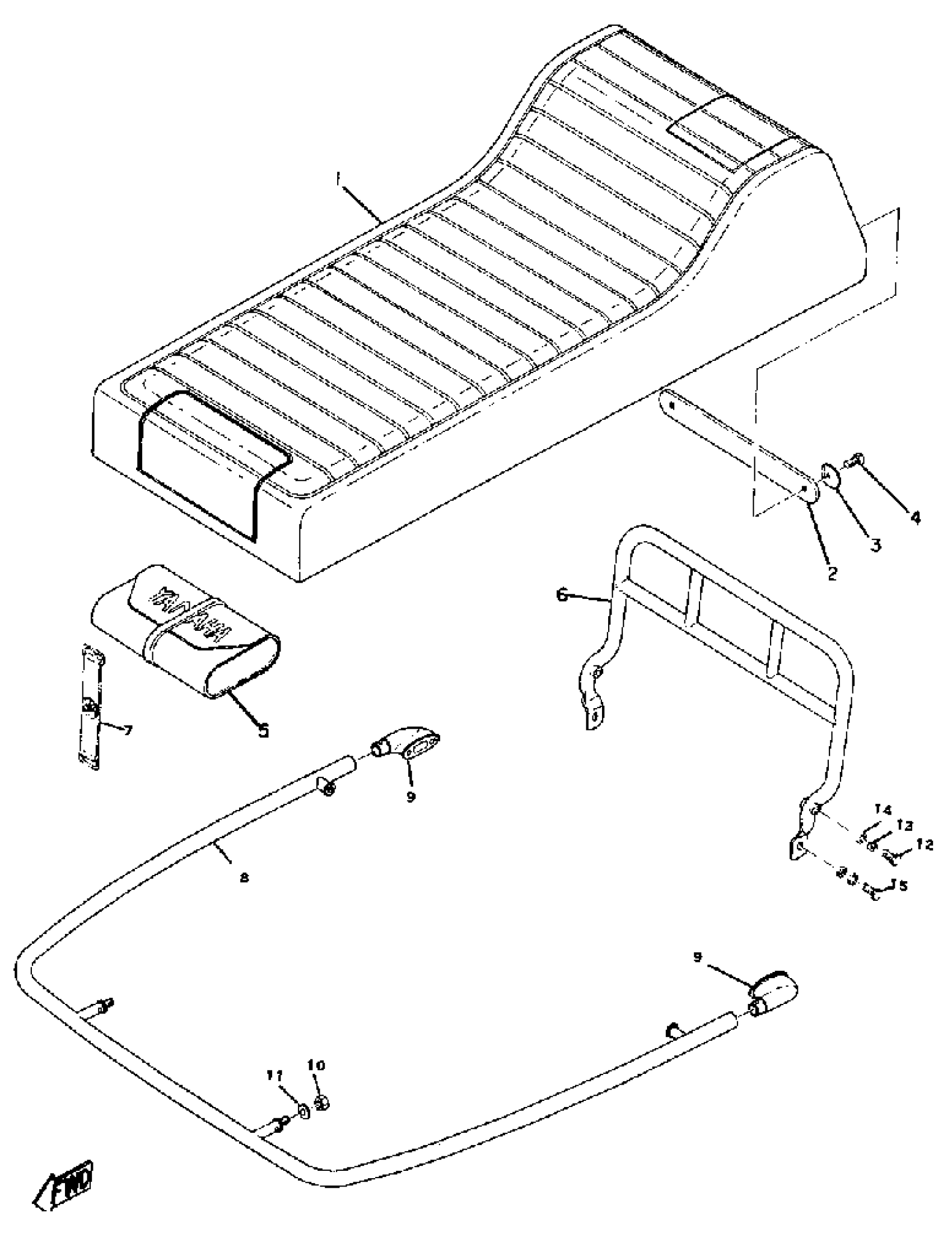

Find the part on the Seat & Bumper diagram for your 1971 Yamaha SS433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SS433 Seat & Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(813-24730-00-00)

1
Out of stock

1

COVER, DOUBLE SEAT

(813-24731-00-00)

1
Out of stock

2

WASHER, SEAT

(813-24746-00-00)

1
Out of stock

3

WASHER, LOCK

(90215-07064-00)

1
Out of stock

4

BOLT(7U8)

97080-06020-00

1
Out of stock

5

TOOL KIT

(806-28100-00-00)

1
Out of stock

6

BUMPER, REAR 1

(813-77541-00-00)

1
Out of stock

7

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

8

FRONT BUMPER (806-77510-00)

821-77510-00-00

1
Out of stock

9

END, BUMPER

(806-77523-00-00)

1
Out of stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT

97013-08045-00

—
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

15

BOLT(JA9)

90101-08691-00

—

$4.65

In stock
