1969 Yamaha SS396 Piping Diagram

← All diagrams

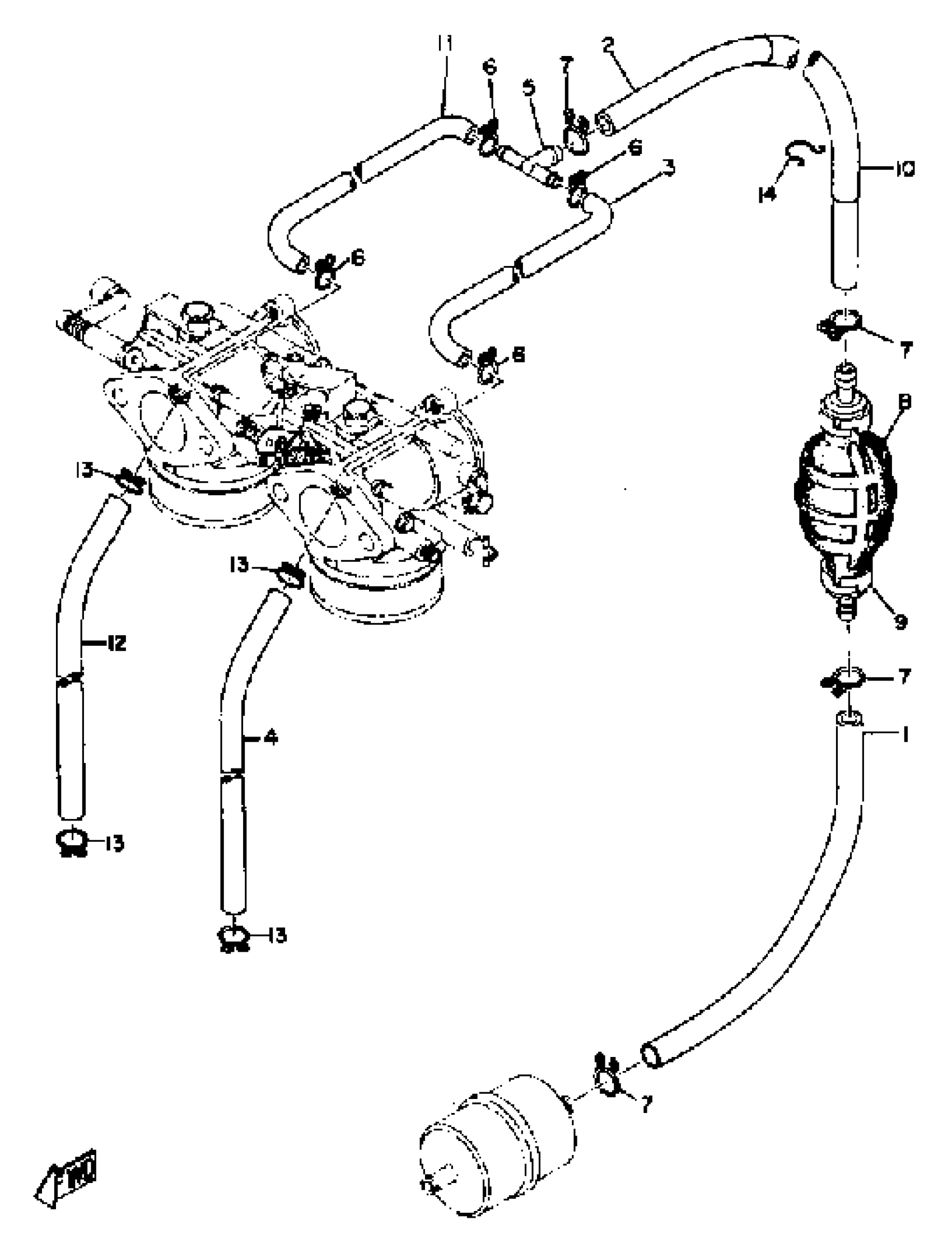

Find the part on the Piping diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SS396 Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

(90446-11022-00)

1
Out of stock

2

PIPE 2

(809-24312-00-00)

1
Out of stock

3

PIPE 3

(807-24313-00-00)

1
Out of stock

4

PIPE 6

(807-24316-00-00)

1
Out of stock

5

JOINT, PIPE (1)

807-24376-00-00

1

$4.68

In stock

6

CLAMP, HOSE

90460-09001-00

1
Out of stock

7

CLIP

90467-100A1-00

1
Out of stock

8

PRIMER PUMP ASSEMBLY

810-24360-00-00

1
Out of stock

9

BAND

(601-24353-00-00)

1
Out of stock

10

PIPE 11

(806-24322-00-00)

1
Out of stock

11

PIPE 7

807-24317-00-00

1
Out of stock

12

HOSE

(90445-10129-00)

1
Out of stock

13

CLIP

90467-090A2-00

1

$2.51

In stock

14

BAND 1

(806-24398-00-00)

1
Out of stock
