1969 Yamaha SS396 Head Lamp & Speedometer Diagram

← All diagrams

Find the part on the Head Lamp & Speedometer diagram for your 1969 Yamaha SS396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

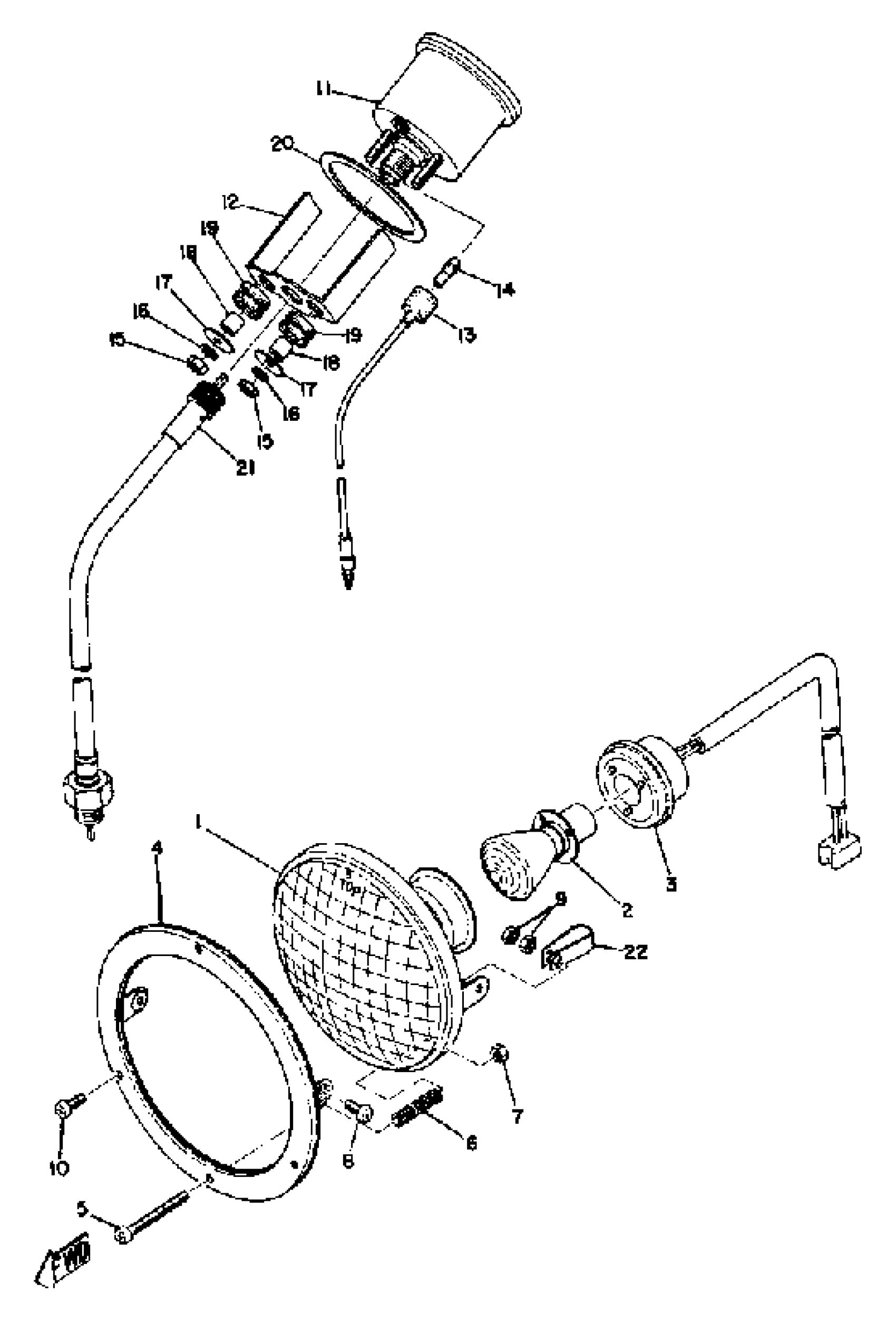

1969 Yamaha SS396 Head Lamp & Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

(806-84320-00-00)

1
Out of stock

1

HEADLIGHT UNIT ASSEMBLY

(809-84310-00-00)

1
Out of stock

2

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

3

. SOCKET

809-84312-00-00

1
Out of stock

4

. RIM, HEADLIGHT

806-84315-00-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

SPRING, SCREW

(207-84132-60-00)

1
Out of stock

7

NUT, ADJUST

(207-84134-61-00)

1
Out of stock

8

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

9

NUT(6L4)

95380-04700-00

—

$5.62

In stock

10

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

11

SPEEDOMETER ASSEMBLY

(809-83510-40-00)

1
Out of stock

12

PLATE, FITTING

(102-83514-00-00)

1
Out of stock

13

SOCKET, METER

(809-83536-40-00)

1
Out of stock

14

BULB

256-84347-00-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

18

COLLAR (3L6)

90387-06761-00

—

$6.88

In stock

19

DAMPER

(803-83523-00-00)

1
Out of stock

20

PLATE, FITTING

(803-83577-00-00)

1
Out of stock

21

SPEEDOMETER CABLE

(809-83550-00-00)

1
Out of stock

22

CLAMP

(809-82594-00-00)

1
Out of stock
