2002 Yamaha SRX700 (SRX700SG) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2002 Yamaha SRX700 (SRX700SG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

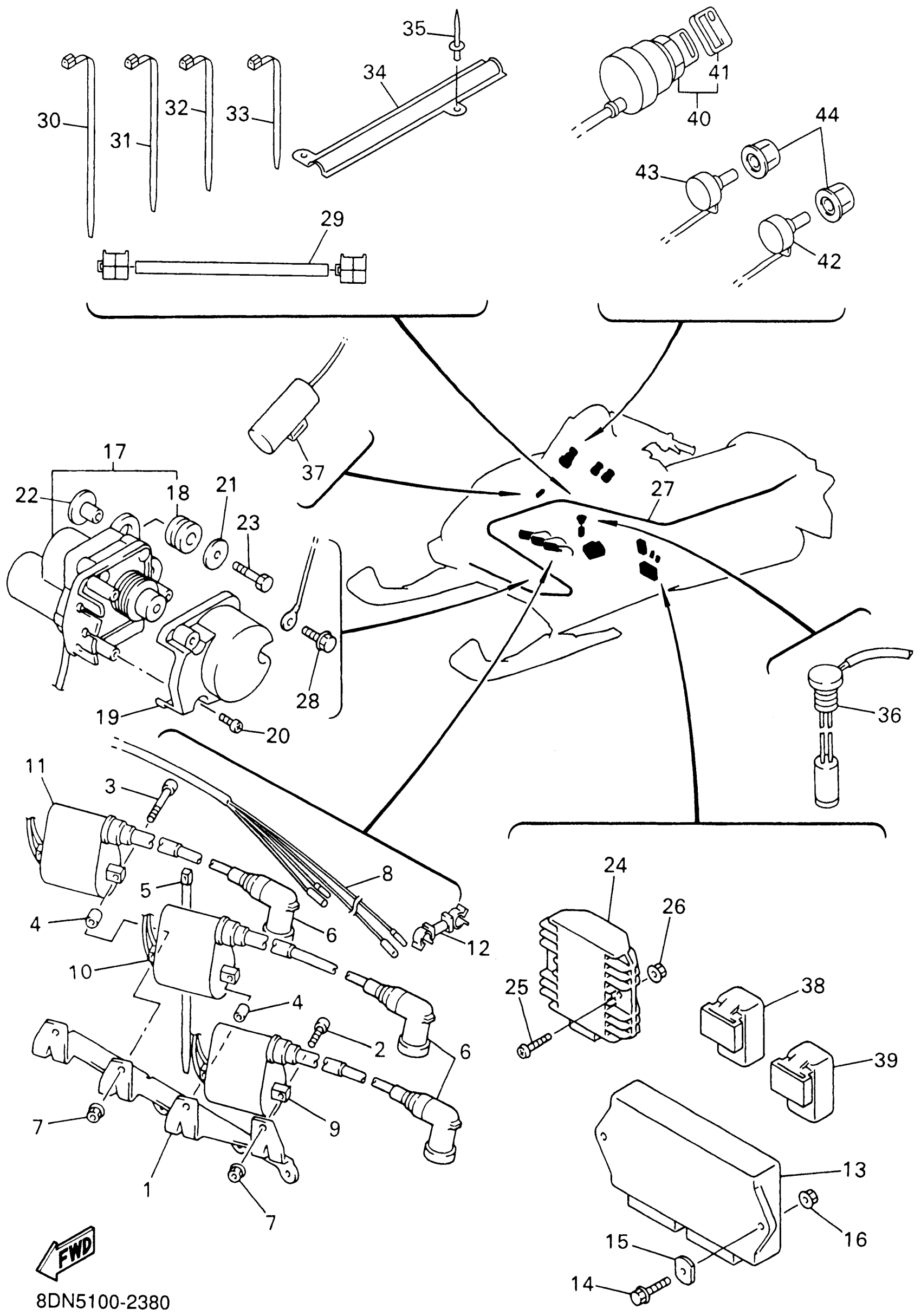

2002 Yamaha SRX700 (SRX700SG) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, IGNITION COIL

8DF-82316-00-00

1
Out of stock

2

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

3

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

4

COLLAR

90387-07020-00

1

$6.17

In stock

5

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

6

PLUG CAP ASSY

8DF-82370-00-00

1

$35.28

In stock

7

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

8

WIRE, SUB LEAD

8DM-82509-00-00

1
Out of stock

9

IGNITION COIL ASSY

8DF-82310-40-00

1
Out of stock

10

IGNITION COIL ASSY

8DF-82310-10-00

1
Out of stock

11

IGNITION COIL ASSY

8DF-82310-10-00

1
Out of stock

12

CLAMP

90464-08001-00

1
Out of stock

13

C.D.I. UNIT ASSY

8DN-85540-30-00

1
Out of stock

14

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

15

NUT,SPEC'L SHAPE

90179-06W01-00

1
Out of stock

16

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

17

SERVO MOTOR ASSY

8DF-85820-00-00

—

$486.71

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

COVER, SERVO MOTOR

8DF-85829-00-00

1
Out of stock

20

SCREW, PAN HEAD(3LA)

98517-05010-00

—

$3.52

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

COLLAR(52E)

90387-063G3-00

—
Out of stock

23

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

24

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

—
Out of stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

26

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

27

WIRE HARNESS ASSY

8DN-82590-20-00

1
Out of stock

28

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

29

WIRE, LEAD

8DM-8471G-00-00

1
Out of stock

30

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

31

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

32

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

33

CLAMP

90464-13077-00

—

$6.68

In stock

34

CLAMP, WIREHARNESS

8DN-21999-00-00

1
Out of stock

35

RIVET, BLIND(8CR)

90267-47186-00

—

$2.31

In stock

36

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

1

$44.61

In stock

37

CONDENSER, SMOOTHING

1NL-81965-01-00

—
Out of stock

38

RELAY ASSY

5DM-81950-01-00

—

$24.72

In stock

39

RELAY ASSY (29U-93)

29U-81950-93-00

—

$67.77

In stock

40

MAIN SWITCH ASSY

8DM-82510-00-00

1
Out of stock

41

CAP, KEY

526-82579-00-00

—

$6.72

In stock

42

RESISTOR, VARIABLE

8DM-87283-00-00

1
Out of stock

43

RESISTOR, VARIABLE

8DM-87283-10-00

1
Out of stock

44

KNOB, VARIABLE RESISTOR

8DM-87284-00-00

—

$23.82

In stock
