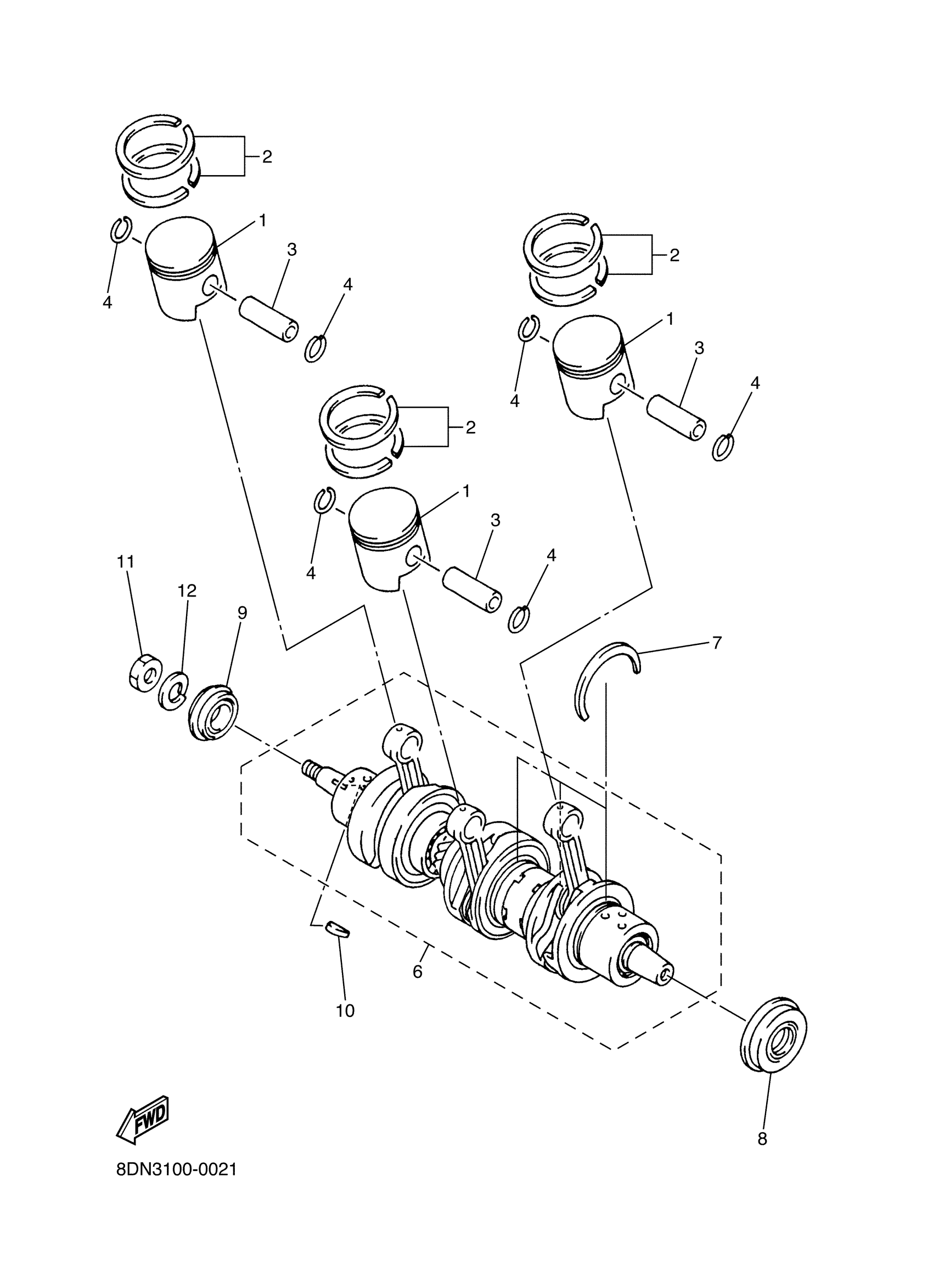

Yamaha SRX700SG (SRX700) 8DN50 2002 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8DN-11631-20-A0

$300.48

2

PISTON RING SET (STD)

8DN-11603-00-00

$45.93

3

PIN, PISTON

8J0-11633-00-00

$32.32

4

CIRCLIP (8H0)

93450-21053-00

$3.23

5

BEARING

93310-32009-00

$45.22

6

CRANKSHAFT ASSY

8DN-11400-00-00

Unavailable

7

CIRCLIP (1J7)

93440-72049-00

Unavailable

8

OIL SEAL

93103-34181-00

$46.61

9

OIL SEAL(82M)

93103-32153-00

$24.39

10

KEY, WOODRUFF (8R9)

90280-05033-00

$8.51

11

NUT

90170-16425-00

$6.17

12

WASHER(6TD)

92907-16600-00

Unavailable
