2000 Yamaha SRX700 Ohlins (SRX700SD) Starter Diagram

← All diagrams

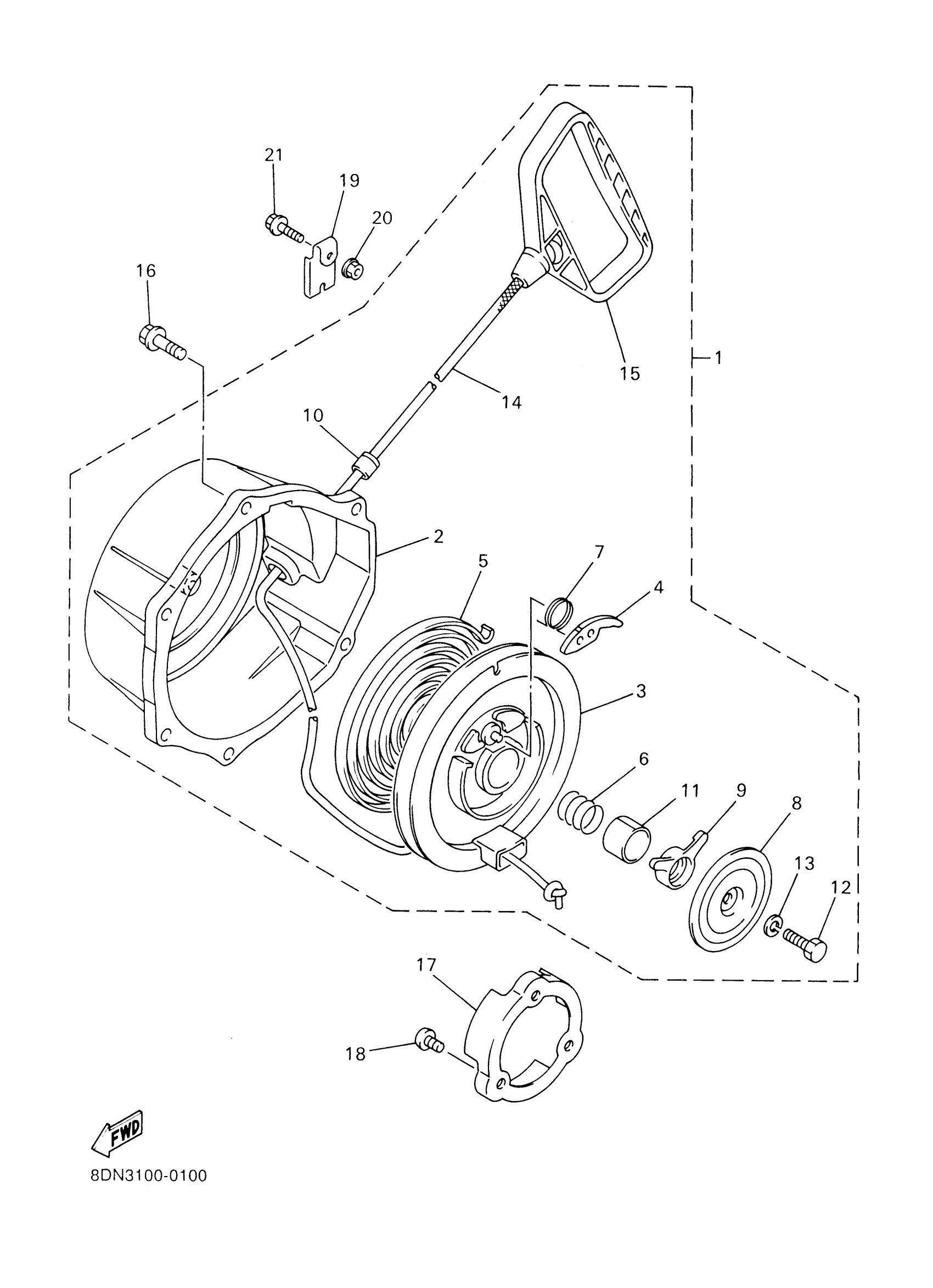

Find the part on the Starter diagram for your 2000 Yamaha SRX700 Ohlins (SRX700SD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SRX700 Ohlins (SRX700SD) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8DF-15710-01-00

1
Out of stock

2

CASE, STARTER

8DF-15711-01-00

1
Out of stock

3

DRUM, SHEAVE

8DF-15714-01-00

1
Out of stock

4

. PAWL, DRIVE

8CH-15741-00-00

1
Out of stock

5

. SPRING, STARTER

8DF-15713-00-00

1
Out of stock

6

SPRING, FRICTION

8DF-15715-00-00

—

$7.72

In stock

7

. SPRING

8CH-15767-00-00

1
Out of stock

8

. PLATE, DRIVE

8DF-15716-00-00

1
Out of stock

9

. GUIDE, CAM

8DF-15735-00-00

1
Out of stock

10

GUIDE, ROPE

8F3-15758-00-00

1

$17.09

In stock

11

. BUSH

8DF-15753-00-00

1
Out of stock

12

. BOLT

8DF-15768-00-00

1
Out of stock

13

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

14

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

1

$25.18

In stock

15

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

16

BOLT, FLANGE(4MY)

95027-08025-00

—
Out of stock

17

PULLEY, STARTER

8DF-15723-00-00

—

$41.46

In stock

18

BOLT, BUTTON HEAD

92017-08012-00

—
Out of stock

19

GUIDE, ROPE

8DF-15758-10-00

1
Out of stock

20

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

21

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock
