2000 Yamaha SRX700 Ohlins (SRX700SD) Engine Bracket Diagram

← All diagrams

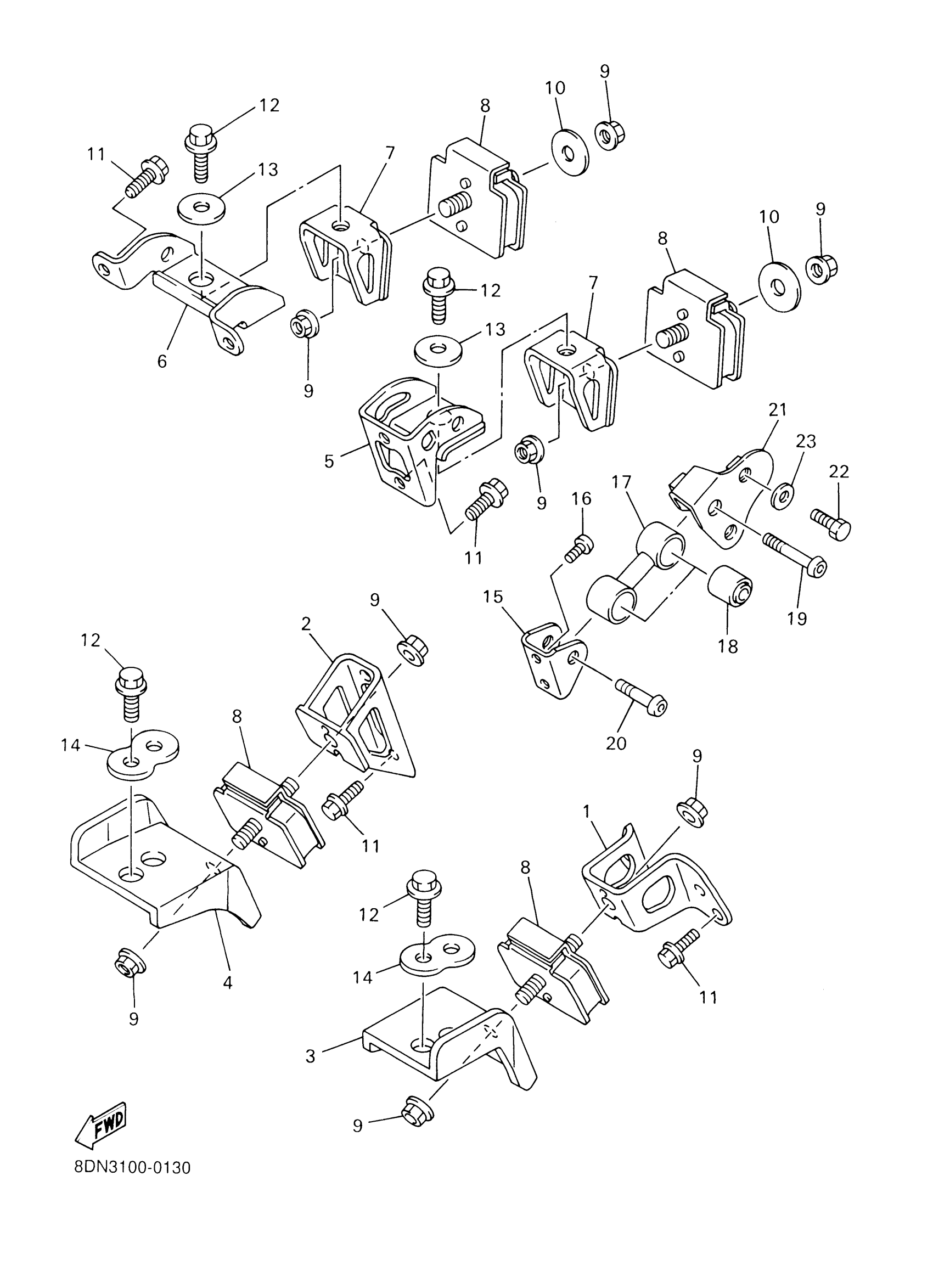

Find the part on the Engine Bracket diagram for your 2000 Yamaha SRX700 Ohlins (SRX700SD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SRX700 Ohlins (SRX700SD) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8DF-21415-00-00

—

$18.15

In stock

2

BRACKET, FRONT UPPER 2

8DF-21416-00-00

1
Out of stock

3

BRACKET, FRONT LOWER 1

8DF-21417-01-00

1
Out of stock

4

BRACKET, FRONT LOWER 2

8DF-21418-00-00

—

$34.05

In stock

5

BRACKET, REAR UPPER 1

8DF-21425-00-00

—

$43.82

In stock

6

BRACKET, REAR UPPER 2

8DF-21426-00-00

1
Out of stock

7

BRACKET, REAR LOWER 1

8CR-21427-01-00

1
Out of stock

8

DAMPER 2

8CH-21486-10-00

—

$131.34

In stock

9

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

10

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

11

BOLT, FLANGE(4LN)

95817-08025-00

1

$6.17

In stock

12

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

13

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

14

PLATE, ENGINE MOUNT

8DF-2145B-10-00

1
Out of stock

15

BRACKET 1

8DF-2148U-00-00

1
Out of stock

16

BOLT, BUTTON

92017-08014-00

—

$6.68

In stock

17

STAY, ENGINE 2

8DF-21315-00-00

—

$30.34

In stock

18

DAMPER, RUBBER 1

89A-21485-00-00

1
Out of stock

19

BOLT, BUTTON HEAD

92017-10045-00

—

$3.78

In stock

20

BOLT, BUTTON HEAD

92017-10035-00

1
Out of stock

21

BRACKET 2

8DF-2148V-00-00

1
Out of stock

22

BOLT, HEXAGON

97017-08020-00

—
Out of stock

23

WASHER, PLATE(3XP)

90201-086P8-00

—

$4.35

In stock
