2000 Yamaha SRX700 Ohlins (SRX700SD) Brake Diagram

← All diagrams

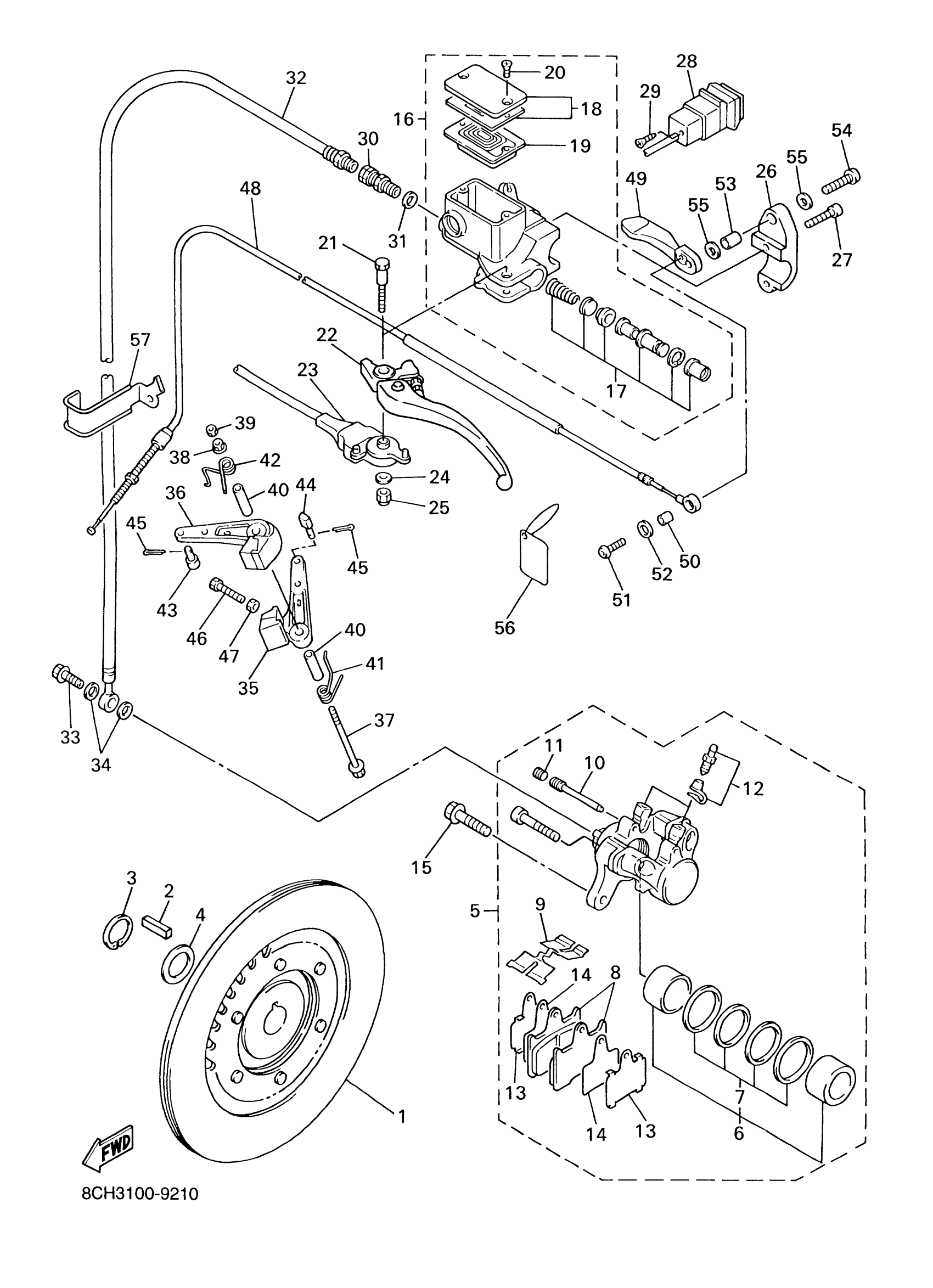

Find the part on the Brake diagram for your 2000 Yamaha SRX700 Ohlins (SRX700SD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SRX700 Ohlins (SRX700SD) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

8DN-2581T-00-00

1
Out of stock

2

KEY, SLIDING(88K)

90281-07004-00

1
Out of stock

3

CIRCLIP(8CJ)

93410-27080-00

1
Out of stock

4

WASHER, PLATE

90201-270U5-00

1
Out of stock

5

CALIPER ASSY (LEFT)

8DF-2580T-02-00

1
Out of stock

6

PISTON ASSY, CALIPER

8CR-W0057-00-00

—
Out of stock

7

CALIPER SEAL KIT

8CR-W0047-00-00

1
Out of stock

8

BRAKE PAD KIT 2

8DF-W0046-01-00

1
Out of stock

9

SUPPORT, PAD

8CR-25919-00-00

—
Out of stock

10

PIN, PAD

8CR-25924-00-00

1
Out of stock

11

BOLT

8CR-25926-00-00

—
Out of stock

12

BLEED SCREW KIT

8CR-W0048-00-00

1
Out of stock

13

. RETAINER

8DF-2582F-00-00

1
Out of stock

14

. SHIM, CALIPER

8DF-25828-00-00

1
Out of stock

15

BOLT, WASHER BASED(1AR)

90105-10634-00

1
Out of stock

16

MASTER CYLINDER SUB ASSY

8DF-W2587-40-00

1
Out of stock

17

CYLINDER KIT, MASTER

8CR-W0041-00-00

—
Out of stock

18

RESERVOIR CAP SET

8CR-W2585-00-00

—
Out of stock

19

DIAPHRAGM, RESERVOIR

55U-25854-00-00

—
Out of stock

20

SCREW, FLAT

98707-04012-00

—
Out of stock

21

BOLT, LEVER

8CR-2589F-00-00

—
Out of stock

22

LEVER 1

8DN-83912-00-00

—
Out of stock

23

STOP SWITCH ASSY

8CR-82530-01-00

—
Out of stock

24

WASHER, PLAIN

8CR-8398X-00-00

—
Out of stock

25

NUT, NYLON

95707-05300-00

—
Out of stock

26

HOLDER, MASTER CYLINDER

8CR-25867-00-00

1
Out of stock

27

BOLT,SOCKET

91317-06025-00

—
Out of stock

28

BEAM SWITCH ASSY

8DN-83950-00-00

1
Out of stock

29

SCREW

8CR-2589H-00-00

1
Out of stock

30

JOINT

3LC-25885-00-00

—
Out of stock

31

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

32

HOSE, BRAKE 1

8DF-25872-20-00

1
Out of stock

33

BOLT, UNION(3GM)

90401-10159-00

—
Out of stock

34

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

35

CALIPER BODY COMP.1

8CR-25730-00-00

1
Out of stock

36

CALIPER BODY COMP. 2

8CR-25740-00-00

1
Out of stock

37

BOLT, FLANGE

90105-08094-00

1
Out of stock

38

NUT, FLANGE(JN5)

95707-08500-00

—
Out of stock

39

NUT, HEXAGON SMALL

95317-08700-00

—
Out of stock

40

COLLAR(82M)

90387-084R5-00

—
Out of stock

41

SPRING, TORSION(8CJ)

90508-291B2-00

—
Out of stock

42

SPRING, TORSION

90508-291B1-00

1
Out of stock

43

PIN

90249-06009-00

1
Out of stock

44

PIN (810)

90249-06012-00

—
Out of stock

45

PIN, COTTER (648)

91490-20015-00

—
Out of stock

46

BOLT, HEXAGON

97017-06025-00

—
Out of stock

47

NUT(JN5)

95317-06700-00

—
Out of stock

48

CABLE, BRAKE

8CR-26351-03-00

—
Out of stock

49

LEVER 2

8CR-83922-00-00

—
Out of stock

50

COLLAR

90387-06043-00

—
Out of stock

51

BOLT, BUTTON HEAD

92017-06014-00

—
Out of stock

52

. WASHER, PLATE

90201-06050-00

1
Out of stock

53

COLLAR

90387-081M9-00

1
Out of stock

54

BOLT, BUTTON

92017-08020-00

—
Out of stock

55

WASHER PLATE 141181390000

90201-08085-00

—
Out of stock

56

TAG, CAUTION

8CR-23496-00-00

1
Out of stock

57

HOLDER, BRAKE HOSE

8DF-25886-00-00

—
Out of stock
