1986 Yamaha SRX600 CA (SRX600SC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

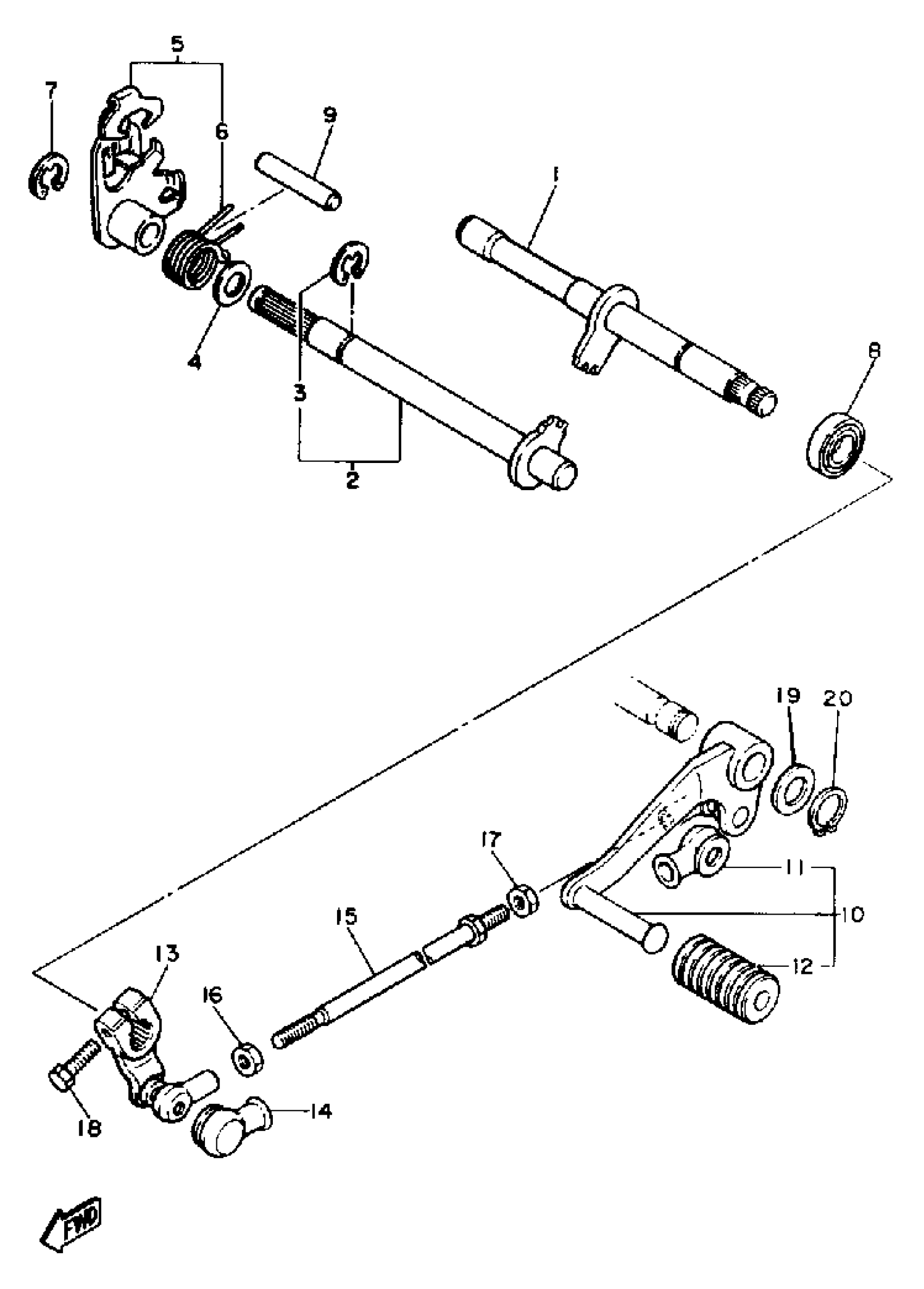

1986 Yamaha SRX600 CA (SRX600SC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY 2

43F-18102-02-00

—

$25.02

In stock

2

SHIFT SHAFT ASSEMBLY

5Y1-18101-02-00

1
Out of stock

3

CIRCLIP

99006-10600-00

1

$6.91

In stock

4

WASHER PLATE 102181410000

90201-12474-00

1
Out of stock

5

SHIFT LEVER ASSY

34K-18120-01-00

1
Out of stock

6

SPRING, TORSION

(90508-29697-00)

1
Out of stock

7

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PIN, DOWEL

93608-33046-00

1
Out of stock

10

SHIFT PEDAL ASSEMBLY

3WP-18110-00-00

1
Out of stock

11

COVER, DUST

2H9-18154-00-00

1
Out of stock

12

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

13

ARM SHIFT

3SX-18112-00-00

1
Out of stock

14

COVER, DUST

2H9-18154-00-00

1
Out of stock

15

ROD, SHIFT

2H9-18115-00-00

1

$8.58

In stock

16

NUT(650)

95380-06700-00

—

$6.17

In stock

17

NUT (2H9)

90170-06228-00

—

$5.20

In stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

19

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

20

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock
