1986 Yamaha SRX600 CA (SRX600SC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

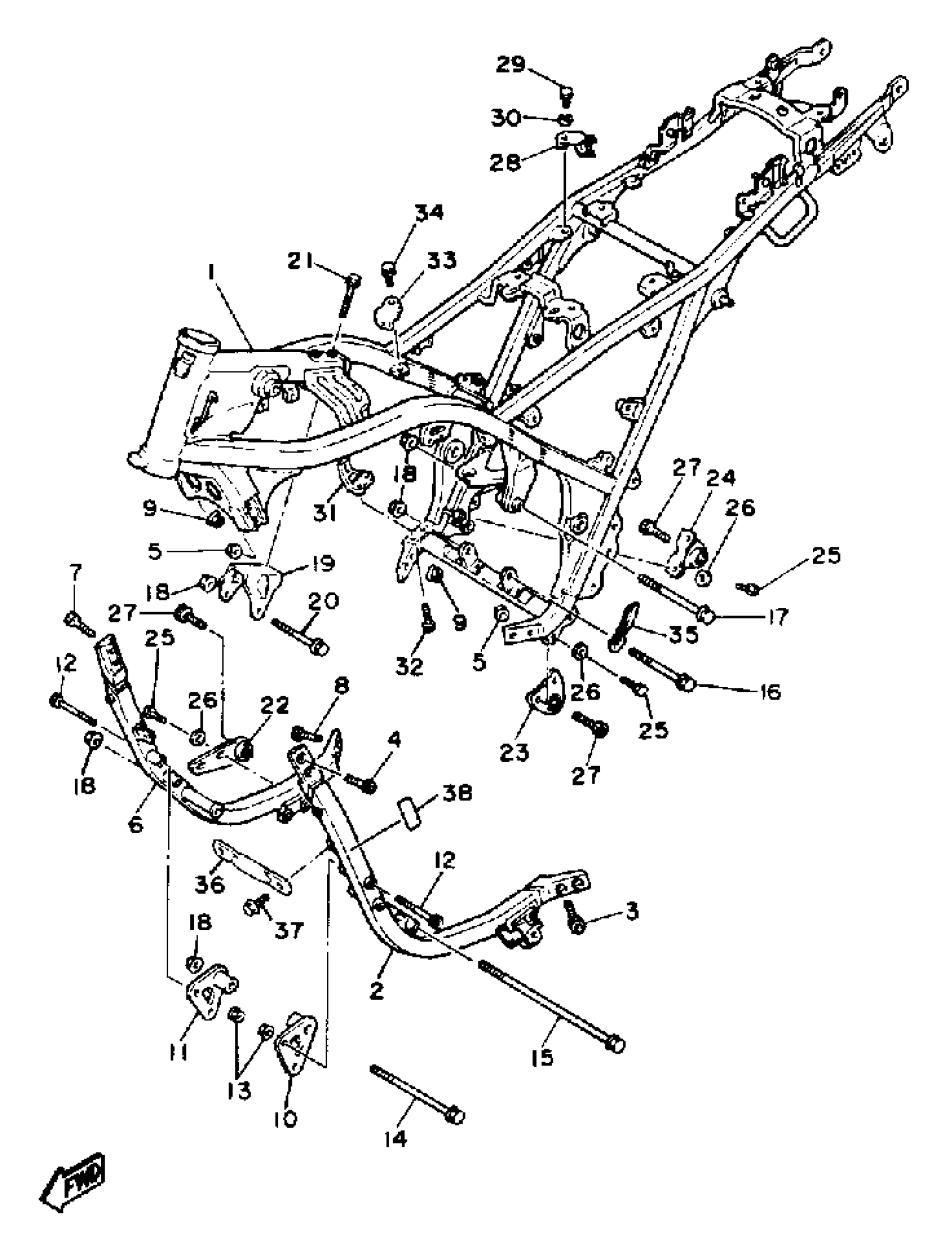

1986 Yamaha SRX600 CA (SRX600SC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2EF-21110-00-MA)

1
Out of stock

2

TUBE, DOWN

(1XL-21140-01-MA)

1
Out of stock

3

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

4

BOLT, SOCKET

91317-08035-00

1
Out of stock

5

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

6

UNAVAILABLE IN PRICE BOOK

1J-K2115-00-0M

1
Out of stock

7

BOLT, SOCKET

91317-08035-00

1
Out of stock

8

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

9

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

10

UNAVAILABLE IN PRICE BOOK

1J-K2149-F0-00

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

1J-K2149-G0-00

1
Out of stock

12

BOLT, SOCKET

91317-08070-00

—

$2.56

In stock

13

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

14

BOLT, FLANGE

95816-10135-00

1
Out of stock

15

BOLT, WASHER BASED (3Y1)

90105-10139-00

1
Out of stock

16

UNAVAILABLE IN PRICE BOOK

95-81610-10-50

1
Out of stock

17

UNAVAILABLE IN PRICE BOOK

95-81610-12-50

1
Out of stock

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

19

UNAVAILABLE IN PRICE BOOK

1J-K2131-40-00

1
Out of stock

20

UNAVAILABLE IN PRICE BOOK

95-81610-08-00

1
Out of stock

21

BOLT, FLANGE

95817-08060-00

—

$3.28

In stock

22

STAY, MUFFLER 1

1JK-21445-00-00

1
Out of stock

23

STAY, MUFFLER 2

1JK-21446-00-00

1
Out of stock

24

STAY, MUFFLER 3

1JK-21487-00-00

1
Out of stock

25

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

26

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

27

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

28

UNAVAILABLE IN PRICE BOOK

1J-K2133-G0-10

1
Out of stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

STOPPER

1JK-2118W-00-00

1
Out of stock

32

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

33

BRACKET, OIL TANK

(1JK-21353-00-00)

1
Out of stock

34

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

35

UNAVAILABLE IN PRICE BOOK

1J-K2176-E0-10

1
Out of stock

36

UNAVAILABLE IN PRICE BOOK

1J-K2111-90-0M

1
Out of stock

37

UNAVAILABLE IN PRICE BOOK

91-01610-02-00

1
Out of stock

38

SEAL

1JK-21268-00-00

—
Out of stock
