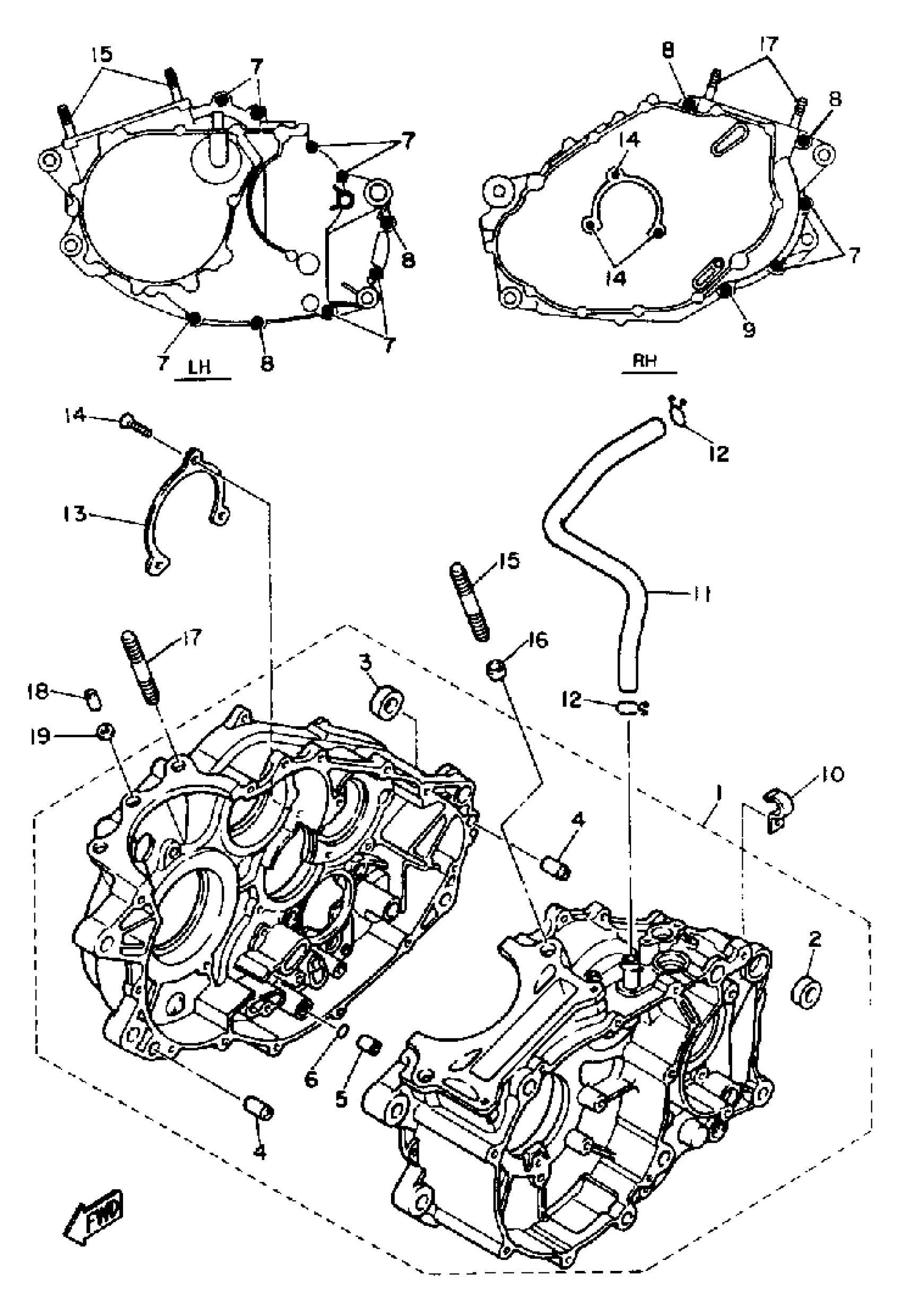

Yamaha SRX600SC (SRX600 CA) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY (1JK-15100-03)

1JK-15100-05-00

Unavailable

2

SPACER

(90560-11273-00)

Unavailable

3

SPACER

(90560-11272-00)

Unavailable

4

PIN, DOWEL

99530-12016-00

$3.85

5

PIN, DOWEL(3XW)

91808-16023-00

$5.26

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.00

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

8

BOLT,SOCKET

91317-06045-00

$3.14

9

BOLT,SOCKET

91317-06060-00

$3.05

10

CLAMP(51Y)

90465-08277-00

Unavailable

11

PIPE, BREATHER 1

1JK-11166-00-00

Unavailable

12

CLIP (371)

90467-14015-00

$7.03

13

PLATE, BEARING COVER

5Y1-15383-00-00

Unavailable

14

SCREW, FLAT

98707-06012-00

$5.76

15

BOLT (363-11361-00)

90116-10087-00

$15.06

16

PIN, DOWEL

99530-12016-00

$3.85

17

BOLT, STUD (1W4)

90116-10263-00

Unavailable

18

PIN, DOWEL(3XW)

91808-16023-00

$5.26

19

GASKET (5Y1)

90430-08178-00

Unavailable
