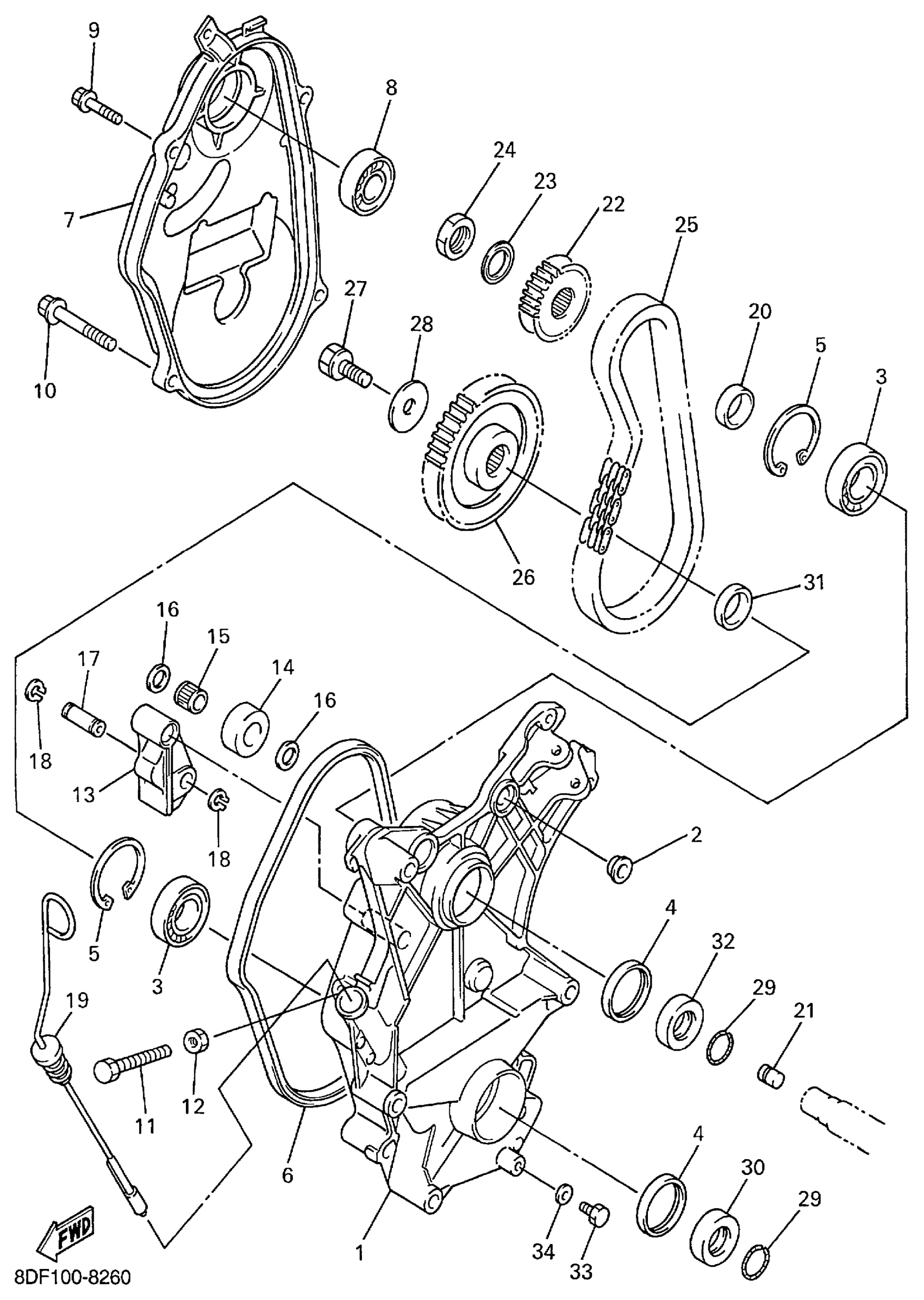

Yamaha SRX600C (SRX600) 8DF2 1999 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8CR-47541-01-00

$428.52

2

NUT(8CJ)

90179-10679-00

$6.71

3

BEARING

93306-20592-00

$50.25

4

OIL SEAL

93102-35473-00

$28.01

5

CIRCLIP(26H)

99009-52500-00

$10.68

6

RING, HOUSING/GASKET

8CR-47558-02-00

Unavailable

7

CAP, HOUSING

8DF-47543-00-00

Unavailable

8

BEARING(1GJ)

93306-20458-00

$36.19

9

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

10

BOLT, FLANGE

95817-10060-00

$5.20

11

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

12

NUT(6TD)

95337-10600-00

$6.98

13

HOLDER

8CR-47613-00-00

Unavailable

14

WHEEL

8CR-47612-00-00

Unavailable

15

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

$39.37

16

WASHER, PLATE (5N6)

90201-127E1-00

$3.68

17

PIN(8CJ)

90249-12227-00

Unavailable

18

CIRCLIP(10Y)

99009-12400-00

$3.08

19

LEVEL, OIL

8CR-47546-00-00

Unavailable

20

COLLAR

90387-2508D-00

Unavailable

21

PLUG, OIL

82M-17699-00-00

$11.28

22

SPROCKET, CHAIN DRIVE (23T)

8DF-17682-30-00

Unavailable

23

WASHER 810475810000

90208-22001-00

$7.35

24

NUT (821-47579-00)

90170-22094-00

$5.34

25

CHAIN (70L)

94860-03070-00

Unavailable

26

SPROCKET, CHAIN DRIVEN (39T)

8DF-47587-90-00

Unavailable

27

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

28

WASHER, PLATE (856)

90201-10321-00

$5.43

29

O-RING (169)

93210-25071-00

$7.51

30

COLLAR(8CJ)

90387-2508C-00

$39.00

31

COLLAR

90387-2508B-00

Unavailable

32

COLLAR

90387-2511J-00

Unavailable

33

BOLT(8BC)

97007-08014-00

Unavailable

34

WASHER, SEAL(8AB)

90210-08017-00

$6.91
