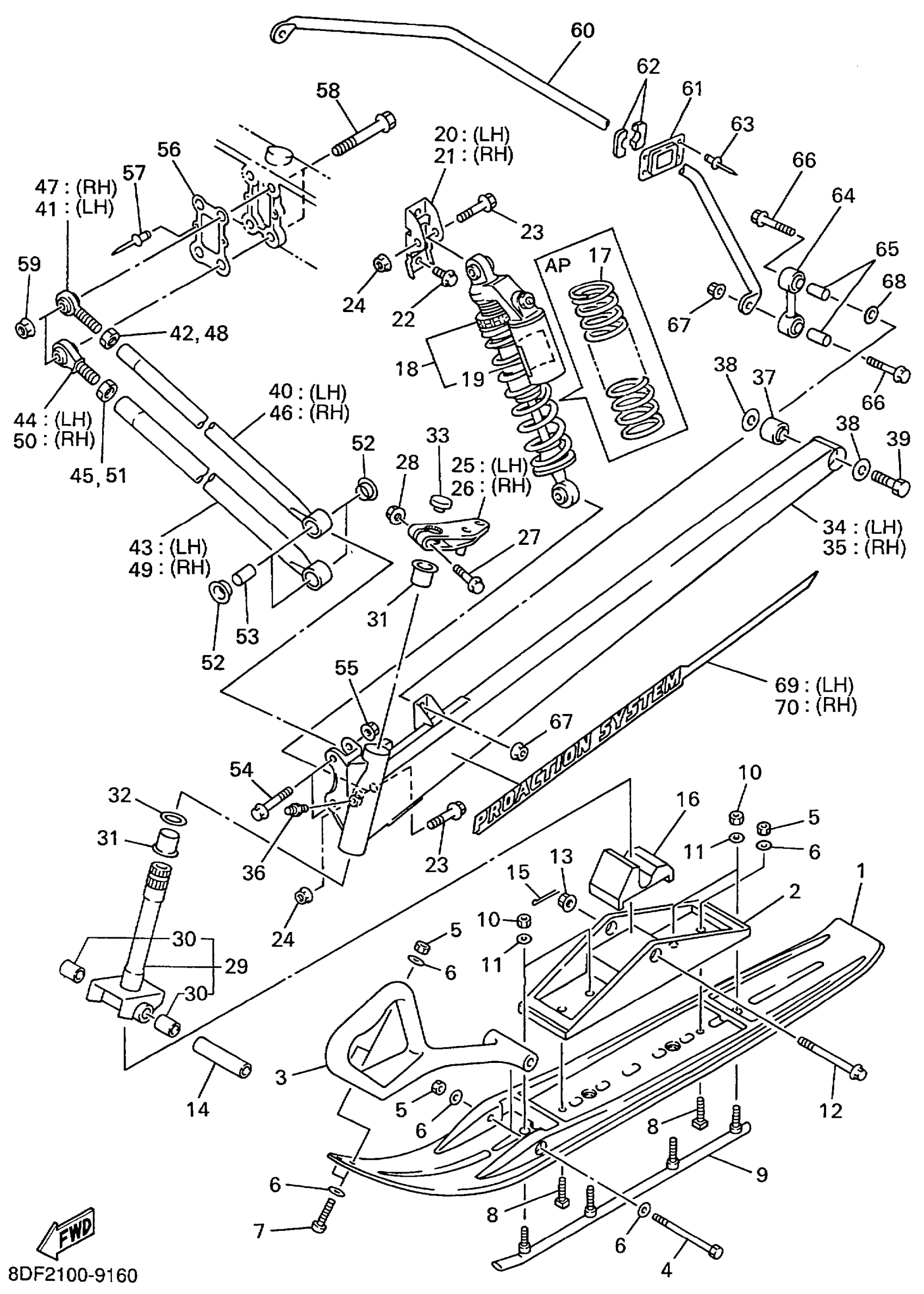

Yamaha SRX600C (SRX600) 8DF2 1999 SKI Diagram

#

Description
Price

1

4.5 BLACK SKI PLASTIC GYT

GYT-8CR91-31-BK

Unavailable

2

SADDLE 1

8DF-23766-01-00

Unavailable

3

GYT/8DF SKI HANDLE BLUE

GYT-8DN91-35-BL

Unavailable

4

BOLT, REINF. HEAD 1

8DF-23755-00-00

Unavailable

5

NUT, NYLON

95717-08300-00

$2.57

6

WASHER(6TC)

92907-08200-00

$6.18

7

BOLT, BUTTON HEAD

92017-08040-00

$2.75

8

BOLT, SQUARE

90108-08002-00

$11.40

9

RUNNER 1

8DF-23731-10-00

Unavailable

10

NUT, NYLON

95717-08300-00

$2.57

11

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

12

BOLT, WASHER BASED(8AB)

90105-10712-00

$10.75

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

COLLAR

90387-1012H-00

$20.68

15

PIN, COTTER

91490-20025-00

$1.31

16

STOPPER 1

8CS-23743-00-00

Unavailable

17

SPRING ASSY 1

8DF-23760-00-00

$151.95

18

ABSORBER ASSEMBLY 1

8DN-2376A-00-00

Unavailable

19

LABEL, WARNING

4AA-22259-40-00

$6.02

19

LABEL, WARNING

4AA-22259-60-00

$6.02

20

HOLDER, ABSORBER

8DF-2376J-00-00

Unavailable

21

HOLDER, ABSORBER 2

8DF-2377J-00-00

$14.42

22

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

23

BOLT, FLANGE

90105-10030-00

$7.54

24

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

25

ARM, OUTSIDE 1

8CR-23851-00-00

$38.43

26

ARM, OUTSIDE 2

8CR-23852-00-00

Unavailable

27

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

28

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

29

COLUMN, SKI ASSY

8CR-23803-01-00

$124.84

30

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

31

BUSH, SOLID

90381-25115-00

$8.09

32

WASHER, PLATE (25G)

90201-301G3-00

$7.25

33

CAP 1

8CR-23741-10-00

$5.75

34

ARM, FRONT 1

8DF-2382E-01-00

Unavailable

35

ARM, FRONT 2

8DF-2382F-01-00

Unavailable

36

NIPPLE, GREASE

93700-06M03-00

$7.15

37

DAMPER

8CR-2516A-00-00

$22.92

38

WASHER, PLATE(8CJ)

90201-120T5-00

$4.91

39

BOLT(8CJ)

90101-12046-00

$7.57

40

ARM, CONTROL 1

8DF-2384E-00-00

Unavailable

41

JOINT 2

8DN-23823-00-00

$101.48

42

NUT, HEXAGON

95337-12600-00

$6.00

43

ARM, CONTROL 2

8DF-2384F-00-00

Unavailable

44

JOINT 3

8DN-23832-00-00

Unavailable

45

NUT

95314-14600-00

Unavailable

46

ARM, CONTROL 1

8DF-2384E-00-00

Unavailable

47

JOINT 2

8DN-23823-00-00

$101.48

48

NUT, HEXAGON

95337-12600-00

$6.00

49

ARM, CONTROL 2

8DF-2384F-00-00

Unavailable

50

JOINT 3

8DN-23832-00-00

Unavailable

51

NUT

95314-14600-00

Unavailable

52

BUSH, SOLID(8CJ)

90381-17110-00

$8.08

53

COLLAR(8CJ)

90387-1009K-00

$22.03

54

BOLT, FLANGE

90105-10030-00

$7.54

55

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

56

WASHER

8DF-23779-00-00

$20.51

57

RIVET, BLIND (8J5)

90267-48057-00

Unavailable

58

BOLT, FLANGE

90105-124A2-00

Unavailable

59

NUT, U FLANGE

95607-12200-00

$5.43

60

BAR, STABILIZER FRONT

8CV-2386E-00-00

Unavailable

61

COVER, STABILIZER FRONT

8CR-2386H-00-00

Unavailable

62

BUSH, STABILIZER FRONT

8CR-2386G-00-00

Unavailable

63

RIVET, BLIND(8CR)

90267-47186-00

$2.31

64

JOINT, STABILIZER 1 (STRONG BLUE)

8DF-2385L-00-00

Unavailable

65

COLLAR(8V7)

90387-087L3-00

$7.92

66

BOLT, FLANGE

95817-08040-00

$5.43

67

NUT, SELF-LOCKING

90185-08169-00

$7.09

68

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

69

EMBLEM 15

8EA-77371-00-00

Unavailable

70

EMBLEM 16

8EA-77372-00-00

Unavailable
