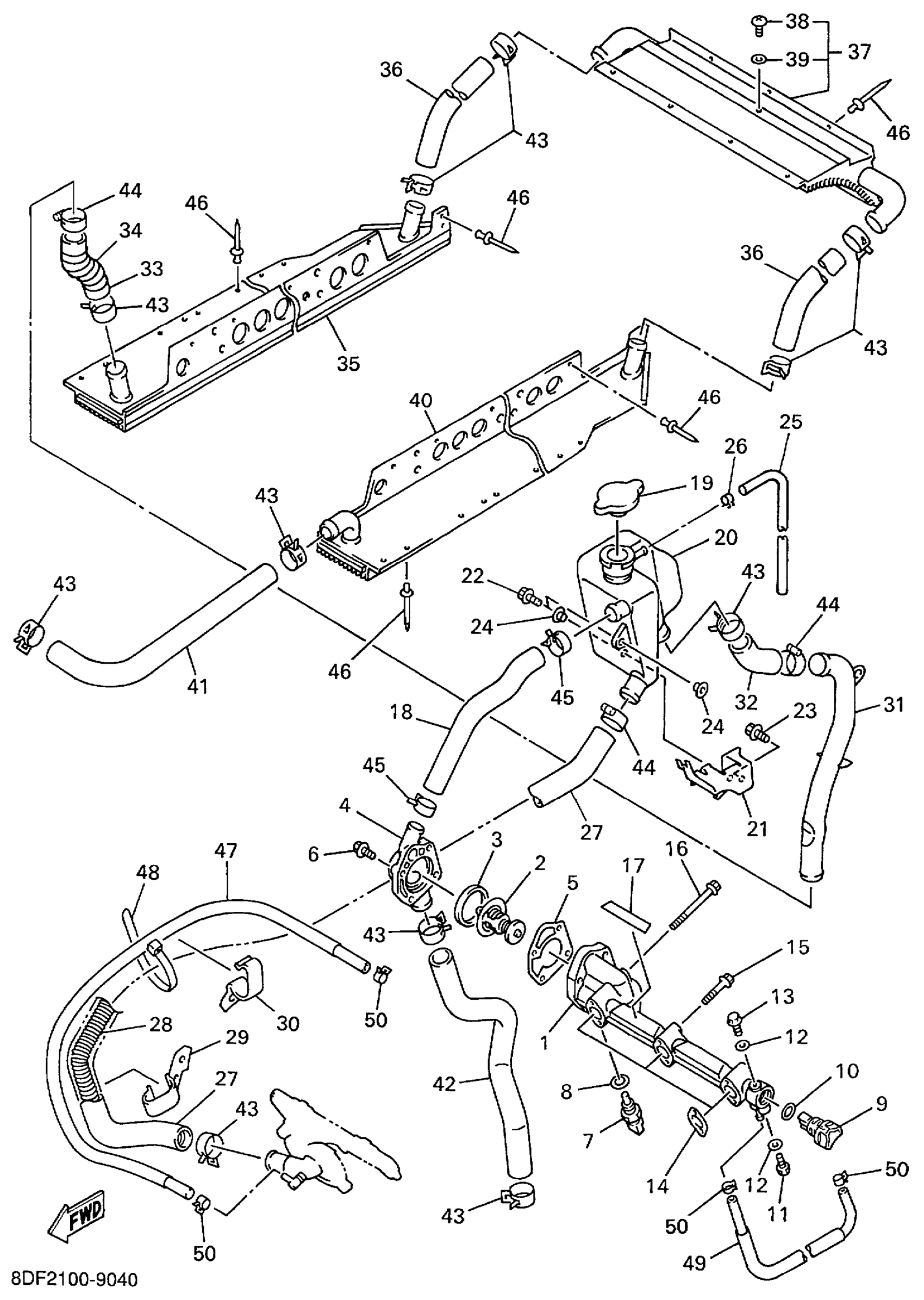

Yamaha SRX600C (SRX600) 8DF2 1999 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT ASSY 1

8DF-1240L-10-00

$229.98

2

THERMOSTAT

8DF-12411-00-00

Unavailable

3

SEAL, THERMOSTAT

8A7-12412-01-00

$14.25

4

COVER, THERMOSTAT

8DF-12413-00-00

Unavailable

5

GASKET, COVER

8DF-12414-00-00

Unavailable

6

BOLT, FLANGE

95817-06025-00

$1.46

7

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

8

WASHER, PLATE

90201-12790-00

$6.85

9

COCK, DRAIN

8DF-12478-00-00

Unavailable

10

O-RING (646)

93210-19123-00

$6.91

11

BOLT

90109-063E8-00

Unavailable

12

WASHER, SEAL (7G5)

90210-06006-00

$5.72

13

BOLT (583 TACHOMETER)

90109-06418-00

$6.42

14

GASKET

8DF-12435-00-00

$4.74

15

BOLT, FLANGE

95817-06045-00

$6.18

16

BOLT, FLANGE

95817-06070-00

$2.75

17

EMBLEM

8DF-12629-00-00

Unavailable

18

PIPE 1

8DF-12481-00-00

Unavailable

19

CAP, RADIATOR

4FL-12462-00-00

$55.82

20

TANK, RESERVE

8DF-1249B-01-00

Unavailable

21

BRACKET 1

8DF-1244E-00-00

Unavailable

22

BOLT, WITH WASHER(2WG)

90119-06172-00

$5.83

23

BOLT, FLANGE

95817-06020-00

$2.69

24

COLLAR (838-84757-00)

90387-06024-00

$9.09

25

HOSE (L600)

90445-083J5-00

$5.69

26

CLIP (8A1)

90467-09026-00

$2.72

27

PIPE 2

8DF-12482-00-00

Unavailable

28

SPRING, COMPRESSION

90501-125L4-00

Unavailable

29

CLAMP

90461-12146-00

Unavailable

30

CLAMP

90461-12147-00

Unavailable

31

PIPE 3

8DF-12483-01-00

Unavailable

32

HOSE 2

8DF-1243E-00-00

Unavailable

33

HOSE,3

8DF-1243F-00-00

$14.54

34

SPRING, COMPRESSION

90501-144L4-00

Unavailable

35

HEAT EXCHANGER ASSY 3

8DF-1240F-04-00

Unavailable

36

PIPE 4

8DF-12484-01-00

Unavailable

37

HEAT EXCHANGER ASSY 4

8DF-1241A-11-00

Unavailable

38

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.43

39

WASHER, SEAL (7G5)

90210-06006-00

$5.72

40

HEAT EXCHANGER ASSY

8DF-1240E-04-00

Unavailable

41

PIPE 5

8DF-12485-00-00

Unavailable

42

PIPE 6

8DF-12476-00-00

Unavailable

43

CLIP (8M6)

90467-28046-00

$12.43

44

HOSE CLAMP ASSY

90450-32015-00

$15.23

45

CLIP (10V)

90467-23067-00

$3.86

46

RIVET, BLIND(8CR)

90267-47186-00

$2.31

47

PIPE 7

8DF-12477-00-00

Unavailable

48

CLAMP(4FM)

90464-15195-00

$2.77

49

PIPE 8

8DF-1248A-00-00

Unavailable

50

CLIP(3BM)

90467-10135-00

$6.91
