1980 Yamaha SRX440D Pump Drive Gear Diagram

← All diagrams

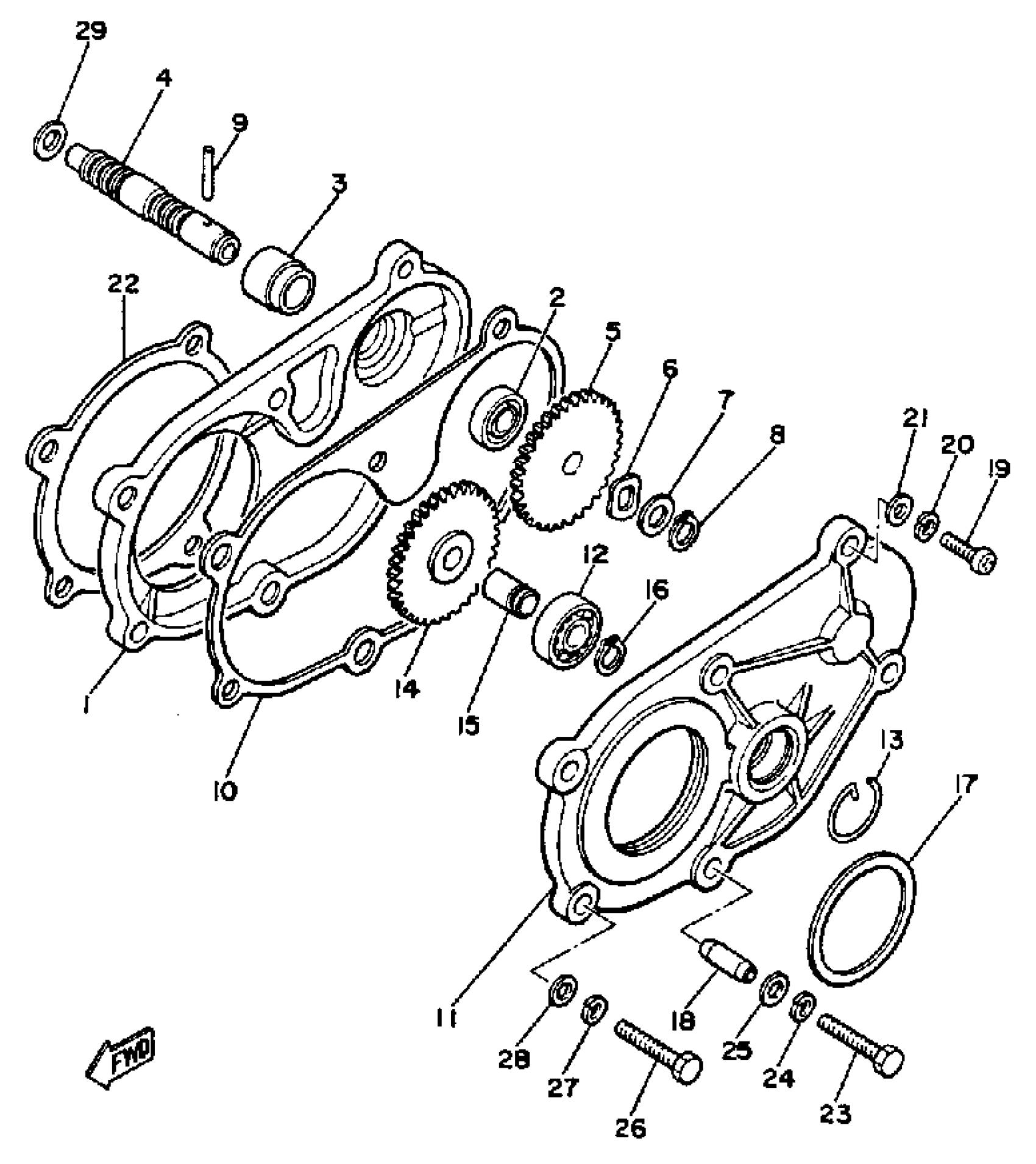

Find the part on the Pump Drive Gear diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SRX440D Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

(8K2-15416-00-00)

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

SHAFT, WORM

(8K2-13175-00-00)

1
Out of stock

5

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

6

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

GASKET 2

8K2-15466-09-00

1
Out of stock

11

COVER, OIL PUMP R

(8K2-15426-00-00)

1
Out of stock

12

—

$29.35

In stock

13

CLIP

(90468-12077-00)

1
Out of stock

14

GEAR, IDLE

(8F3-13179-01-00)

1
Out of stock

15

SHAFT, IDLE GEAR

8F3-13342-00-00

1
Out of stock

16

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

17

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

18

PIN, DOWEL

91810-18022-00

1
Out of stock

19

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

GSKT,O PMPCVR

838-15456-09-00

1
Out of stock

23

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
