1979 Yamaha SRX440C Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

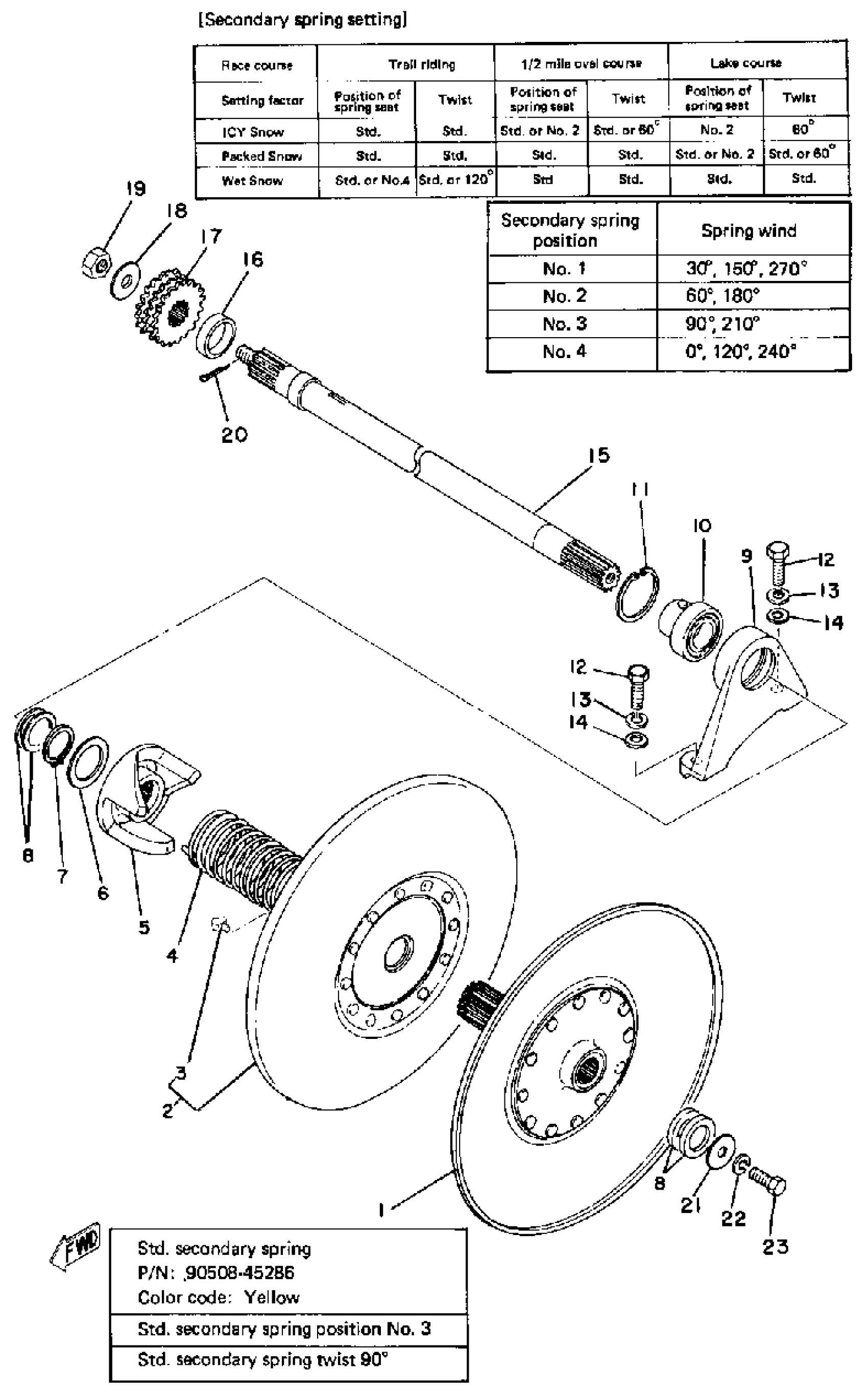

1979 Yamaha SRX440C Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHVSHEAVE COMP.

8A5-17660-01-00

1
Out of stock

2

SEC SLIDING SHEAVE

(8F2-17670-00-00)

1
Out of stock

3

SHOE RAMP

8X6-17688-00-00

1

$6.31

In stock

4

SPRING, TORSION

90508-45286-00

1
Out of stock

5

SEAT, SEC SPRING

8A7-17684-00-00

1
Out of stock

6

WASHER, PLATE

90201-34684-00

1
Out of stock

7

CIRCLIP(86F)

93440-34170-00

1

$6.86

In stock

8

WASHER, PLATE (888)

90201-25526-00

1
Out of stock

8

WASHER, PLATE (888)

90201-25527-00

1

$7.60

In stock

8

SPACER (25-36-5.0)

99999-01011-00

1
Out of stock

9

HOUSING, BEARING

878-47631-00-00

1
Out of stock

10

BEARING

888-17678-00-00

1
Out of stock

11

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

12

BOLT (8J7)

97013-10030-00

1

$8.91

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

WASHER, PLATE 3711117500

90201-10124-00

—

$6.58

In stock

15

SHAFT, SECONDARY

(888-17680-00-00)

1
Out of stock

16

COLLAR

90387-25259-00

1
Out of stock

17

SPRKT, CHAIN DR 15T (878-17682-50) (15T)

829-17682-50-00

1
Out of stock

17

SPRKT, CHAIN DR 16T (16T)

829-17682-60-00

1
Out of stock

17

SPRKT, CHAIN DR 17T (17T)

829-17682-70-00

1
Out of stock

17

SPRKT, CHAIN DR 18T (18T)

829-17682-80-00

1
Out of stock

17

SPRKT, CHAIN DR 19T (878-17682-90) (19T)

829-17682-90-00

1
Out of stock

17

UNAVAILABLE IN PRICE BOOK (20T) (829-17693-00)

878-17682-00-00

1
Out of stock

17

SPROCKET, CHAIN DR (878-17693-10) (21T)

8U9-17693-10-00

1
Out of stock

17

SPROCKET, CHAIN DR (878-17693-20) (22T)

8U9-17693-20-00

1
Out of stock

18

WASHER, PLATE

90201-14319-00

1
Out of stock

19

NUT(6TC)

95337-14600-00

—

$10.25

In stock

20

PIN, COTTER

91490-30030-00

—

$7.15

In stock

21

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

23

BOLT(6TD)

97017-10025-00

—

$6.82

In stock
