1977 Yamaha SRX440A SKI Diagram

← All diagrams

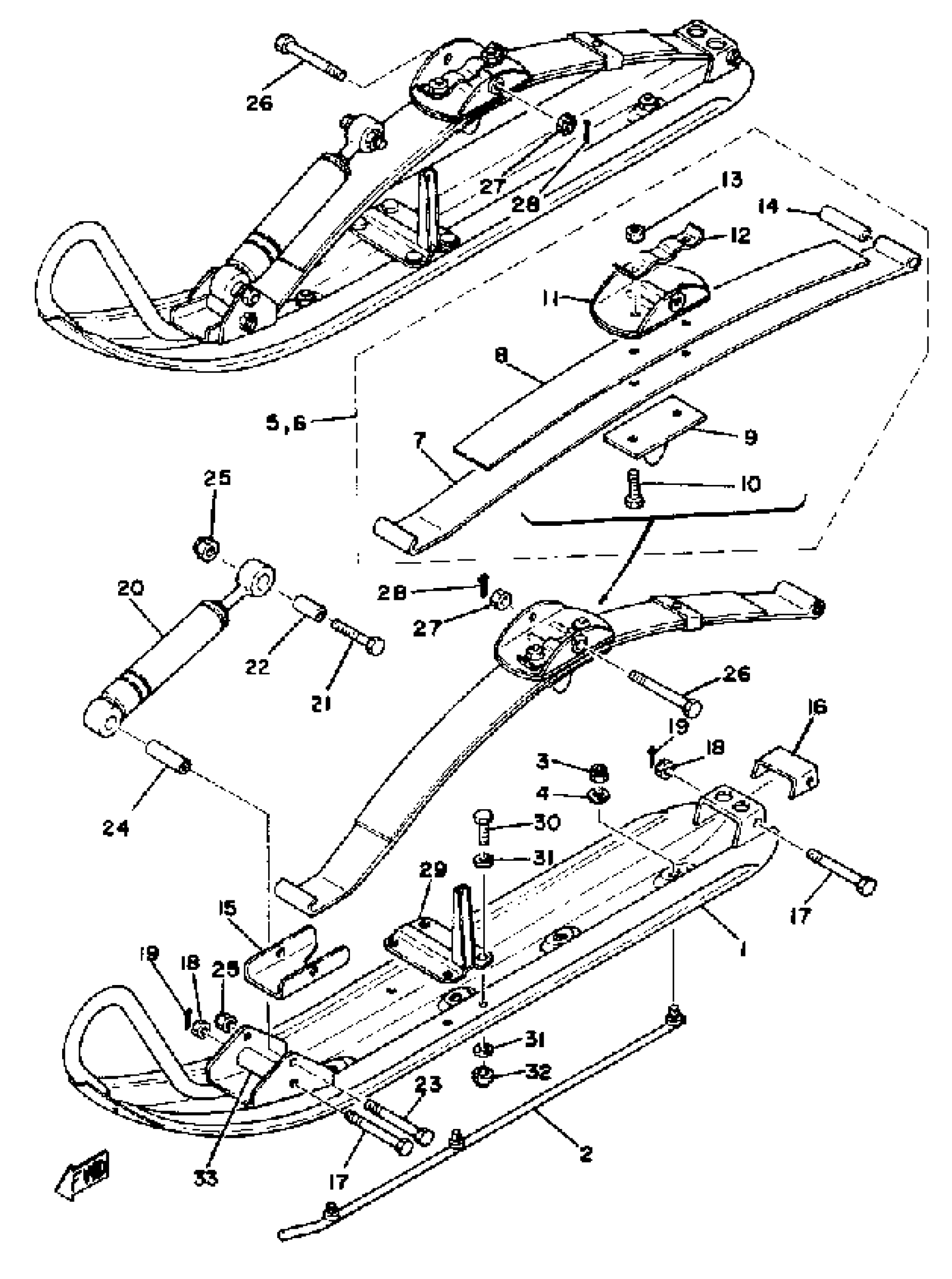

Find the part on the SKI diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha SRX440A SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(8F2-23710-00-00)

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

SPRING ASSEMBLY 1

8F2-23760-00-00

1
Out of stock

6

SPRING ASSEMBLY 2

(8F2-23770-00-00)

1
Out of stock

7

. LEAF 1

8F2-23761-00-00

1
Out of stock

8

. LEAF 2

8F2-23762-00-00

1
Out of stock

9

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

10

. BOLT

90109-105E7-00

1
Out of stock

11

SADDLE 1

(8F2-23766-00-00)

1
Out of stock

12

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

13

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

14

COLLAR

90387-08478-00

1
Out of stock

15

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

16

PLATE, WEAR 2

8A7-23736-00-00

1
Out of stock

17

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

18

NUT, SLOTTED

95307-08900-00

1
Out of stock

19

PIN, COTTER

91490-20025-00

—

$1.31

In stock

20

SHOCK ABSORBER ASSEMBLY

(8F2-23350-00-00)

1
Out of stock

21

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

22

COLLAR (878)

90387-08262-00

—

$9.02

In stock

23

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

24

COLLAR (864)

90387-08224-00

—

$7.52

In stock

25

NUT, U

95617-08100-00

1

$6.78

In stock

26

BOLT, WITH HOLE

90102-12022-00

1
Out of stock

27

NUT,CASTLE

90171-12058-00

1
Out of stock

28

PIN, COTTER

91490-30030-00

—

$7.15

In stock

29

STOPPER 1

8F2-23743-00-00

1
Out of stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

31

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

32

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

33

COLLAR

(90387-08594-00)

1
Out of stock
