1977 Yamaha SRX440A Radiator Diagram

← All diagrams

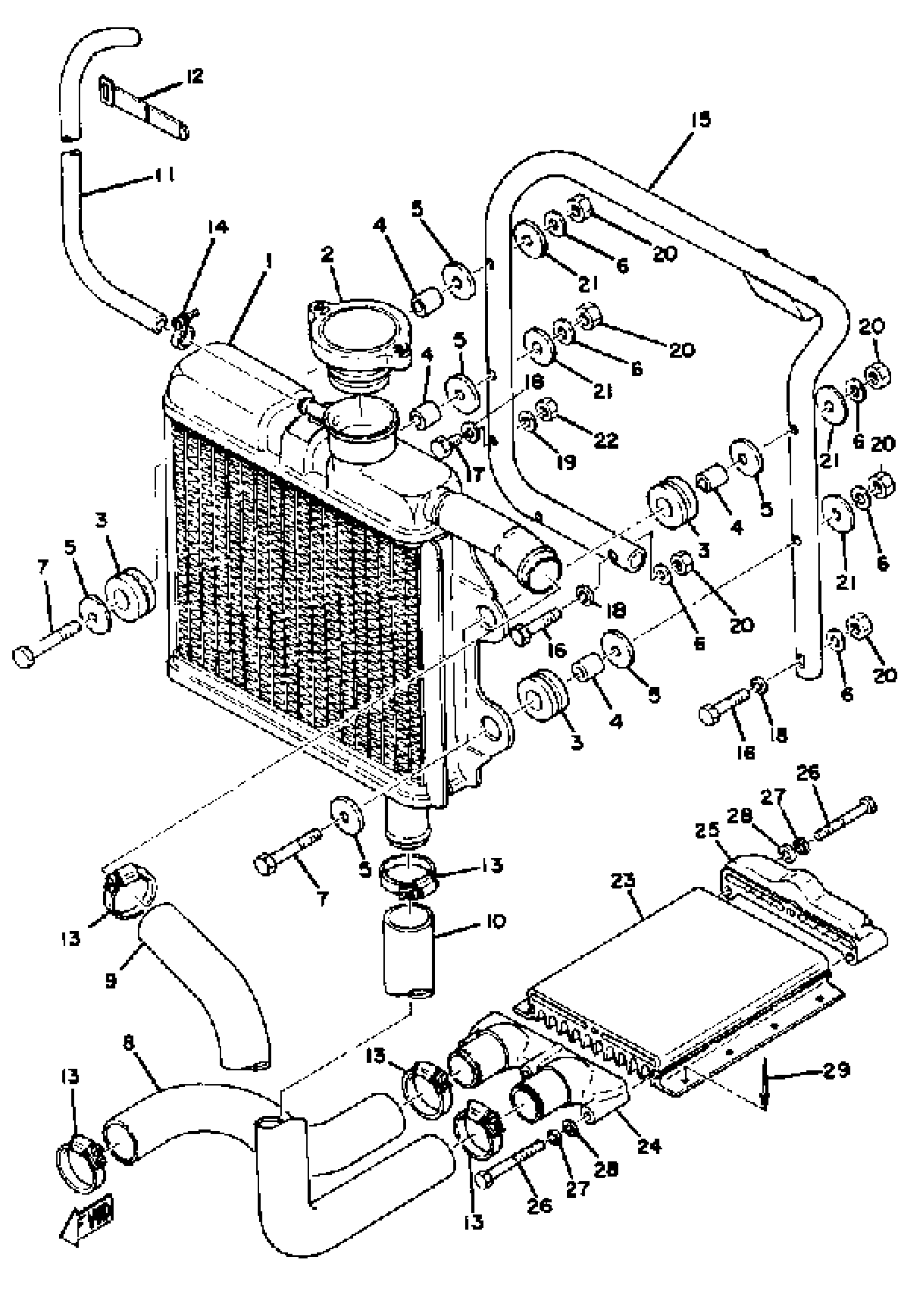

Find the part on the Radiator diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha SRX440A Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSEMBLY

8A7-12460-00-00

1
Out of stock

2

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

3

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

4

COLLAR (8A7)

90387-06518-00

1
Out of stock

5

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

6

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

7

BOLT (682)

97095-06040-00

1

$2.36

In stock

8

PIPE 5

(8A7-12485-00-00)

1
Out of stock

9

PIPE 2

8A7-12482-00-00

1
Out of stock

10

PIPE 3

(8A7-12483-01-00)

1
Out of stock

11

HOSE

(90445-11154-00)

1
Out of stock

12

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

13

CLAMP, HOSE

90460-38292-00

1
Out of stock

14

CLIP

90467-100A1-00

1
Out of stock

15

STAY, RADIATOR

(8A7-12464-00-00)

1
Out of stock

16

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

17

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

21

—

$6.58

In stock

22

NUT, U

95617-08100-00

—

$6.78

In stock

23

EXCHANGER, HEAT

(8A7-12466-00-00)

1
Out of stock

24

JOINT 1

(8A7-12469-00-00)

1
Out of stock

25

JOINT

(8A7-12479-00-00)

1
Out of stock

26

BOLT, HEXAGON

(97301-05050-00)

1
Out of stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

29

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock
