1977 Yamaha SRX440A Frame Diagram

← All diagrams

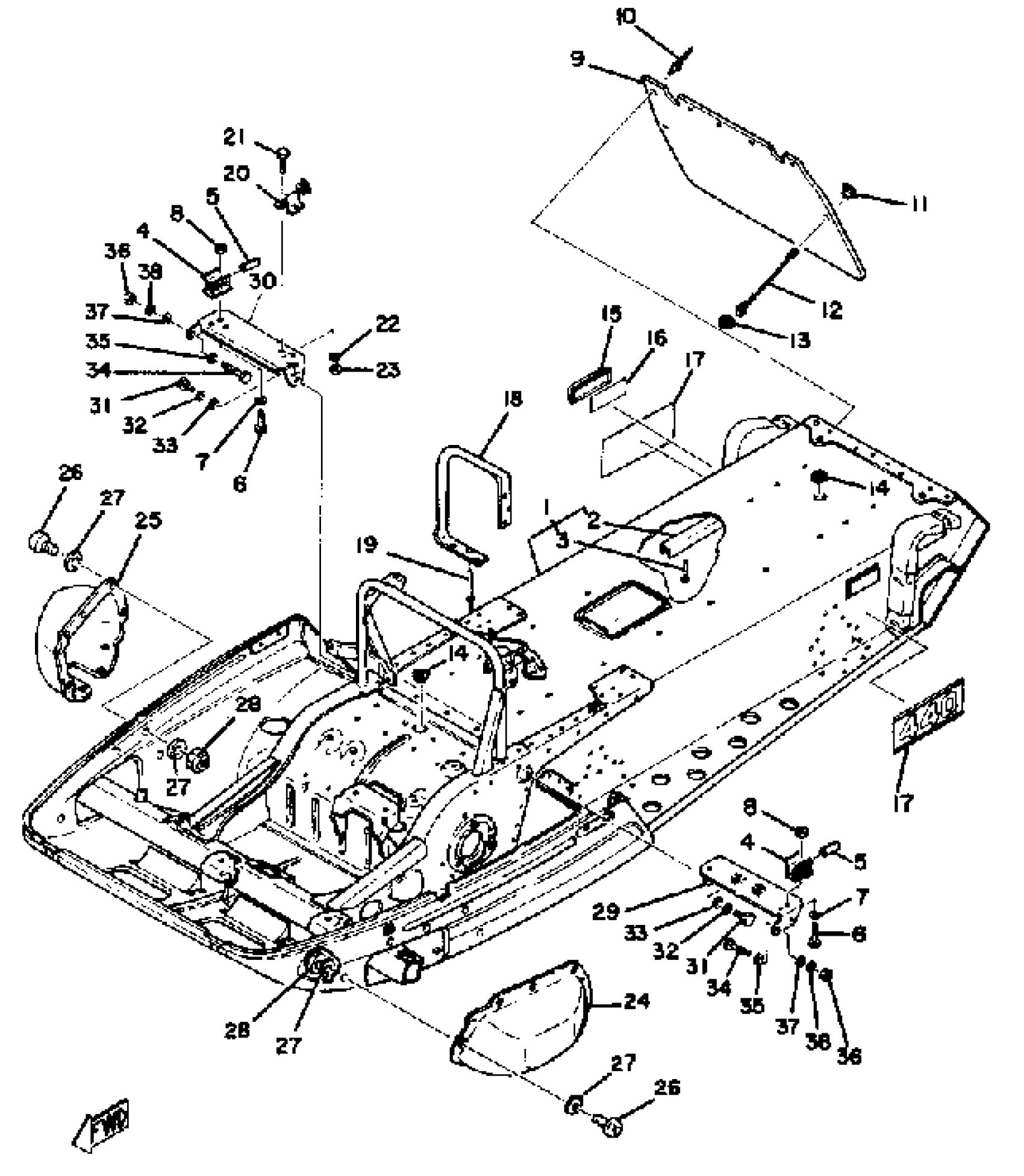

Find the part on the Frame diagram for your 1977 Yamaha SRX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha SRX440A Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8F2-21910-00-00

1
Out of stock

2

. PROTECTOR, FRAME

8A7-21978-00-00

1
Out of stock

3

RIVET, FLAT HEAD

(90263-04008-00)

1
Out of stock

4

CLAMP 3

878-77137-01-00

1
Out of stock

5

STOPPER

878-77188-00-00

1
Out of stock

6

BOLT,HEXAGON

97017-06008-00

1
Out of stock

7

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

8

NUT, NYLON

95707-06300-00

1

$3.20

In stock

9

FLAP

8F2-77595-00-00

1
Out of stock

10

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

11

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

12

STOPPER, FLAP

878-77596-00-00

1
Out of stock

13

CLIP

(90468-16059-00)

1
Out of stock

14

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

15

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

16

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

17

EMBLEM 3

(8F2-77353-01-00)

1
Out of stock

18

RNFCMNT, FTRST 1

(8A7-21926-00-00)

1
Out of stock

19

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

20

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

NUT, NYLON

95707-06300-00

1

$3.20

In stock

24

HOOD 1

8G9-21982-00-00

1
Out of stock

25

HOOD 2

8G9-21983-00-00

1
Out of stock

26

SCREW, BIND(3XC)

98904-05012-00

—

$1.23

In stock

27

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

28

NUT, NYLON

95707-05300-00

—

$2.74

In stock

29

BRACKET 3

(878-23883-00-00)

1
Out of stock

30

BRACKET 4

8A5-23884-00-00

1
Out of stock

31

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

34

BOLT, HEXAGON

97013-05012-00

—

$1.43

In stock

35

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

36

NUT (CROWN)

95303-05800-00

1
Out of stock

37

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

38

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
