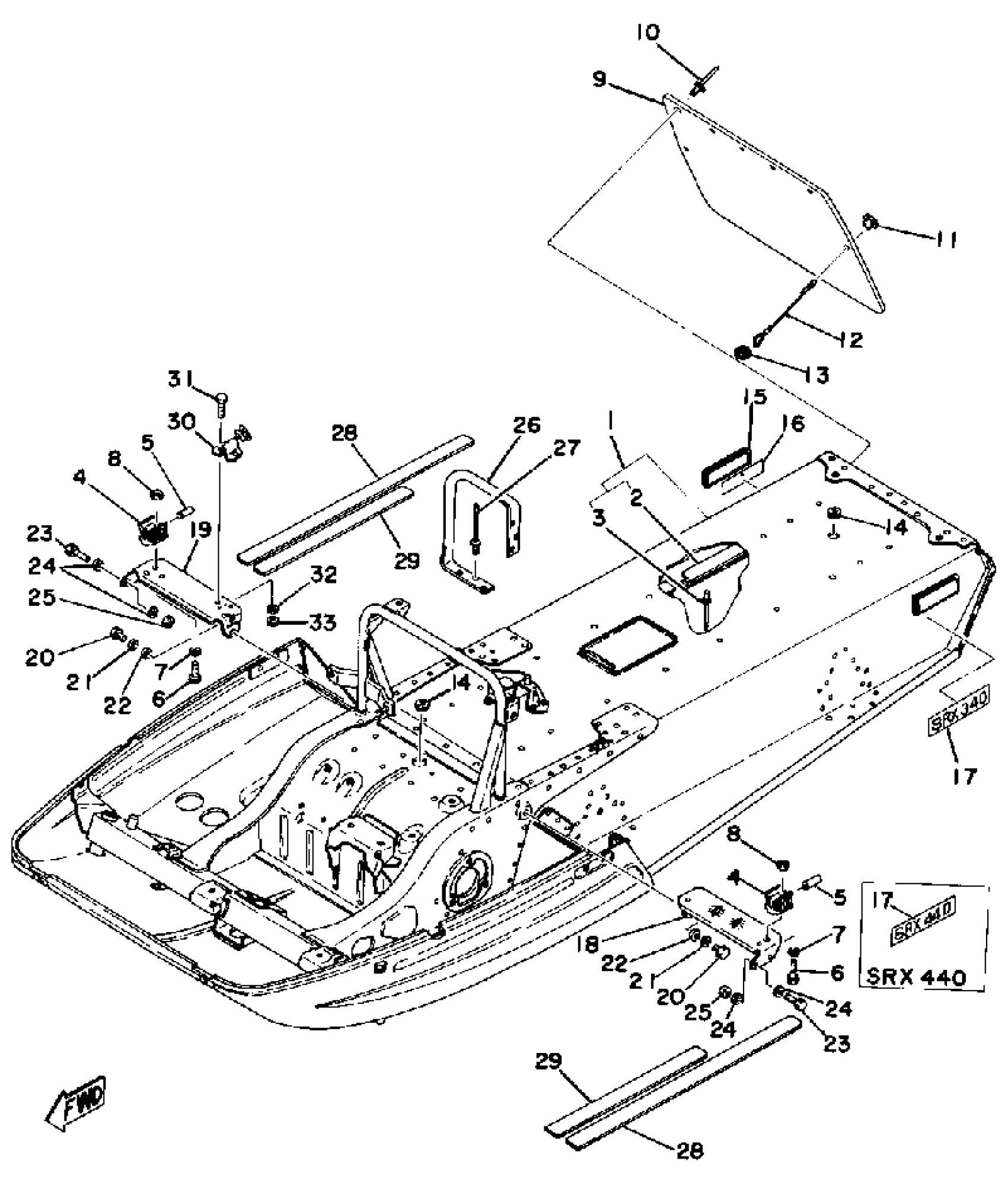

Find the part on the Frame diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, SUB FRAME 1

8F2-21912-09-00

1
Out of stock

2

. PROTECTOR, FRAME

8A7-21978-00-00

1
Out of stock

3

. RIVET, FLAT HEAD

90263-04007-00

1
Out of stock

4

CLAMP 3

878-77137-01-00

1
Out of stock

5

STOPPER

878-77188-00-00

1
Out of stock

6

BOLT,HEXAGON

97017-06008-00

1
Out of stock

7

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

8

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

9

FLAP

8F2-77595-00-00

1
Out of stock

10

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

11

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

12

STOPPER, FLAP

878-77596-00-00

1
Out of stock

13

CLIP

90468-16022-00

1
Out of stock

14

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

15

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

16

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

17

HEAD, CYLINDER 1

(8A8-11111-00-00)

1
Out of stock

17

SHROUD ASSEMBLY

8F2-W7711-00-00

1
Out of stock

18

BRACKET 3

(878-23883-00-00)

1
Out of stock

19

BRACKET 3

(878-23883-00-00)

1
Out of stock

19

BRACKET 4

8A5-23884-00-00

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

23

BOLT, HEXAGON

97313-05016-00

1
Out of stock

24

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

25

NUT (CROWN)

95303-05800-00

1
Out of stock

26

PANEL, SUB FRAME 1

8F2-21912-09-00

1
Out of stock

27

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

28

COVER, FOOTREST

878-27413-00-00

1
Out of stock

29

COVER, FOOTREST

878-27423-00-00

1
Out of stock

30

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock
