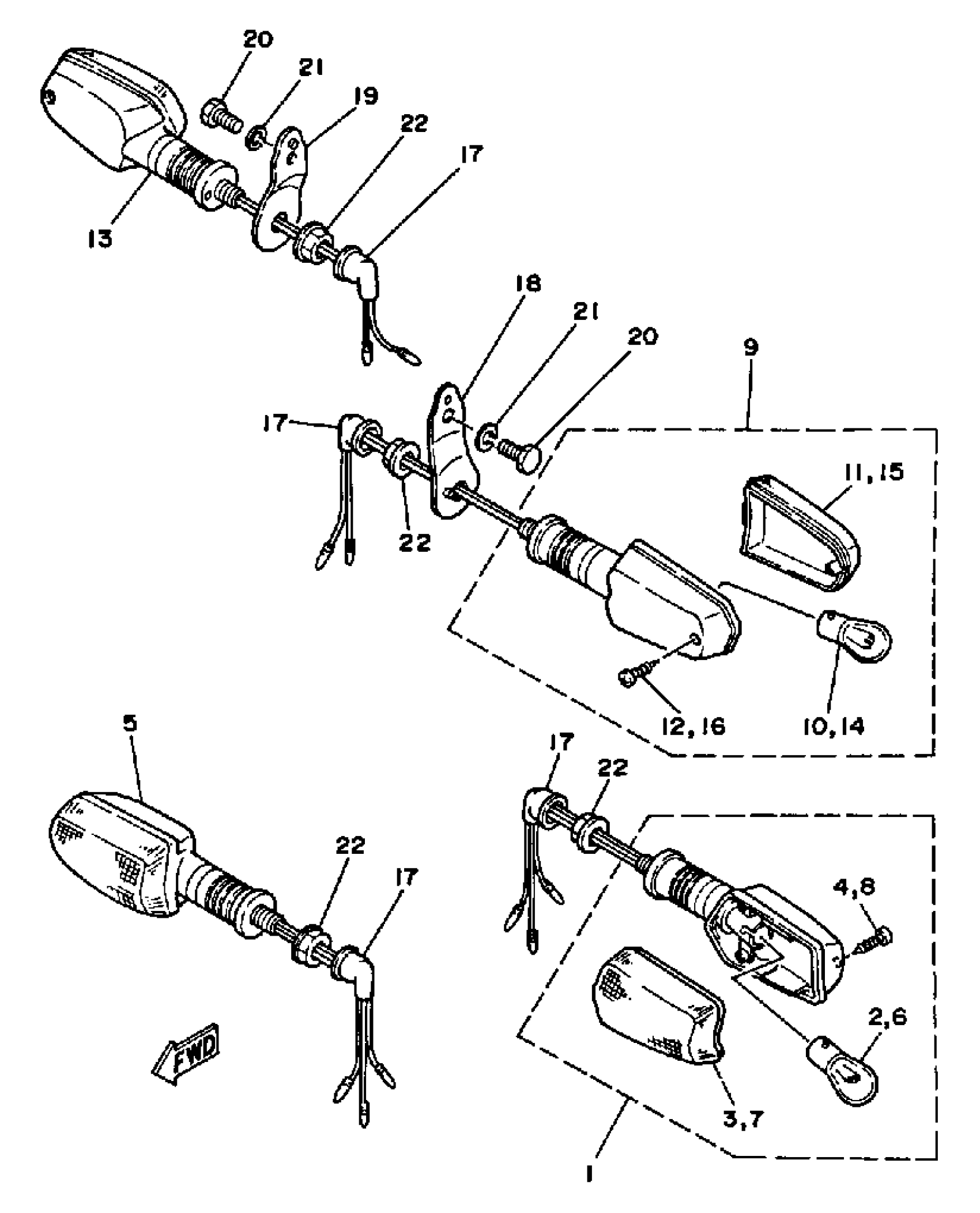

Yamaha SRX250TC (SRX250 CA) 1987 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSEMBLY 1

1LJ-83310-20-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

51L-83332-01-00

Unavailable

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

FRONT FLASHER LIGHT ASSEMBLY 2

1LJ-83320-20-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

LENS, FLASHER 2

51L-83342-01-00

$11.99

8

SCREW, PAN TAP.2

97707-40520-00

$9.49

9

FRT FLSHR LITE ASY

1VW-83320-00-00

Unavailable

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

LENS, FLASHER 2

51L-83342-01-00

$11.99

12

SCREW, PAN TAP.2

97707-40520-00

$9.49

13

FRT FLSHR LITE ASY

1VW-83310-00-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

51L-83332-01-00

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

$9.49

17

CAP

18G-83365-00-00

Unavailable

18

STAY, FLASHER

(51Y-83368-01-00)

Unavailable

19

STAY, FLASHER

51Y-83369-00-00

Unavailable

20

BOLT, HEXAGON

97017-08016-00

Unavailable

21

WASHER(JN5)

92907-08100-00

Unavailable

22

NUT, HEXAGON SMALL

95317-12700-00

Unavailable
