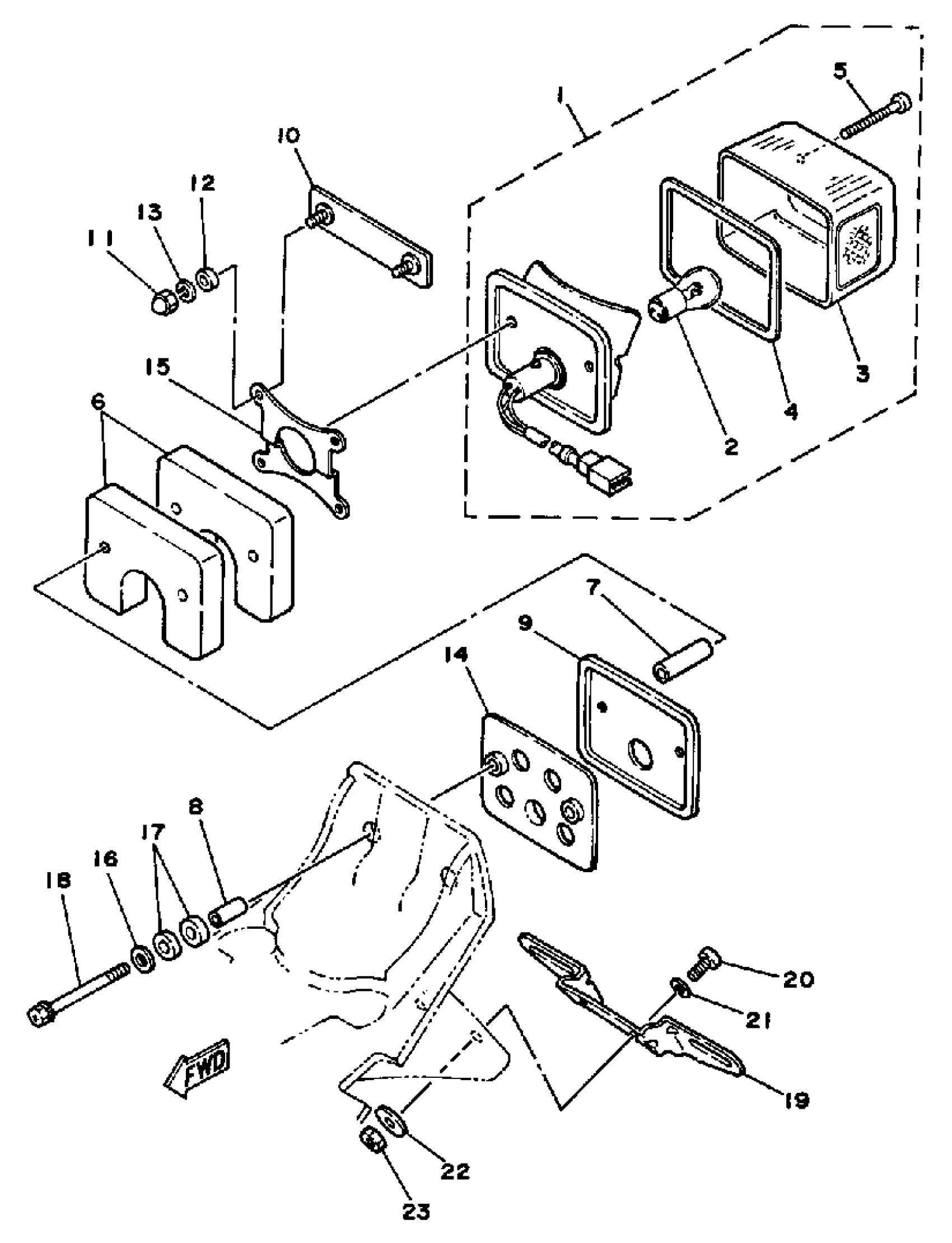

Yamaha SRX250TC (SRX250 CA) 1987 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLYASSY

4L3-84710-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

4

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

5

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

6

DAMPER

2NV-84753-00-00

Unavailable

7

COLLAR

90387-064G4-00

Unavailable

8

COLLAR (10L)

90387-061G0-00

Unavailable

9

BRACKET, TAILLIGHT

2NV-84702-00-00

Unavailable

10

REAR REFLECTOR ASSY

1FK-85130-00-00

$34.99

11

NUT (CROWN)

95303-05800-00

Unavailable

12

COLLAR

90387-06106-00

$7.49

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

DAMPER

4L0-84753-00-00

Unavailable

15

BRACKET, REAR STAY

2NV-21688-00-00

Unavailable

16

WASHER, PLATE

90201-06049-00

Unavailable

17

WASHER, PLATE (4L0)

90201-083A0-00

Unavailable

18

SCREW WITH WASHER

90159-06140-00

Unavailable

19

BRCKT, NUMBER PLATENUMBER PLATE

2NV-8454E-00-00

Unavailable

20

BOLT, HEXAGON

97017-06016-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

23

NUT(6TA)

95317-06600-00

Unavailable
