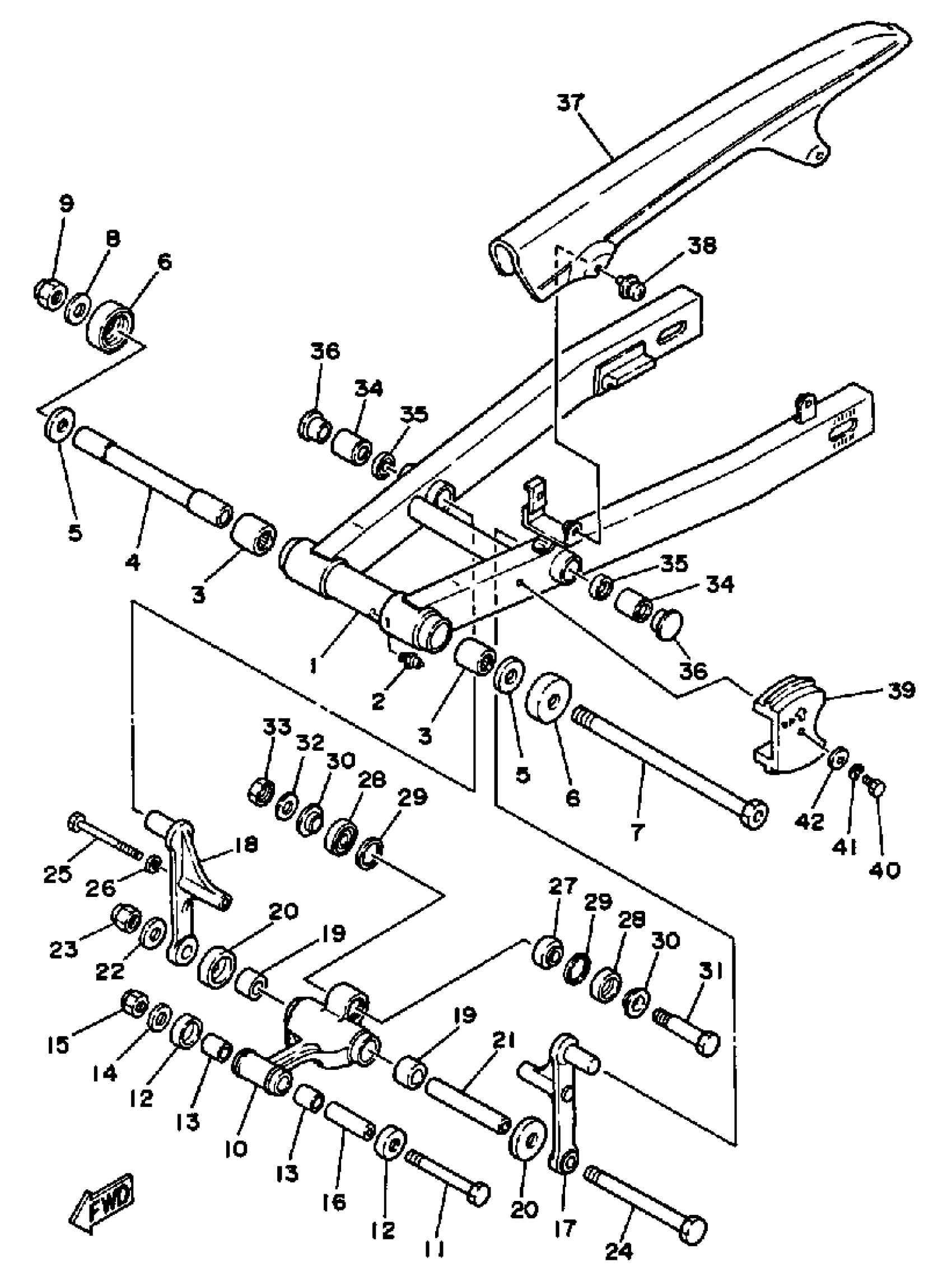

Yamaha SRX250TC (SRX250 CA) 1987 SWING ARM Diagram
#
1
REAR ARM
(51Y-22110-00-FH)
Unavailable
2
NIPPLE, GREASE
93700-06M03-00
Unavailable
4
BUSH
51L-22184-00-00
Unavailable
5
WASHER, PLATE(48H)
90201-161J3-00
Unavailable
7
SHAFT, PIVOT
5X6-22141-01-00
Unavailable
9
NUT, SELF-LOCKING
90185-16103-00
Unavailable
10
ARM, RELAY
2NV-2217A-00-00
Unavailable
11
BOLT
(90101-12634-00)
Unavailable
12
COVER, THRUST 2
26H-22129-00-00
Unavailable
14
WASHER (492)
90201-12535-00
Unavailable
16
COLLAR(1FN)
90387-123M4-00
Unavailable
17
ARM 1
(2NV-2217M-00-00)
Unavailable
18
ARM 2
2NV-2217N-00-00
Unavailable
19
BUSH(29K)
90386-20134-00
Unavailable
20
COVER, thrust 1
26H-22128-00-00
Unavailable
21
COLLAR
90387-144H4-00
Unavailable
22
WASHER
92990-14600-00
Unavailable
23
NUT, U(4JT)
95617-14100-00
Unavailable
24
BOLT
90101-14618-00
Unavailable
25
BOLT,HEXAGON
97027-08080-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
BEARING(47X)
93399-99919-00
Unavailable
28
OIL SEAL(47X)
93101-16131-00
Unavailable
29
CIRCLIP (23X)
93440-30113-00
Unavailable
30
COLLAR
90387-124L0-00
Unavailable
31
BOLT(1WG)
90101-10659-00
Unavailable
32
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
33
NUT, U
95614-10100-00
Unavailable
34
BUSH(29K)
90386-18136-00
Unavailable
35
OIL SEAL (2J5)
93109-18020-00
Unavailable
36
PLUG (4U5)
90338-24112-00
Unavailable
37
CASE, CHAIN
29L-22311-01-00
Unavailable
38
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
39
SEAL, GUARD
(51Y-22151-00-00)
Unavailable
40
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
41
WASHER, SPRING
92995-06100-00
Unavailable
42
WASHER, PLATE
90201-06380-00
Unavailable
