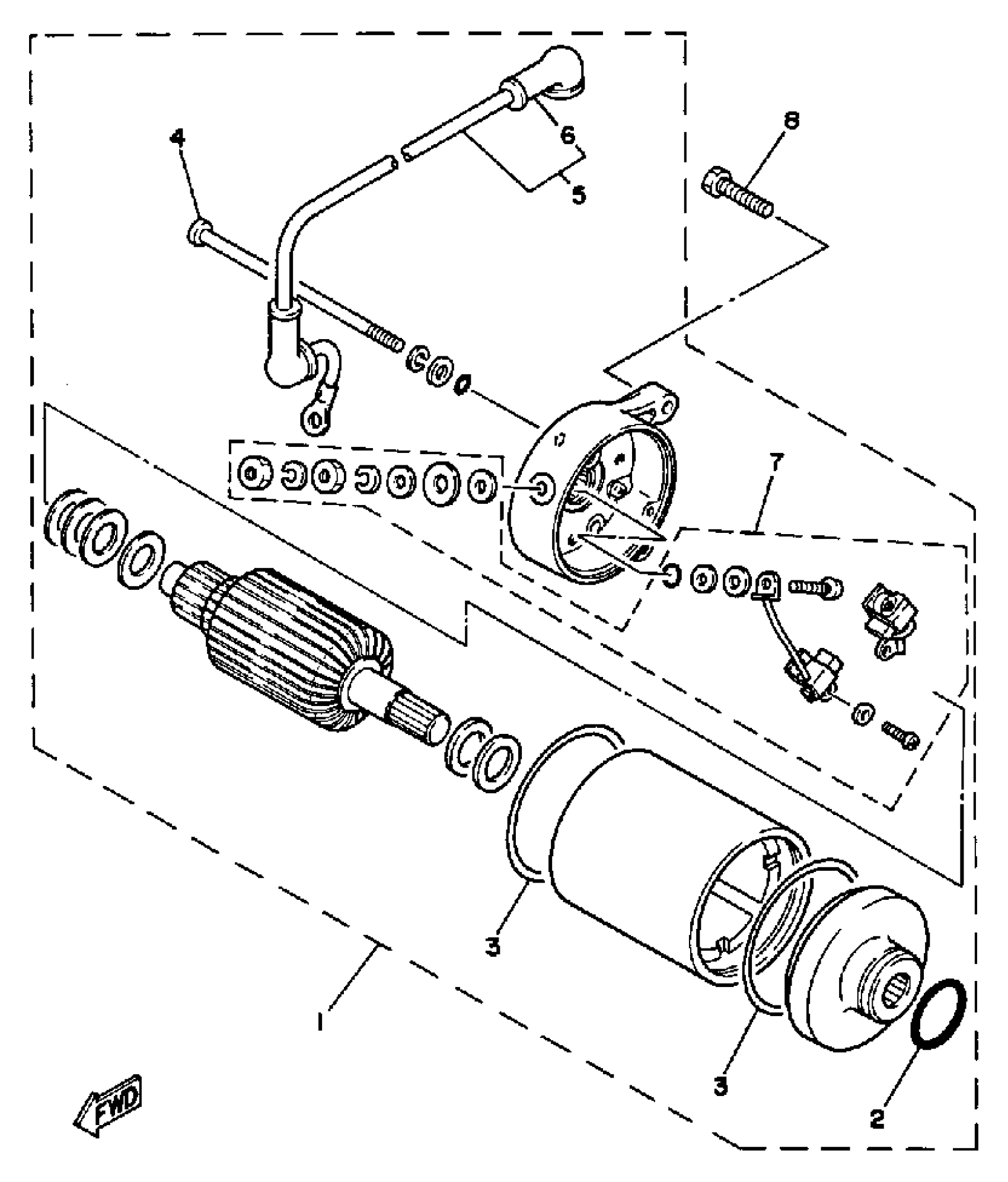

Yamaha SRX250TC (SRX250 CA) 1987 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSEMBLYASSY

51Y-81800-61-00

Unavailable

2

. O-RING

5H0-81847-01-00

Unavailable

3

GASKET

5H0-81844-01-00

Unavailable

4

BOLT

(12E-81826-00-00)

Unavailable

5

. WIRE, STARTER

22U-81815-00-00

Unavailable

6

.. CAP

5H0-81871-00-00

Unavailable

7

. REAR BRACKET ASSEMBLYASSY

51Y-81820-00-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable
