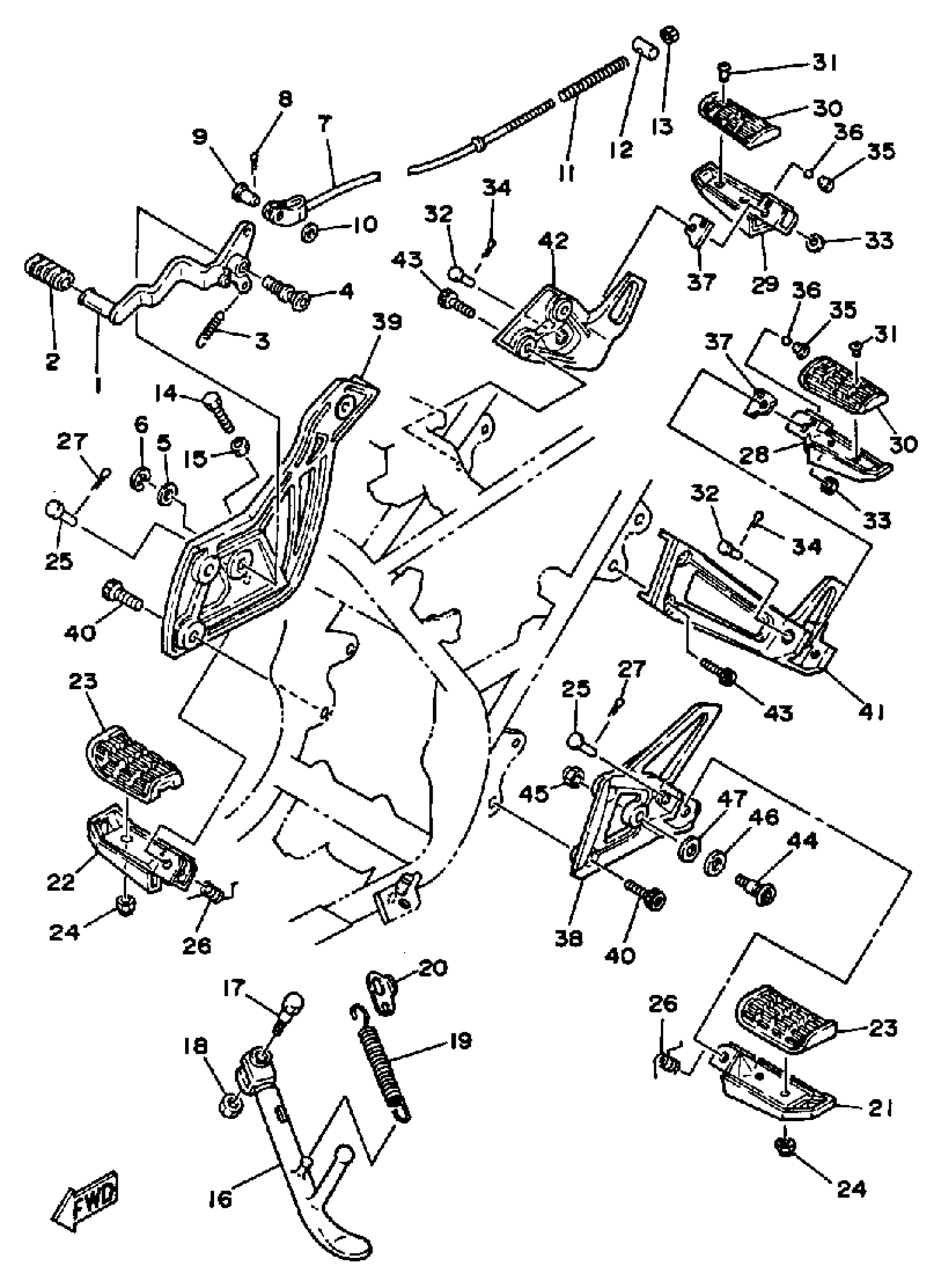

Yamaha SRX250TC (SRX250 CA) 1987 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

51Y-27211-00-93

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

SPRING, TENSION (2X4)

90506-20192-00

$7.49

4

SHAFT

51Y-27261-00-00

Unavailable

5

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

6

CIRCLIP

99080-07600-00

Unavailable

7

ROD, BRAKE

51Y-27231-00-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

PIN, CLEVIS (24X)

90240-06103-00

$7.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

PIN 1562723700

90249-12008-00

$8.49

13

NUT (25K)

90179-06411-00

$8.49

14

BOLT (3Y2)

90101-06478-00

$4.15

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

STAND, SIDE

2NV-27311-01-R4

Unavailable

17

BOLT

90109-10473-00

Unavailable

18

NUT, U

90185-10037-00

Unavailable

19

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

20

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

21

FOOTREST

33M-27451-10-00

Unavailable

22

FOOTREST

33M-27461-10-00

Unavailable

23

COVER, FOOTREST

22N-27413-00-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable

25

PIN, CLEVIS (565)

91701-08042-00

Unavailable

26

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

RR FOOTREST ASSEMBLY 1

29L-27430-00-00

Unavailable

29

RR FOOTREST ASSEMBLY 2

29L-27440-00-00

Unavailable

30

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

31

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

32

PIN, CLEVIS (1M1)

91701-06042-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

34

PIN, COTTER

91490-20025-00

$1.99

35

SPRING, COMPRESSION (29L)

90501-16761-00

Unavailable

36

BALL

93501-04011-00

Unavailable

37

WASHER, SPECIAL

33M-27437-00-00

Unavailable

38

BRACKET 2

51Y-27442-00-00

Unavailable

39

BRACKET 3

51Y-27443-00-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

41

BRACKET 4

51Y-2741L-00-00

Unavailable

42

BRACKET 5

(51Y-2742L-00-00)

Unavailable

43

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

44

BOLT

51Y-27434-00-00

Unavailable

45

NUT, U

95617-08100-00

Unavailable

46

WASHER, PLATE(51Y)

90201-120K4-00

Unavailable

47

WASHER, PLATE (3L7)

90201-08784-00

Unavailable
