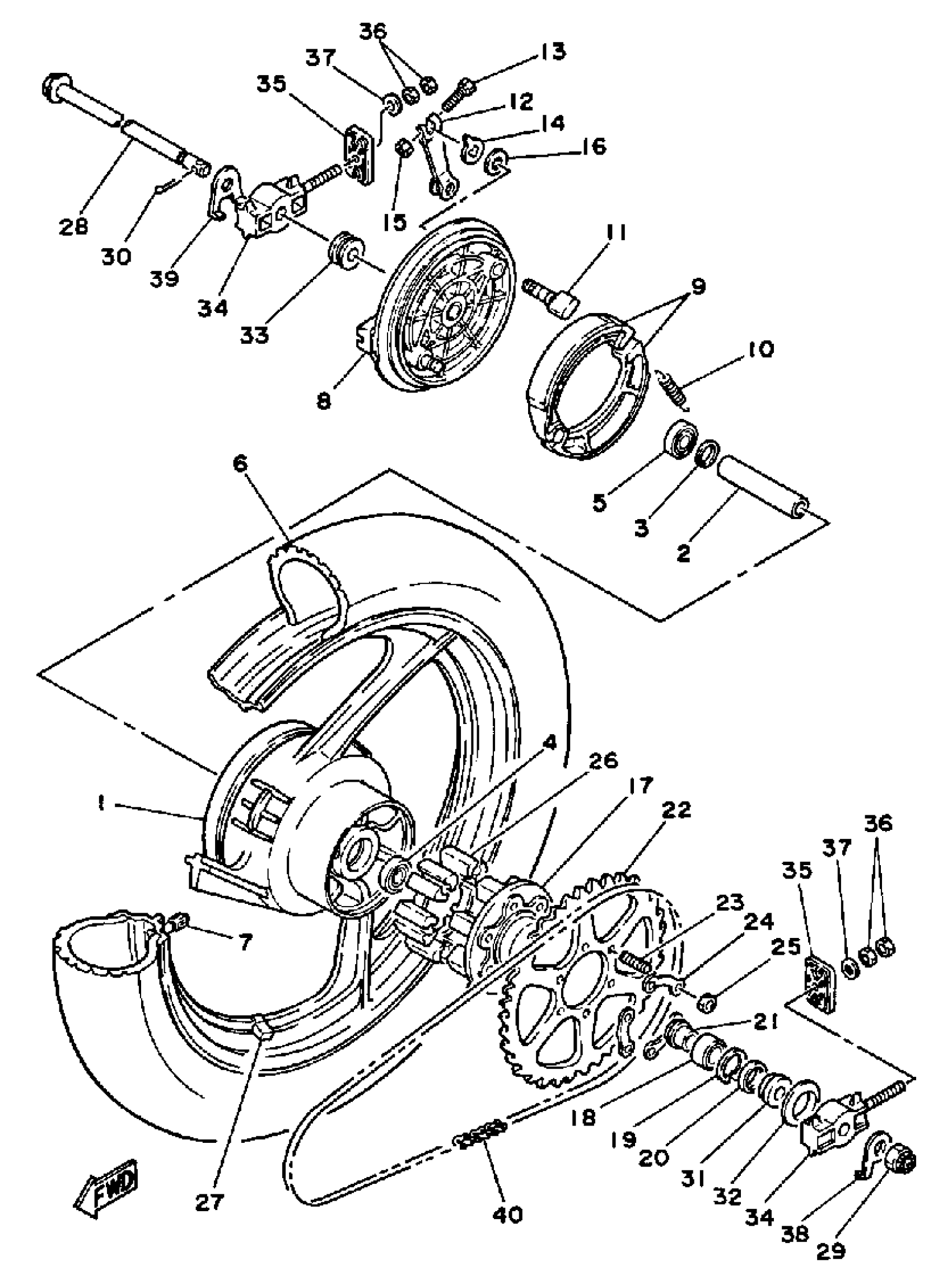

Yamaha SRX250TC (SRX250 CA) 1987 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

2NV-25338-00-FH

Unavailable

2

INACTIVE PART NUMBER

90560-15266-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING

93306-20205-00

$38.99

5

BEARING(3DL)

93306-20226-00

$38.99

6

100-90\18 565 BS (100/90-18 56S K325)

94110-185W1-00

Unavailable

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

PLATE, BRAKE SHOE

(51Y-25321-01-FH)

Unavailable

9

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

10

SPRING, TENSION 2462533300

90507-20002-00

$8.49

11

CAMSHAFT

5Y1-25151-00-00

Unavailable

12

LEVER, CAM SHAFT

1E7-25355-00-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

PLATE

3Y6-2533A-01-00

$5.49

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

17

CLUTCH, HUB

3Y1-25366-00-98

Unavailable

18

BEARING(1YW)

93306-20461-00

Unavailable

19

CIRCLIP(48Y)

99009-47500-00

Unavailable

20

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

21

COLLAR, WHEEL

51Y-25377-00-00

Unavailable

22

SPROCKET, DRVN 43TDRIVEN (43T)

51Y-25443-10-00

Unavailable

23

BOLT, STUD (483)

90116-08218-00

Unavailable

24

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

25

NUT (3Y2)

90170-08258-00

Unavailable

26

DAMPER

3Y1-25364-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

28

AXLE, WHEEL

(51L-25381-01-00)

Unavailable

29

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

30

PIN, COTTER

91490-30030-00

Unavailable

31

COLLAR, WHEEL

(51Y-25383-00-00)

Unavailable

32

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

33

COLLAR

90387-155L8-00

Unavailable

34

PULLER, CHAIN 1

51L-25388-01-00

Unavailable

35

END 1

51L-22174-00-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

PLATE, INDICATOR

51L-2533A-00-00

Unavailable

39

PLATE, INDICATOR 2

51L-2533E-00-00

Unavailable

40

CHAIN

9Y581-08105-00

Unavailable
