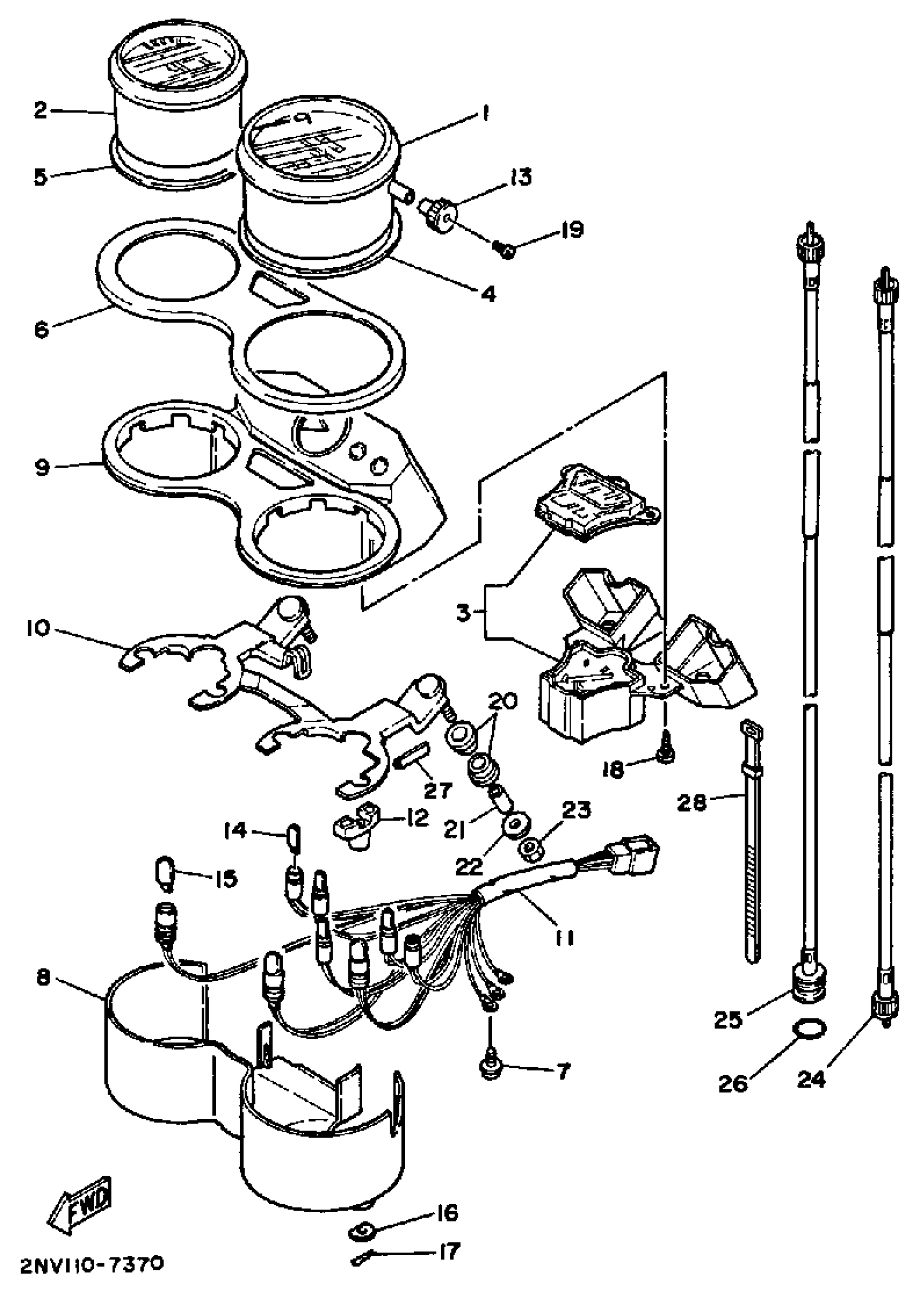

Yamaha SRX250TC (SRX250 CA) 1987 METER Diagram
#
1
SPEEDOMETER ASSEMBLY
1GM-83570-G0-00
Unavailable
2
TACHOMETER ASSEMBLY
2NV-83540-00-00
Unavailable
3
FUEL METER ASSEMBLY
(56K-85750-00-00)
Unavailable
4
DAMPER
51Y-83513-00-00
Unavailable
5
DAMPER
51Y-83541-00-00
Unavailable
6
PANEL,METER
3XL-83611-00-00
Unavailable
7
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
8
COVER, METER 2
51Y-83579-00-00
Unavailable
9
PILOT BOX, UPPER
51Y-83568-00-00
Unavailable
10
BRACKET, METER
2NV-83519-00-00
Unavailable
10
BRACKET, METER
51Y-83519-00-00
Unavailable
11
SOCKET CORD ASSEMBLY
2NV-83509-00-00
Unavailable
12
DAMPER
51Y-83523-00-00
Unavailable
13
KNOB, TRIP METER
1AE-83578-00-00
Unavailable
15
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
16
WASHER, SPECIAL
51Y-83524-00-00
Unavailable
17
CLIP (156-83525-00)
90468-10050-00
Unavailable
18
SCREW, TAPPING
90164-04005-00
Unavailable
19
SCREW, PAN HEAD (11H)
90157-02031-00
Unavailable
20
DAMPER
1JK-83541-00-00
Unavailable
21
COLLAR (877)
90387-06249-00
Unavailable
22
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
23
NUT(6TA)
95317-06600-00
Unavailable
24
SPEEDOMETER CABLE ASSY
3VP-83550-02-00
Unavailable
25
TACHOMETER CABLE ASSY
2A6-83560-00-00
Unavailable
26
O-RING (26H)
93210-14579-00
Unavailable
27
MOLE 2
50M-28346-50-00
Unavailable
28
BAND, SWITCH CORD
437-83936-11-00
Unavailable
