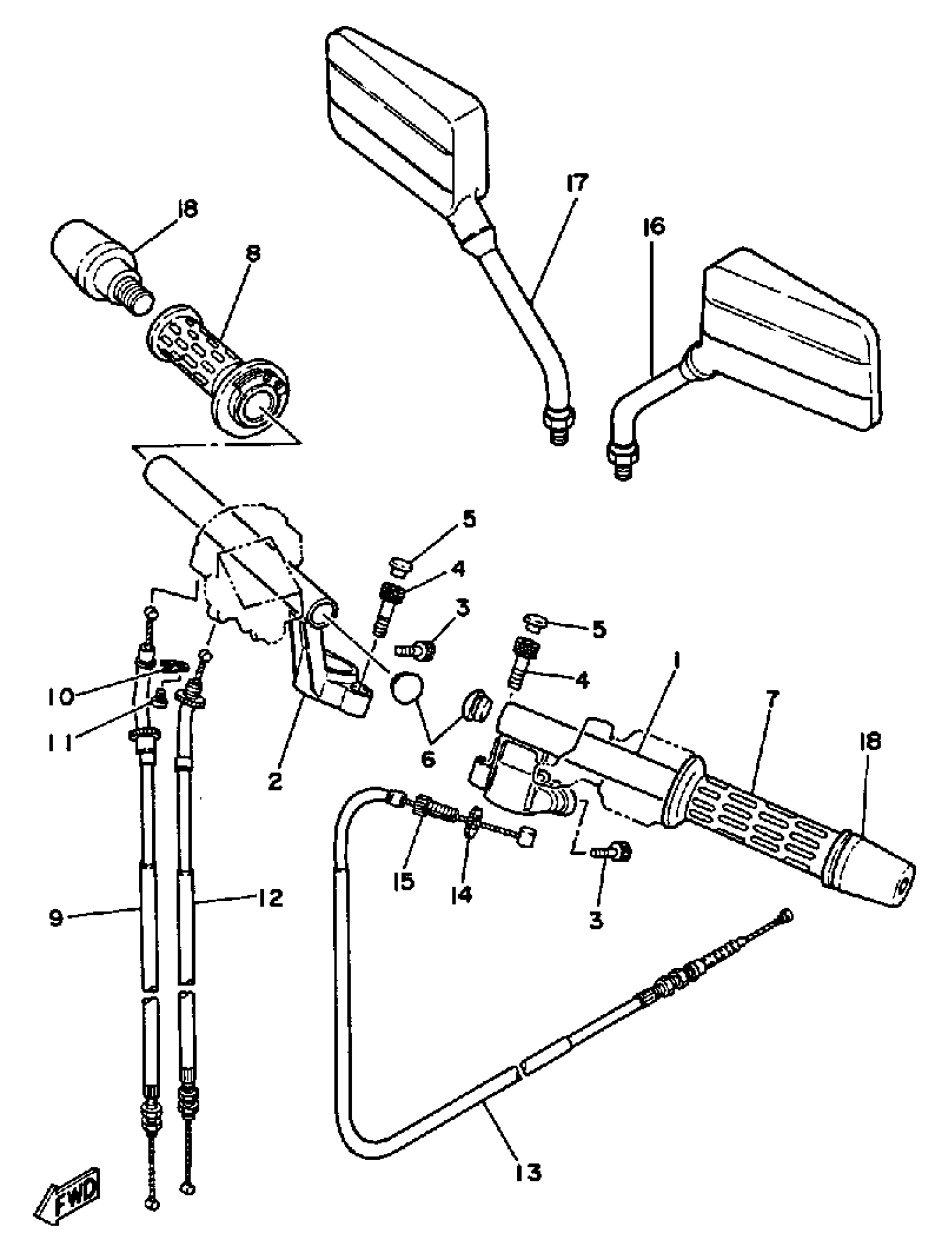

Yamaha SRX250TC (SRX250 CA) 1987 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR LH

51Y-26121-03-00

Unavailable

2

HANDLEBAR RH

51Y-26122-03-00

Unavailable

3

BOLT,SOCKET

91314-08025-00

$8.49

4

BOLT,SOCKET HEAD

91314-06020-00

$1.49

5

PLUG

90338-05010-00

$8.49

6

PLUG(47X)

90338-19166-00

$11.49

7

GRIP (L.H)

51Y-26241-00-00

Unavailable

8

GRIP ASSY

51Y-26240-00-00

Unavailable

9

CABLE, THROTTLE 1

51Y-26311-01-00

Unavailable

10

HOLDER

5H0-26393-00-00

$7.99

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

CABLE, THROTTLE 2

51Y-26312-01-00

Unavailable

13

CABLE, CLUTCH

51Y-26335-02-00

Unavailable

14

NUT

90179-08030-00

$5.49

15

BOLT

90123-08002-00

$10.49

16

MIRROR ASY

3XC-26280-00-00

Unavailable

17

MIRROR ASSY RH

3XC-26290-00-00

Unavailable

18

END, GRIP

51Y-26246-00-00

Unavailable
