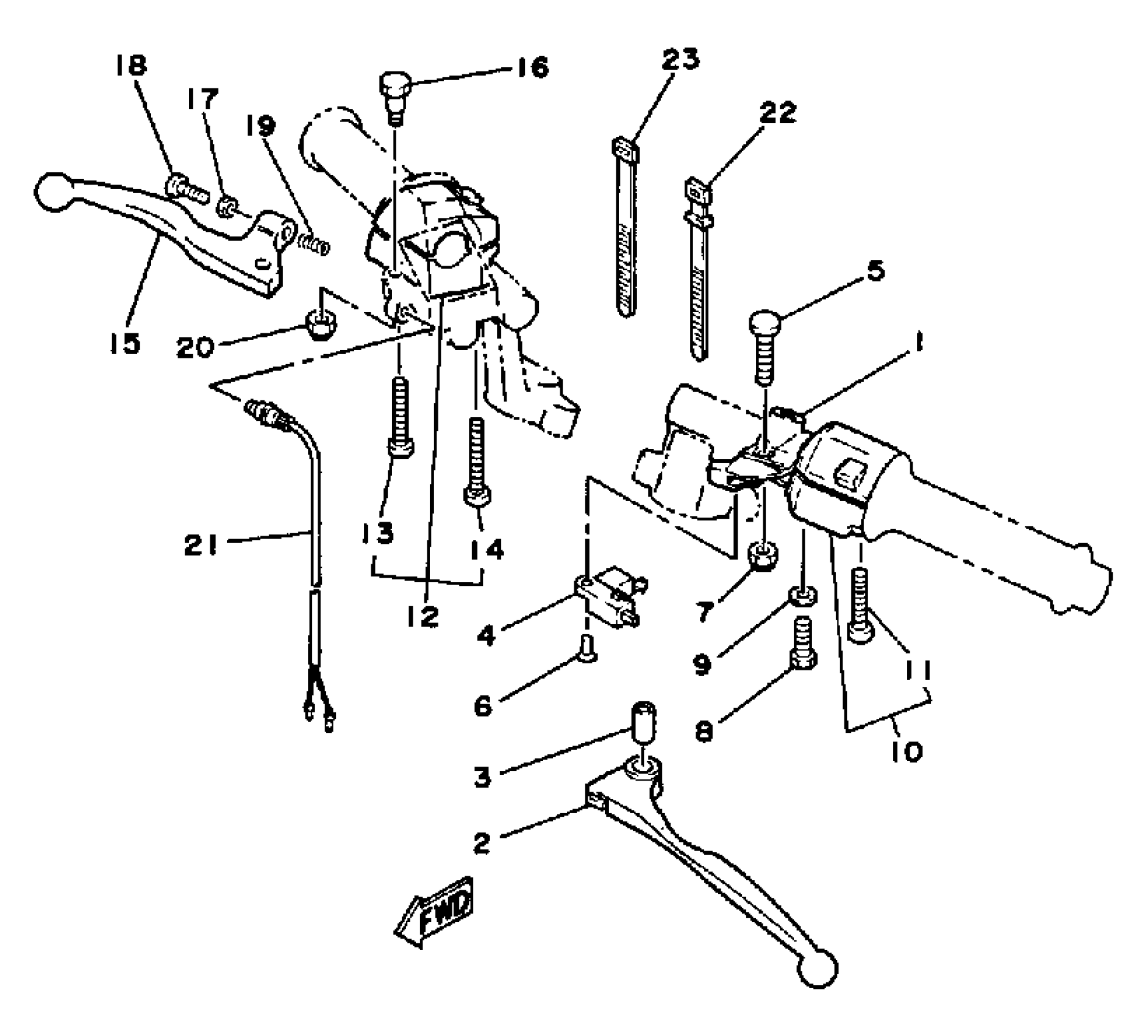

Yamaha SRX250TC (SRX250 CA) 1987 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

31A-82911-00-00

Unavailable

2

LEVER 1

31A-83912-01-00

$33.99

3

COLLAR, LEVER 1

31A-83913-00-00

$22.99

4

SWITCH

31A-82917-00-00

Unavailable

5

BOLT, LEVER

31A-83945-00-00

$5.49

6

SCREW, FLAT

98707-03008-00

$7.49

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

SWITCH, HANDLE 3

2AX-83973-00-00

Unavailable

11

SCREW, PAN

98507-05035-00

$8.49

12

SWITCH, HANDLE 2

1VE-83975-00-00

$254.99

13

SCREW, PAN

98507-05040-00

$8.49

14

SCREW, PAN

98507-05045-00

$9.49

15

LEVER 2

31A-83922-00-00

Unavailable

16

BOLT (4L0)

90109-06577-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

18

SCREW (2L0)

90149-06131-00

Unavailable

19

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

20

NUT, SELF-LOCKING

95617-06100-00

$8.49

21

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

BAND, SWITCH CORD

437-83936-11-00

Unavailable
