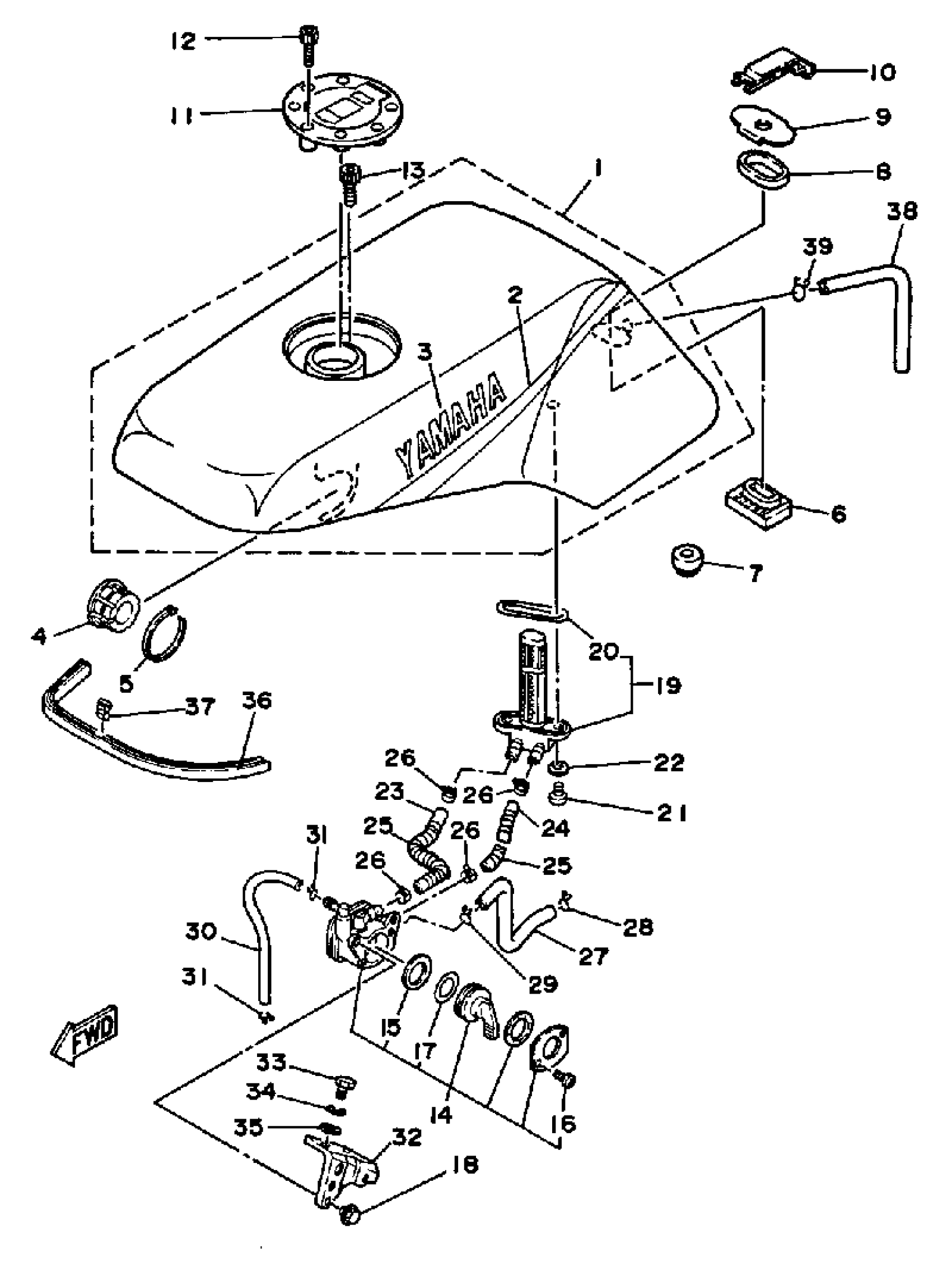

Yamaha SRX250TC (SRX250 CA) 1987 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2NV-24110-00-01

Unavailable

2

. GRAPHIC SET

2NV-24240-00-00

Unavailable

3

EMBLEM,YAMAHA(2NA)

99243-00140-00

Unavailable

4

DAMPER, LOCATING 1

46X-24181-00-00

Unavailable

5

CLAMP

5Y9-12491-00-00

$6.99

6

DAMPER, LOCATING 2

36Y-24182-00-00

Unavailable

7

DAMPER

(341-21746-00-00)

Unavailable

8

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

9

WASHER, SPECIAL

4K0-24186-00-00

Unavailable

11

CAP ASSY

4FM-24602-20-00

$300.99

12

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

13

BOLT, SOCKET

91314-05010-00

$2.55

14

FUEL COCK ASSY 1

51Y-24500-01-00

Unavailable

15

. VALVE

47X-24523-00-00

Unavailable

16

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

17

O-RING

2G2-24534-00-00

Unavailable

18

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

19

FILTER ASSEMBLY

47X-24560-00-00

Unavailable

20

O-RING

2G2-24512-00-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

PIPE, FUEL 1

51Y-24311-01-00

Unavailable

24

PIPE 3

51Y-24313-01-00

Unavailable

25

SPRING

90501-104J3-00

Unavailable

26

CLIP (5K4)

90467-14057-00

Unavailable

27

PIPE 2 (L90)

51Y-24312-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

HOSE

90445-09531-00

Unavailable

31

CLIP 101235600

90467-08003-00

Unavailable

32

STAY

(51Y-2452E-01-00)

Unavailable

33

BOLT, HEXAGON

97017-08016-00

Unavailable

34

WASHER(JN5)

92907-08100-00

Unavailable

35

WASHER(6TA)

92907-08600-00

Unavailable

36

MOLD, FUEL TANK

(51Y-24188-00-00)

Unavailable

37

CLIP

90468-03063-00

Unavailable

38

PIPE 5

(1JK-24315-00-00)

Unavailable

39

CLIP

90467-090A2-00

Unavailable
