Description

Price

1

WHEEL, CAST FRONT

2NV-25168-00-FH

Unavailable

2

COLLAR (4L0)

90387-123A9-00

Unavailable

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BEARING

93306-30102-00

$39.99

5

OIL SEAL (45X56X6)

93105-45017-00

$14.99

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL(3TU)

93106-20033-00

$13.49

9

90-90/16 48S BS (90/90-16 48SK325A)

94109-163R3-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

GEAR UNIT ASSY

2L4-25190-20-00

Unavailable

13

AXLE, WHEEL

51Y-25181-00-00

Unavailable

14

COLLAR (40E)

90387-127E0-00

Unavailable

15

COVER HUB DUST

481-25118-01-00

Unavailable

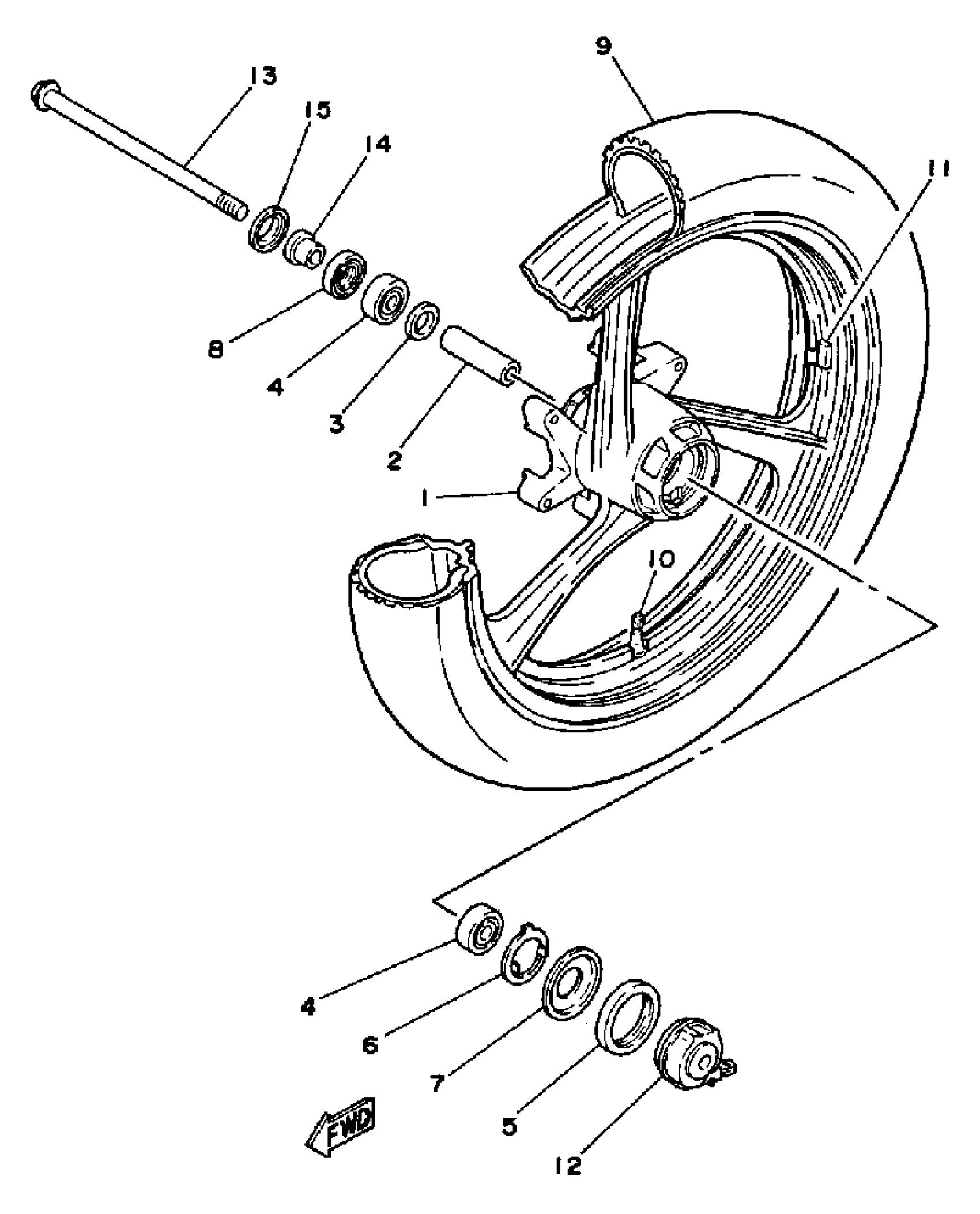

Yamaha SRX250TC (SRX250 CA) 1987 FRONT WHEEL Diagram

WHEEL, CAST FRONT

COLLAR (4L0)

FLANGE, SPACER

BEARING

OIL SEAL (45X56X6)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL(3TU)

90-90/16 48S BS (90/90-16 48SK325A)

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSY

AXLE, WHEEL

COLLAR (40E)

COVER HUB DUST
