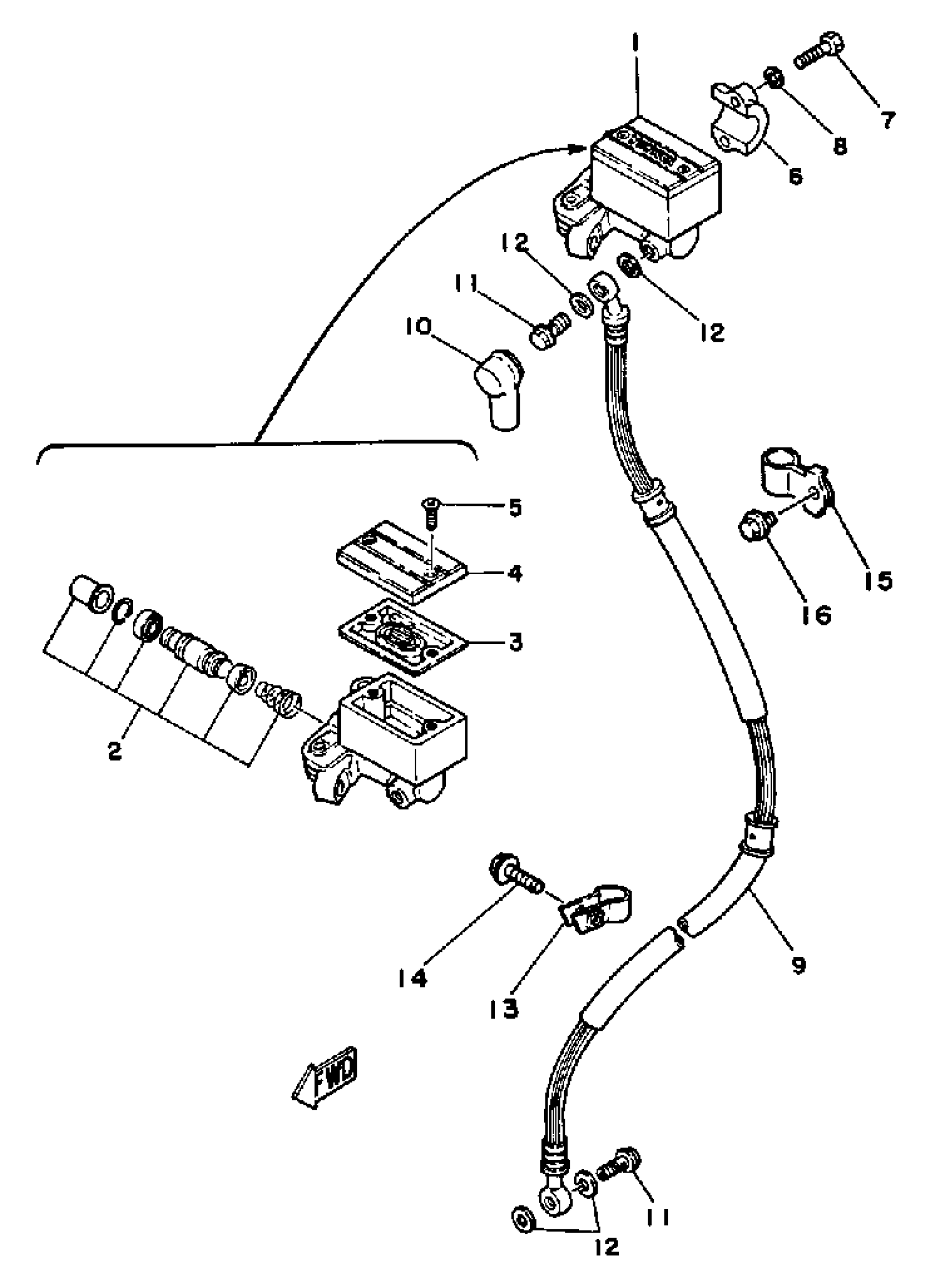

Yamaha SRX250TC (SRX250 CA) 1987 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$268.99

CYLINDER KIT, MASTER

23L-W0041-00-00

$123.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

HOSE, BRAKE 1

51Y-25872-01-00

Unavailable

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRKE HOSE 2

(2R8-25876-00-00)

Unavailable

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

CLAMP 1

90461-08031-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable
