- SRX250TC (SRX250 CA) 1987
FRONT FORK

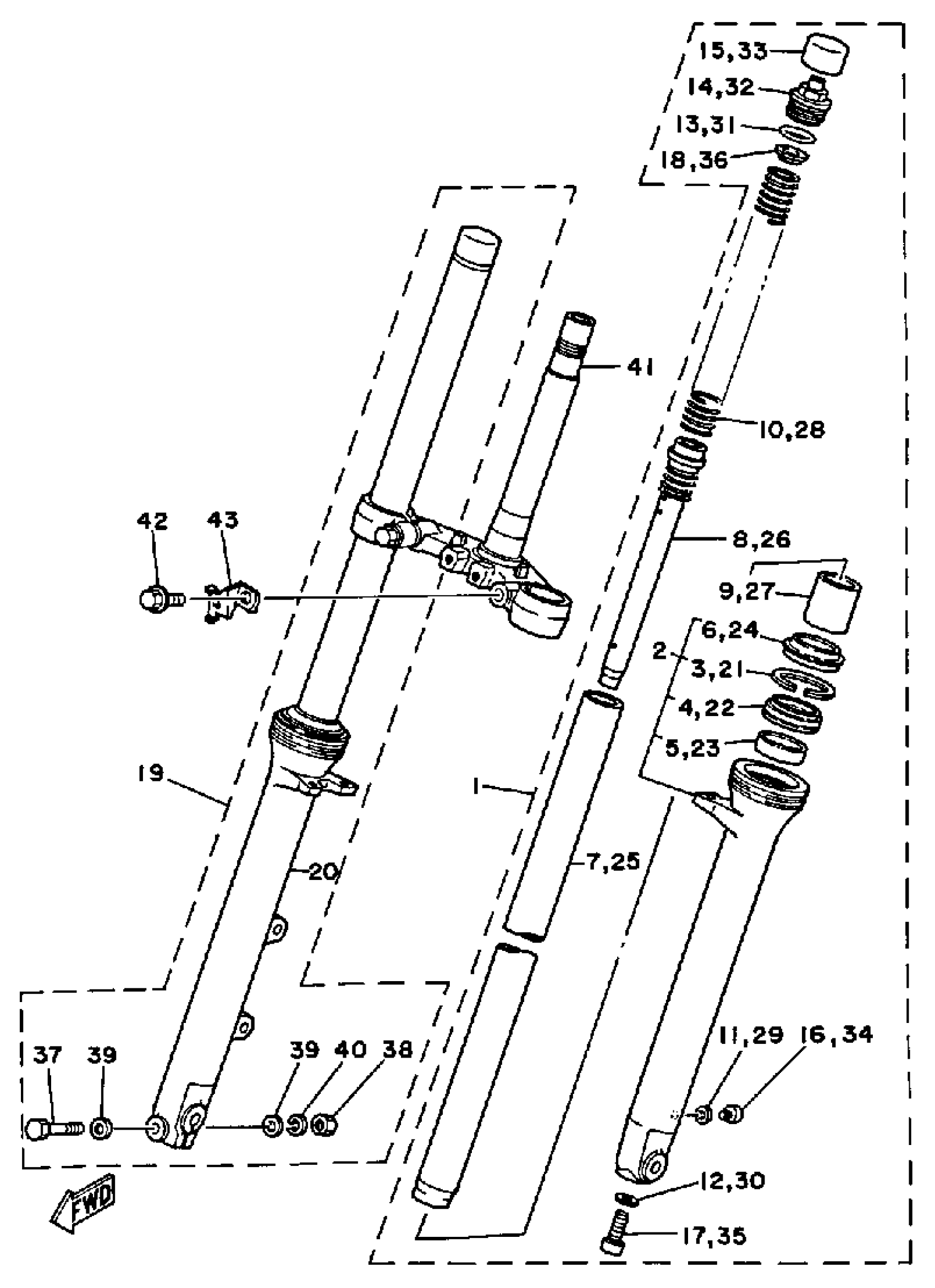

Yamaha SRX250TC (SRX250 CA) 1987 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(52E-23102-01-00)
Unavailable
2
TUBE, OUTER 1
(52E-23126-01-00)
Unavailable
7
INNER TUBE COMP.1
51Y-23110-00-93
Unavailable
8
CYLINDER, FRTFRK
(51Y-23170-00-00)
Unavailable
10
SPRING, FRONT FORK
(51Y-23141-00-00)
Unavailable
14
. BOLT, CAP
51Y-23111-00-00
Unavailable
15
. CAP, FRONT FORK
51Y-23168-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
19
FRONT FORK ASSEMBLY R
(52E-23103-01-00)
Unavailable
20
. TUBE, OUTER 2
52E-23136-01-00
Unavailable
25
INNER TUBE COMP.1
51Y-23110-00-93
Unavailable
26
CYLINDER, FRTFRK
(51Y-23170-00-00)
Unavailable
28
SPRING, FRONT FORK
(51Y-23141-00-00)
Unavailable
32
. BOLT, CAP
51Y-23111-00-00
Unavailable
33
. CAP, FRONT FORK
51Y-23168-00-00
Unavailable
34
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
36
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
37
. BOLT, AXLE HOLDER
1UJ-23128-00-00
Unavailable
38
NUT(6L2)
95333-08600-00
Unavailable
39
.. WASHER, PLATE
92990-08600-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
UNDER BRACKETCOMP
51Y-23340-10-00
Unavailable
42
BOLT, AXLE HOLDER
(51Y-23128-00-00)
Unavailable
43
STAY, HORN
(51Y-83378-00-00)
Unavailable
