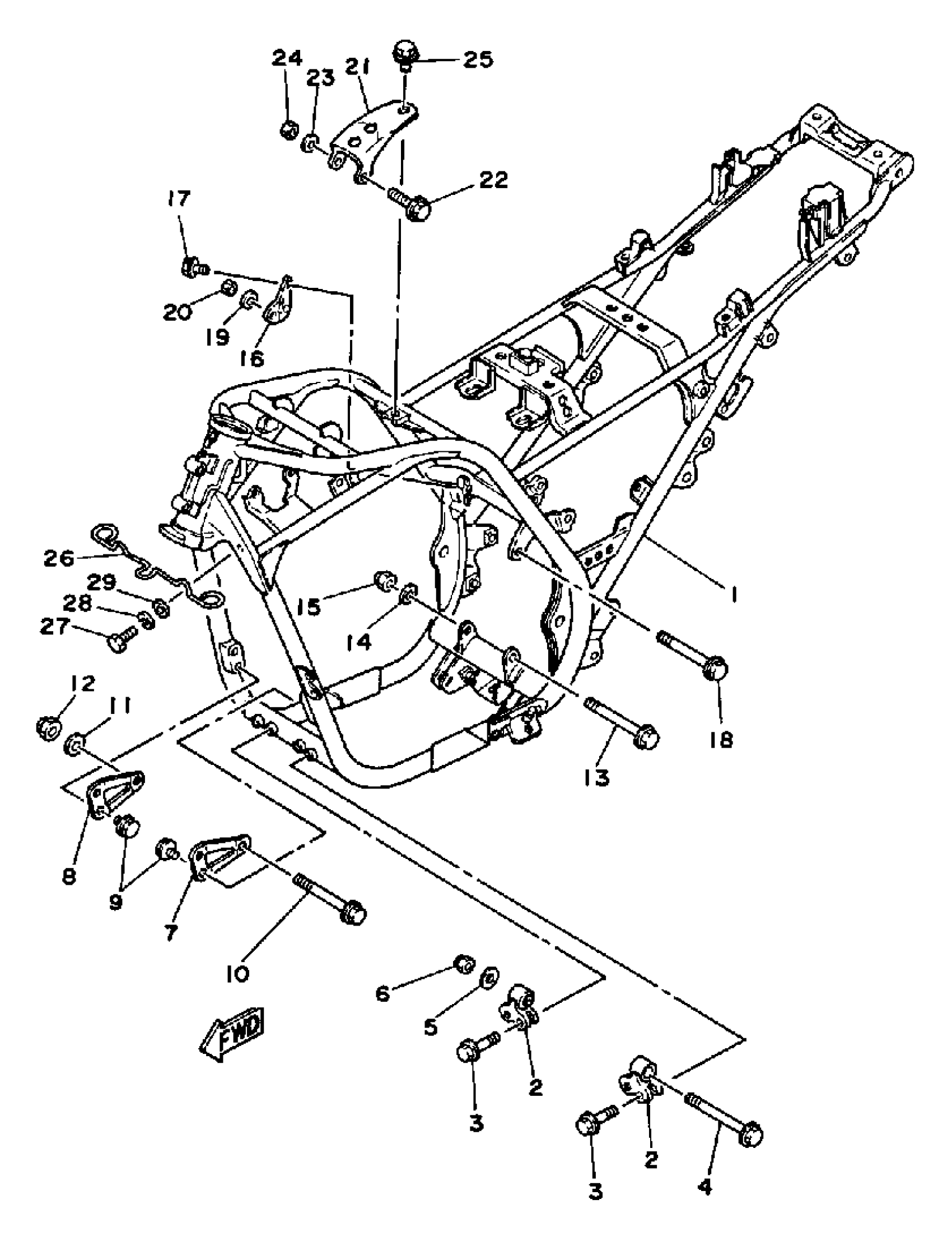

Yamaha SRX250TC (SRX250 CA) 1987 FRAME Diagram
#
Description
Price
1
FRAME
2NV-21110-00-FH
Unavailable
2
STAY, ENGINE 2
(51Y-21315-02-00)
Unavailable
7
STAY, ENGINE 3
(51Y-21316-02-00)
Unavailable
8
STAY, ENGINE 4
(51Y-21317-02-00)
Unavailable
9
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
13
BOLT,WASHER BASED
90105-08465-00
Unavailable
16
STAY, ENGINE 5
(51Y-21318-00-00)
Unavailable
17
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
18
BOLT, FLANGE
90105-08094-00
Unavailable
21
STAY, ENGINE 1
(51Y-21314-02-00)
Unavailable
22
BOLT, FLANGE
95817-08060-00
Unavailable
25
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
26
GUIDE, CABLE
(2NW-21288-00-00)
Unavailable
26
GUIDE, CABLE
(51Y-21288-00-00)
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
