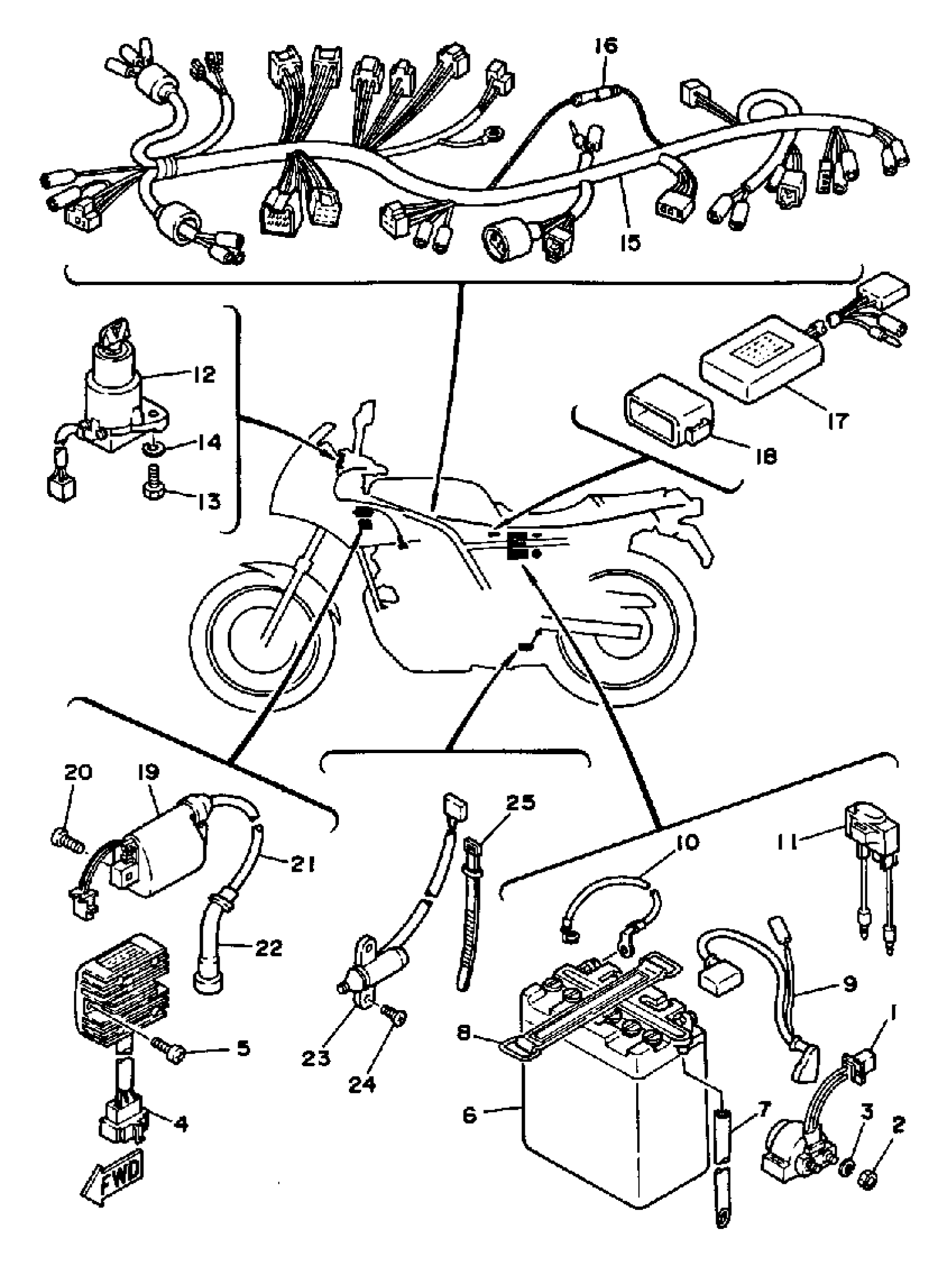

Yamaha SRX250TC (SRX250 CA) 1987 ELECTRICAL 1 Diagram

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

NUT(650)

95380-06700-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

RECTIFIER & REGULATOR ASSY

2J2-81960-A1-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

HOSE (L1500)

90445-084J0-00

$18.99

BAND, BATTERY

1E6-82131-00-00

$27.99

WIRE, PLUS LEAD

51Y-82115-00-00

Unavailable

WIRE, MINUS LEAD

89H-82116-00-00

Unavailable

CIRCUIT BRKR.ASSEMBLYASSY

51Y-82180-00-00

Unavailable

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

WIRE HARNESS ASSEMBLY

(2NV-82590-00-00)

Unavailable

DIODE ASSY

517-81980-A0-00

Unavailable

IGNITOR UNIT ASSEMBLY 1

2NV-82305-10-00

Unavailable

BAND

(51Y-85546-00-00)

Unavailable

IGNITION COIL ASSY

25G-82310-10-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

PLUG CAP ASSY

4VW-82370-00-00

Unavailable

SWICH, SIDE STAND

5Y1-82566-00-00

Unavailable

SCREW, FLAT

98707-05016-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable
