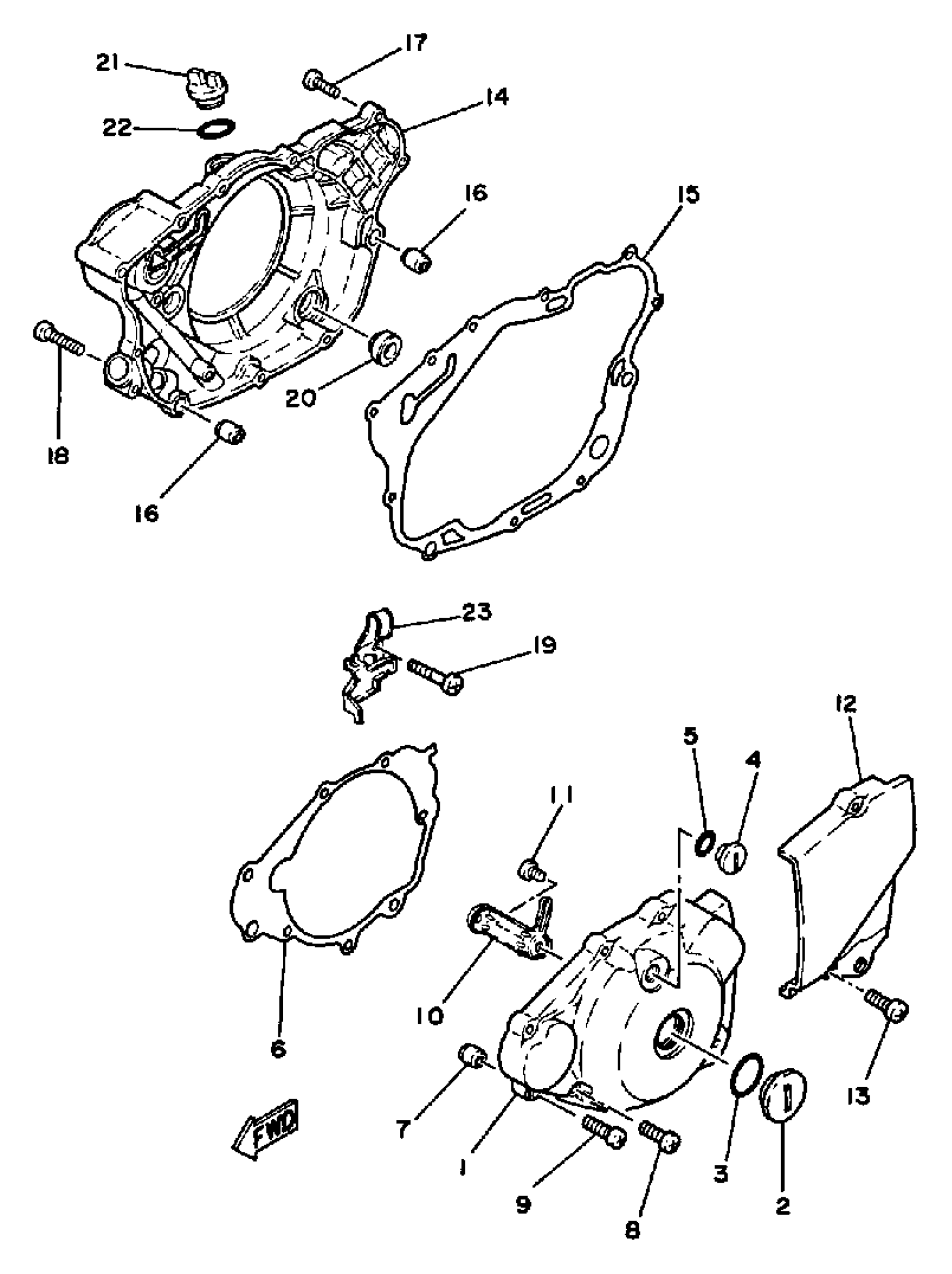

Yamaha SRX250TC (SRX250 CA) 1987 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

51Y-15411-01-00

Unavailable

2

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRCS COVER

51Y-15451-10-00

Unavailable

7

PIN, DOWEL

99530-12016-00

$4.89

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06035-00

$8.49

10

CLAMP

90462-06146-00

Unavailable

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

COVER, CRANKCASE R

51Y-15421-00-00

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

14

COVER, CRANKCASE 3

51Y-15431-01-00

Unavailable

15

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$24.99

16

PIN, DOWEL

99530-12016-00

$4.89

17

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

18

SCREW, PAN

98507-06035-00

$8.49

19

SCREW, PAN

98507-06040-00

Unavailable

20

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

21

PLUG, OIL

3Y1-15363-10-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

CLAMP

90465-08060-00

Unavailable
