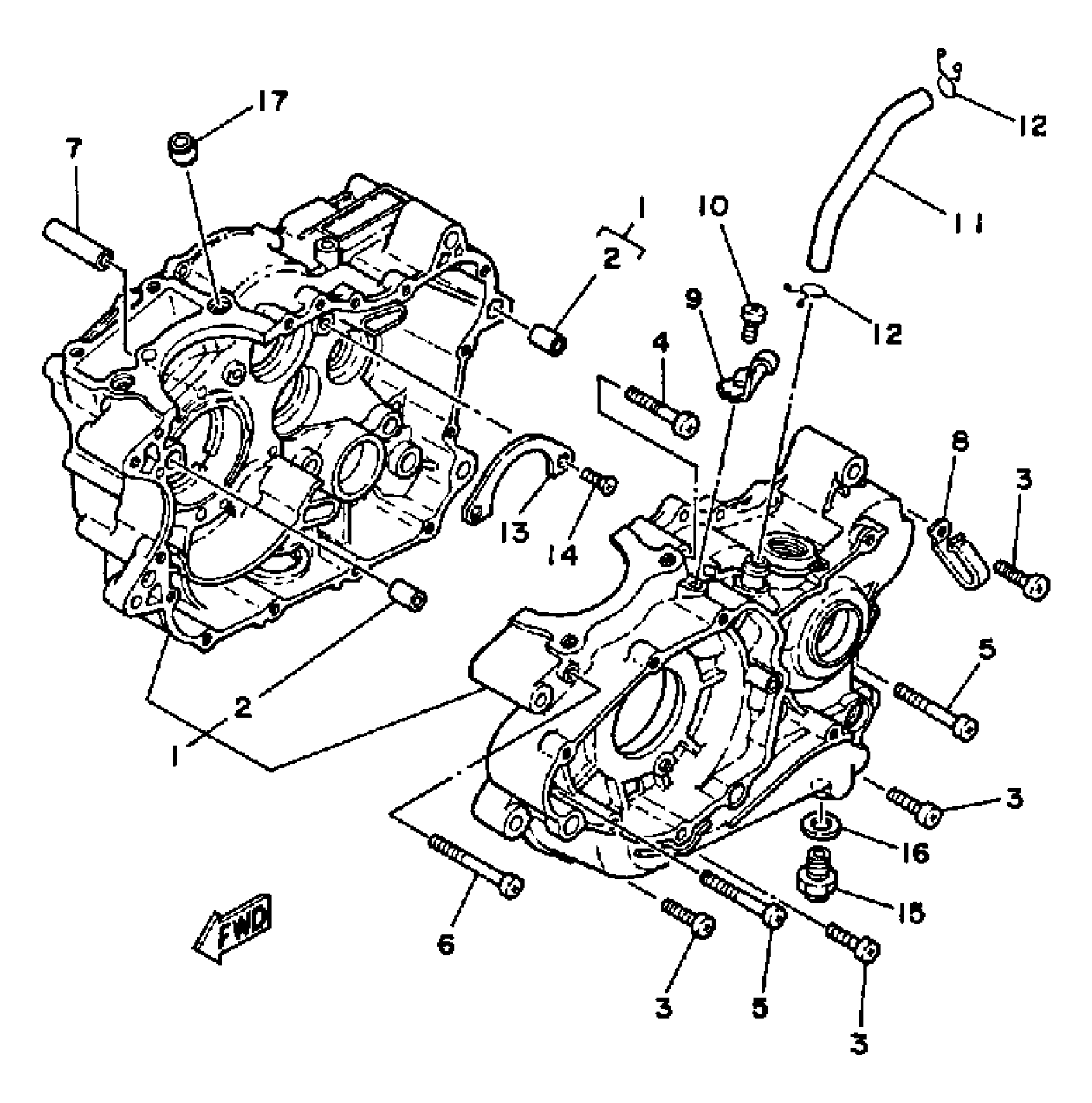

Yamaha SRX250TC (SRX250 CA) 1987 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSEMBLY
51Y-15100-04-00
Unavailable
3
SCREW, PAN
98517-06030-00
Unavailable
7
TUBE, PIPING
90441-06004-00
Unavailable
8
CLAMP(51Y)
90465-08277-00
Unavailable
9
HOLDER, CLUTCH CABLE
51Y-15441-00-00
Unavailable
11
PIPE, BREATHER 1
51Y-11166-00-00
Unavailable
13
PLATE, BEARING COVER
30X-15383-00-00
Unavailable
16
GASKET
214-11198-01-00
Unavailable
17
PIN, DOWEL
99530-14016-00
Unavailable
