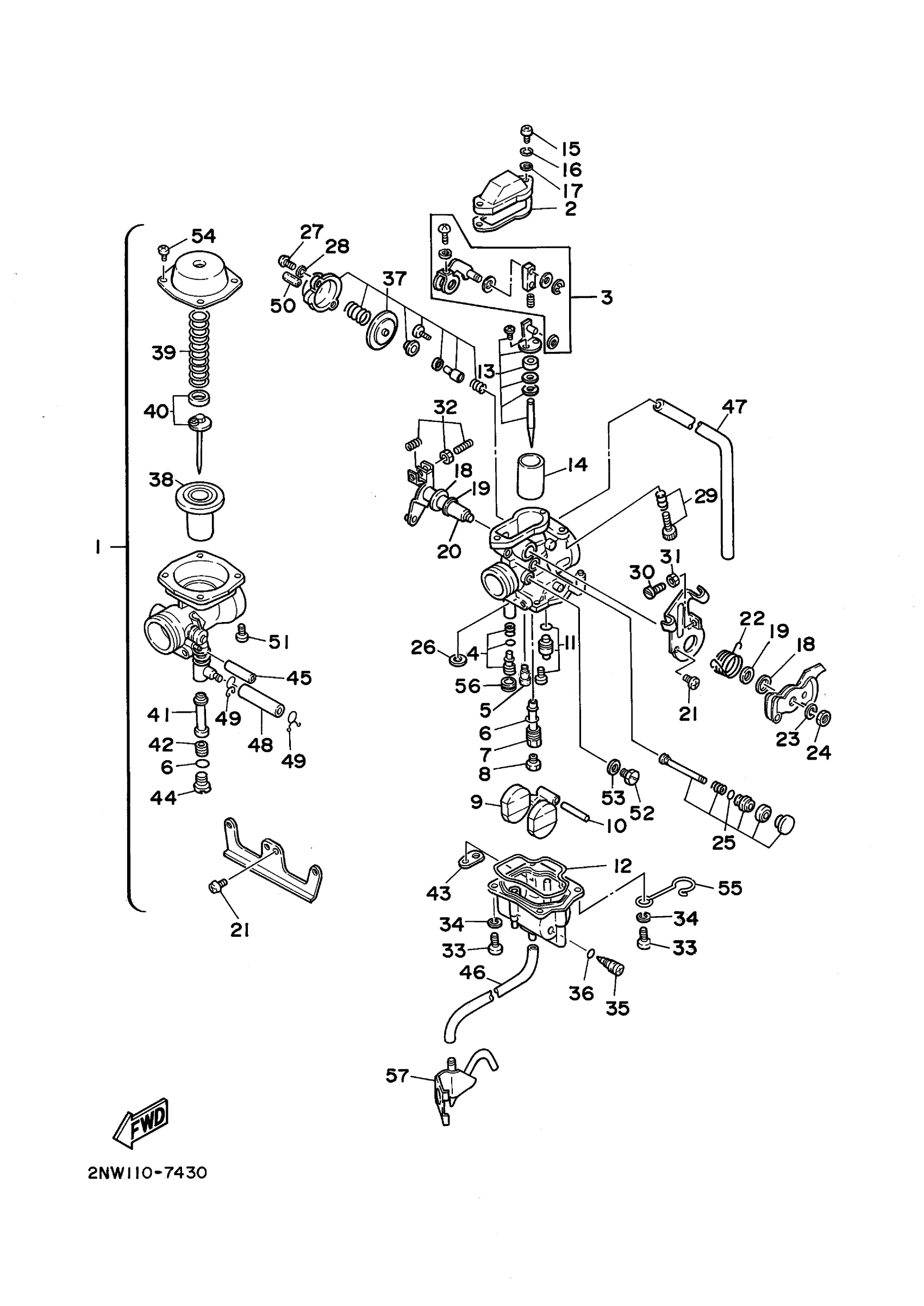

Yamaha SRX250TC (SRX250 CA) 1987 CARBURETOR SRX250TC Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2NW-14301-00-00)

Unavailable

2

GASKET

30X-14198-00-00

$16.49

3

BRACKET 1

1LN-14291-00-00

Unavailable

4

PILOT SCREW SET

51Y-14105-00-00

$12.99

5

JET, PILOT (#38)

43F-14342-19-00

$32.99

6

GASKET

360-24512-00-00

$9.99

7

. NOZZLE, MAIN

51Y-14341-00-00

Unavailable

8

JET, MAIN (#122) (85L)

288-14355-61-00

Unavailable

9

FLOAT

25N-14385-00-00

Unavailable

10

. PIN, FLOAT

6E5-14386-01-00

Unavailable

11

NEEDLE VALVE SET

2JN-14107-00-00

$38.99

12

GASKET, FLOAT CHAMBER

30X-14384-00-00

$25.99

13

NEEDLE SET

(2NV-1490J-10-00)

Unavailable

14

VALVE, THROTTLE 1

(51Y-14312-35-00)

Unavailable

15

SCREW, PAN HEAD

98517-04016-00

$8.49

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

. WASHER, PLAIN

5Y1-14357-00-00

Unavailable

19

O-RING

5Y1-14572-00-00

Unavailable

20

. THROTTLE SHAFT ASSEMBLYASSY

2NV-14930-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

. SPRING, THROTTLE VALVE

30X-14131-00-00

Unavailable

23

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

24

. NUT

5Y1-14358-00-00

Unavailable

25

PLUNGER, STARTER

51Y-14371-01-00

Unavailable

26

GASKET

5Y1-14536-00-00

Unavailable

27

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

28

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

29

. THROTTLE SCREW SET

3WP-14103-00-00

Unavailable

30

. SCREW

30X-14216-00-00

Unavailable

31

NUT

30X-14358-00-00

Unavailable

32

. STOP SCREW SET

30X-1490K-00-00

Unavailable

33

SCREW, PAN HEAD

98511-04012-00

Unavailable

34

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

35

PLUG, SCREW

5Y1-14115-00-00

Unavailable

36

O-RING

5Y1-14397-00-00

Unavailable

37

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable

38

. VALVE ASSEMBLY

30X-14340-01-00

Unavailable

39

. SPRING

30X-14286-00-00

Unavailable

40

. NEEDLE SET

2NV-1490J-00-00

Unavailable

41

NOZZLE, MAIN 2

(2NV-14355-00-00)

Unavailable

42

. JET, MAIN (#80)

30X-14343-40-00

Unavailable

43

PLATE

5Y1-14146-00-00

Unavailable

44

. VALVE, DRAIN (30X-14394-00)

1RG-14394-00-00

Unavailable

45

PIPE

5Y1-14349-00-00

Unavailable

46

PIPE (56R-14396-00-00)

2NW-14396-00-00

Unavailable

47

PIPE

(51Y-14197-00-00)

Unavailable

48

PIPE

30X-14148-00-00

Unavailable

49

CLIP

5Y1-14159-00-00

Unavailable

50

. PIPE

30X-14149-00-00

Unavailable

51

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

52

SCREW

5H0-14991-00-00

Unavailable

53

GASKET

5H0-14126-00-00

Unavailable

54

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

55

PLATE

42U-14146-00-00

Unavailable

56

. CAP

5Y1-14118-00-00

Unavailable

57

PIPE

(2NW-14193-00-00)

Unavailable
