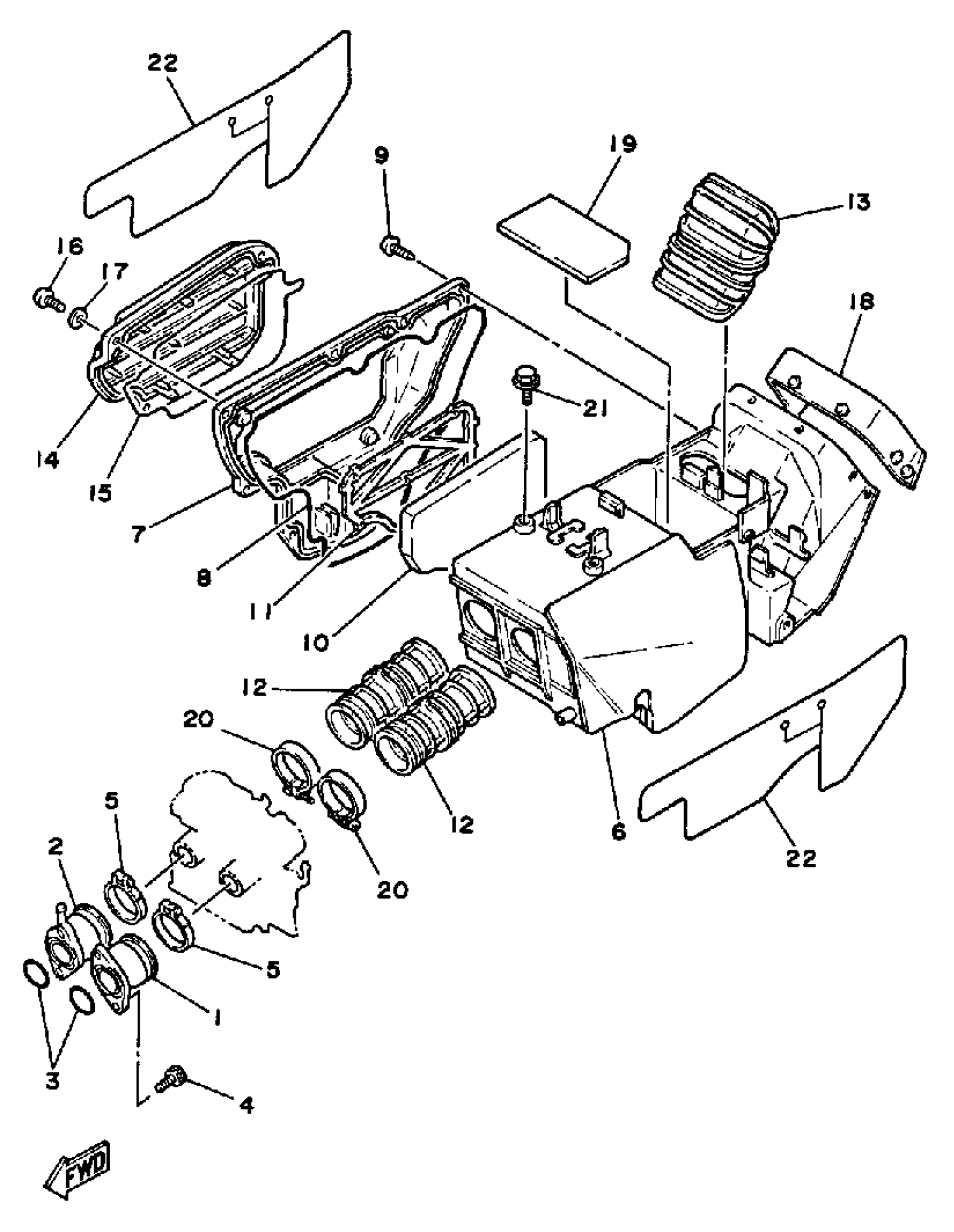

Yamaha SRX250TC (SRX250 CA) 1987 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

51Y-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

51Y-13596-01-00

Unavailable

3

O-RING (30X)

93210-30611-00

$13.49

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

BAND

4TR-13474-02-00

$11.99

6

AIR CLNR CASE ASSEMBLYASSY

51Y-14401-00-00

Unavailable

7

CAP, CLEANER CASE 1

51Y-14412-00-00

Unavailable

8

SEAL

51Y-14462-00-00

$18.49

9

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

10

ELEMENT, AIR CLEANER

51Y-14451-00-00

$13.49

11

GUIDE, ELEMENT

51Y-14458-00-00

Unavailable

12

JOINT, AIR CLNR 1

51Y-14453-00-00

Unavailable

13

DUCT

51Y-14437-00-00

Unavailable

14

CAP, CLEANER CASE 2

51Y-14422-00-00

Unavailable

15

SEAL

51Y-14462-00-00

$18.49

16

SCREW, PAN

98517-05012-00

Unavailable

17

WASHER(1RW)

92907-05600-00

Unavailable

18

FLAP

(51Y-21621-00-00)

Unavailable

19

SEAT, BATTERY

51Y-82122-00-00

Unavailable

20

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

SEAL 1

51Y-21732-00-00

Unavailable
