2016 Yamaha SRX120 (SRX120GL) Intake Diagram

← All diagrams

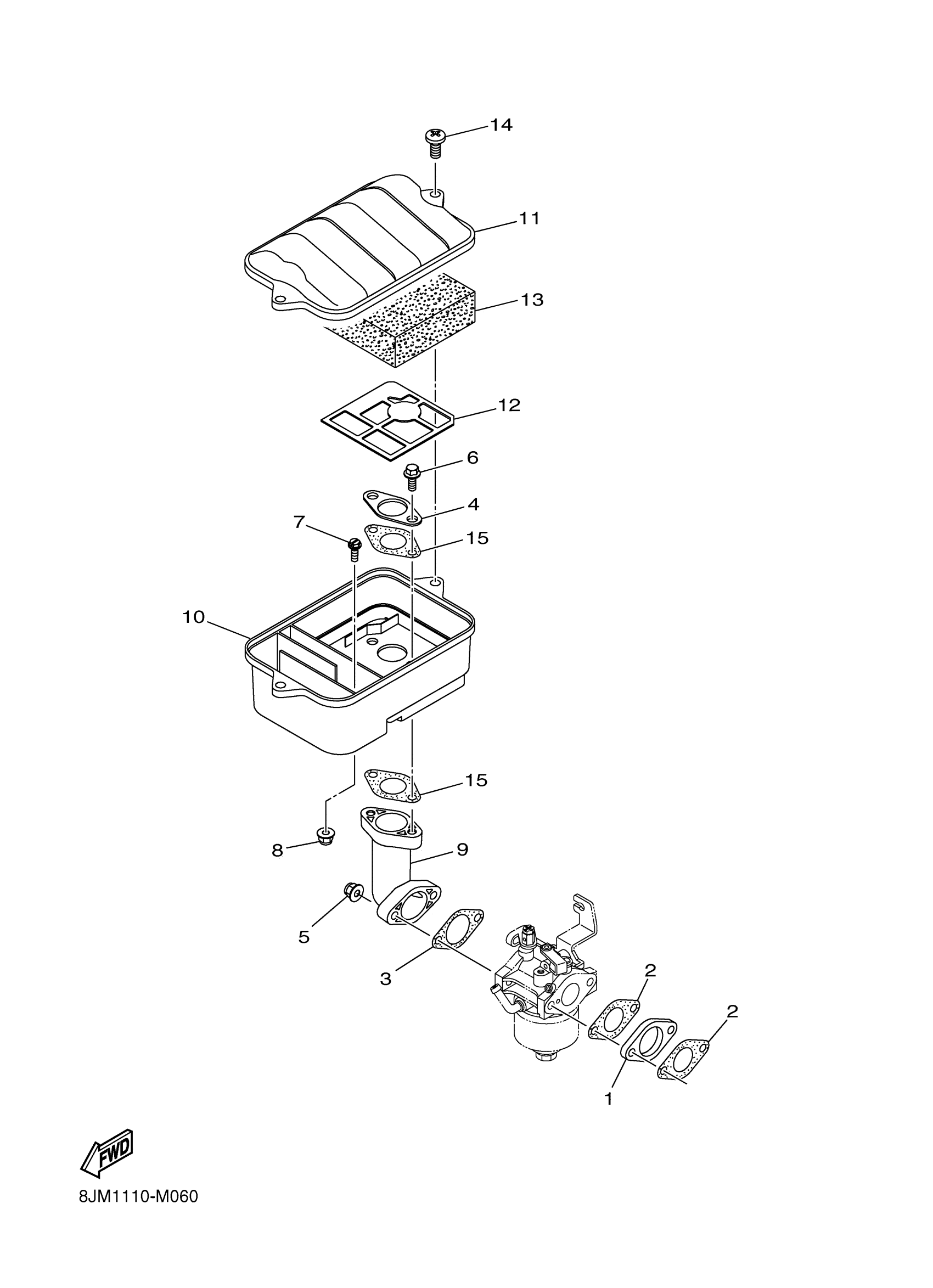

Find the part on the Intake diagram for your 2016 Yamaha SRX120 (SRX120GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SRX120 (SRX120GL) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 2

7CL-E3596-00-00

1

$5.97

In stock

2

GASKET

7CL-E3557-01-00

1

$4.06

In stock

3

GASKET

7CN-E3567-01-00

1

$2.75

In stock

4

PLATE

7CN-E4477-00-00

—

$8.82

In stock

5

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

6

—

$1.54

In stock

7

BOLT, FLANGE M8-1.25X25

8JM-RA102-00-00

1
Out of stock

8

1

$0.83

In stock

9

INTAKE, TUBE

8JM-E3536-00-00

—

$25.11

In stock

10

CASE, AIR CLEANER 1

7CN-E4411-00-00

1

$48.38

In stock

11

CAP, CLEANER CASE 1

7CN-E4412-00-00

1

$15.69

In stock

12

PLATE,ELEMENT FITTING

7CN-E4468-01-00

1

$2.65

In stock

13

ELEMENT, AIR CLEANE

7CN-E4451-00-00

1

$10.78

In stock

14

SCREW, BINDING (31K)

90154-06014-00

1

$7.68

In stock

15

GASKET

7CN-E3567-01-00

1

$2.75

In stock
